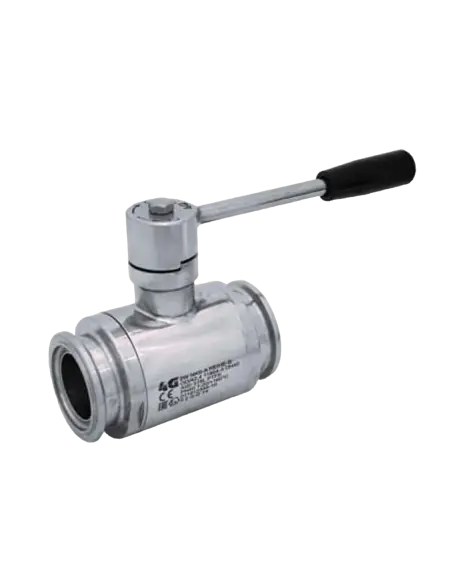

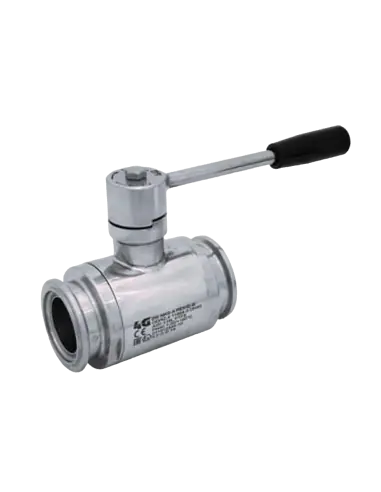

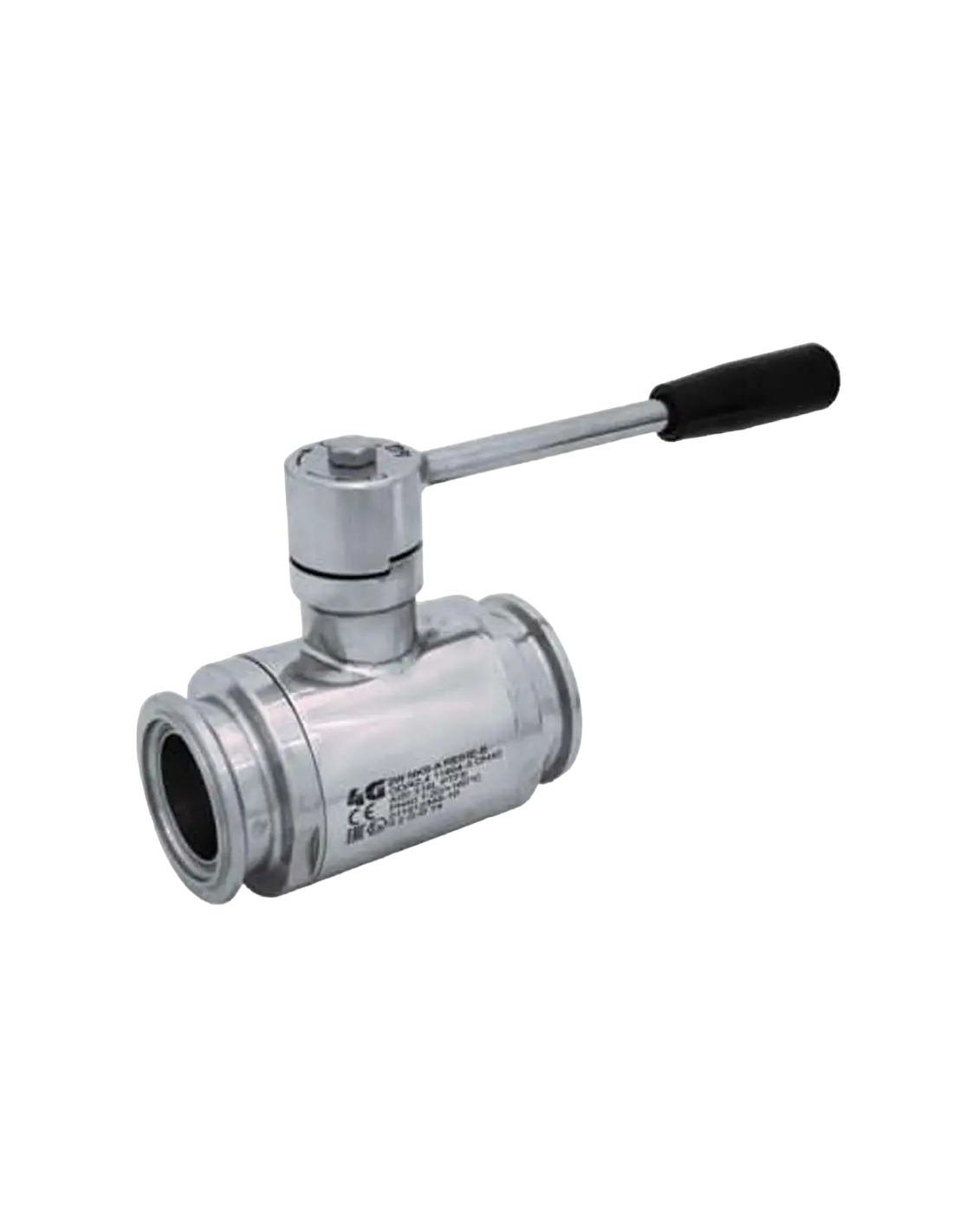

Aseptic Spherical Ball Valve 4G Ghidini 100167

Two-way ball valve for aseptic process lines, available with DIN 11864-3 connections (Reihe A/B/C), NKS Form A, female type. Constructed from AISI 316L / 1.4404 with polished external finish. Manual stainless steel lever. Full or reduced bore options available.

Connection Configuration

  • Reihe A: For DIN 11866-A / DIN 11850 Reihe 2 pipe, DN10–DN100
  • Reihe B: For DIN 11866-B / ISO 1127 pipe, DN10–DN80
  • Reihe C: For DIN 11866-C / ASTM A-270 pipe, DN10–DN100

Series selection is not interchangeable without verifying pipe, clamp/aseptic connection dimensions, and gasket compatibility.

Technical Data

  • Body, ball, sleeves, and stem: AISI 316L
  • Seats: modified virgin PTFE
  • Sleeve and stem seals: PTFE
  • Stem O-ring: FKM
  • Operating temperature: -20°C to +170°C
  • Pressure: up to PN100 for small diameters, decreasing per DN as per dimension table
  • On request: ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T135°C Db and M.O.C.A. CE 1935/2004 compliance.

Sealing and Media Compatibility

Standard PTFE seat is suitable for process water, food, beverages, pharmaceuticals, and chemicals compatible with AISI 316L/PTFE. Alternative seats: PTFE with glass (up to +170°C), PTFE with carbographite (up to +180°C), PTFE with stainless steel (up to +200°C), UHMW polyethylene (up to +80°C).

Applications

Used in aseptic filling lines, CIP/SIP sections, dosing lines, and transfer of food, cosmetics, and pharmaceutical products. Primarily for on/off isolation; not recommended for continuous throttling service.

FAQ

When to select Reihe B?
When piping is to ISO 1127 / DIN 11866-B.

Is it suitable for food applications?
M.O.C.A. CE 1935/2004 compliance available on request.

Standard (Options)
  • DIN
Connection (Options)
  • Aceptik
Material (Options)
  • S.S. 316L
Pressure Rating (Options)
  • PN 100
Seat (Options)
  • PTFE

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection:

  • ASEPTIK normative DIN 11864-3 REIHE A, NKS Form A. For TUBE according to normative DIN 11866-A (DIN 11850 REIHE 2)

  • ASEPTIK normative DIN 11864-3 REIHE B, NKS Form A. For TUBE according to normative DIN 11866-B (ISO 1127)

  • ASEPTIK normative DIN 11864-3 REIHE C, NKS Form A. For TUBE according to normative DIN 11866-C (ASTM A-270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN10 to DN80

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
