Our MSH01-80x30, combined with our shaft feedthrough WDF, is a mounting kit that enables the easy installation of our i-box, double sensors or angle sensors on hand valves. It is also possible to create redundancy using a second double sensor. This means you also receive position feedback from your hand valves and protect your system from undetected vandalism.
Mounting Kits - MSH01-80x30 | Eurotec

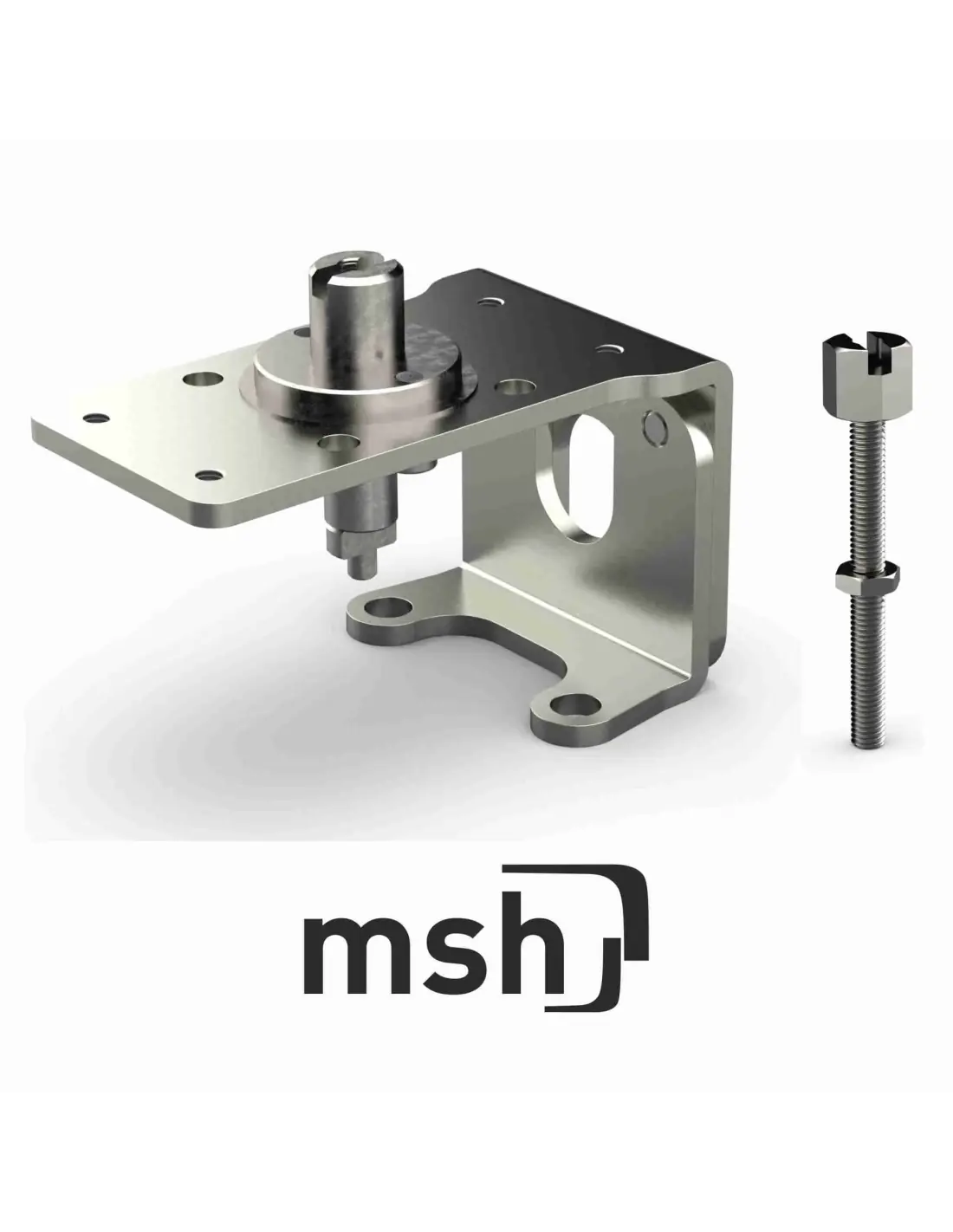

Mounting Kit Eurotec MSH01-80x30
The Eurotec MSH01-80x30 is a mounting kit designed for installation of i-box, double sensors, or angle sensors on manually operated valves. When combined with the shaft feedthrough WDF, it enables position feedback from valves lacking pneumatic or electric actuators.
Functional Role
The MSH01-80x30 does not automate the valve or transmit operating torque. It is used for mechanical support of position sensors, allowing the PLC, DCS, or local control system to receive open / close indication from a manual valve.
The 80x30 variant refers to the mounting geometry and is selected when the sensor/valve arrangement requires this specific drilling pattern.
Redundancy Capability
A second double sensor can be added for redundant position feedback. This is applied in lines where incorrect manual valve position must be detected by the control system, such as isolations, by-pass lines, auxiliary supplies, or process interlocks.
Applications
- Manual ball valves
- Manual butterfly valves
- Plug valves
- Isolation valves for water, air, utility gases, or chemical services
- Retrofit installations requiring feedback without actuators
The kit does not contact process media. Media compatibility is determined by the valve and its materials of construction.
Certifications
Eurotec states compliance with DIN EN ISO 9001:2015 and ISO/IEC 80079-34 for manufacturing equipment and protective systems intended for explosive atmospheres. Ex suitability of the final assembly depends on the i-box, sensor, cable glands, and installation.
FAQ
When is MSH01-80x30 used?
When a manual valve requires reliable position feedback via i-box, double sensor, or angle sensor.
What is checked during maintenance?
Tightness, alignment, mechanical play, corrosion, WDF condition, and correct signal switching at open/close positions.
