Mounting Kit Eurotec MSH-EPV

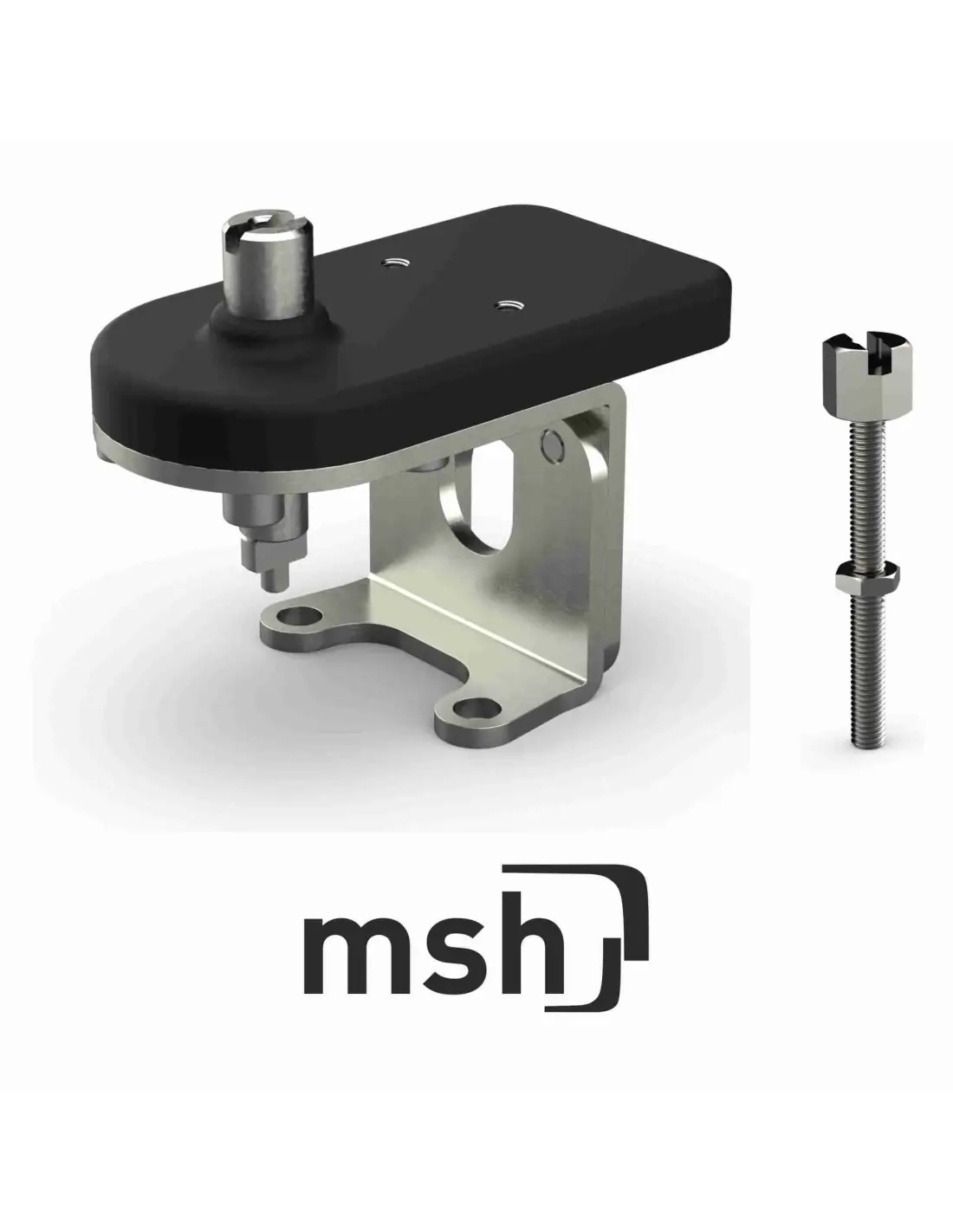

Eurotec MSH-EPV is a mounting kit with a polymer mounting plate, designed for the installation of double sensors on manually operated valves. It is used when a manual valve must provide reliable position feedback (open/close) to PLC, DCS, or local panel, without the need for a pneumatic or electric actuator.
Functional Role
The MSH-EPV does not automate the valve and does not transmit torque. Its function is to provide mechanical support for position sensors on a manual valve, enabling position monitoring in process lines.
Typical applications include:
- manual isolation valves,
- bypass lines,
- auxiliary water or air networks,
- chemical dosing points,
- locations requiring detection of unauthorized operation or incorrect valve position.
Technical Use
The kit does not contact process media. Compatibility with water, air, steam, chemicals, or other fluids is determined by the valve and its materials. MSH-EPV selection is based on valve geometry, double sensor type, available mounting space, and control system feedback requirements.
Selection and Installation
Selection criteria include:
- manual valve type,
- operator position and geometry,
- double sensor type,
- sensor alignment with indicator shaft,
- requirement for Ex sensor or Ex switch box,
- maintenance and inspection access.
Certifications
Eurotec states compliance with DIN EN ISO 9001:2015 and ISO/IEC 80079-34 for equipment intended for explosive atmospheres. Ex suitability of the final assembly depends on sensor, wiring, cable glands, and installation method.
FAQ
When is MSH-EPV used?
When a manual valve must provide reliable position feedback without conversion to automated operation.
What is checked during maintenance?
Tightness, alignment, mechanical play, wear of the polymer plate, connector corrosion, and correct open/close signal switching.
Datasheet and documents
Description
Certificates
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
