Our MSH01-40x30, combined with our shaft feedthrough WDF, is an assembly kit that enables the easy installation of our i-box or double sensors on hand valves. This means you also receive position feedback from your hand valves and protect your system from undetected vandalism.
Mounting Kits - MSH01-40x30 | Eurotec

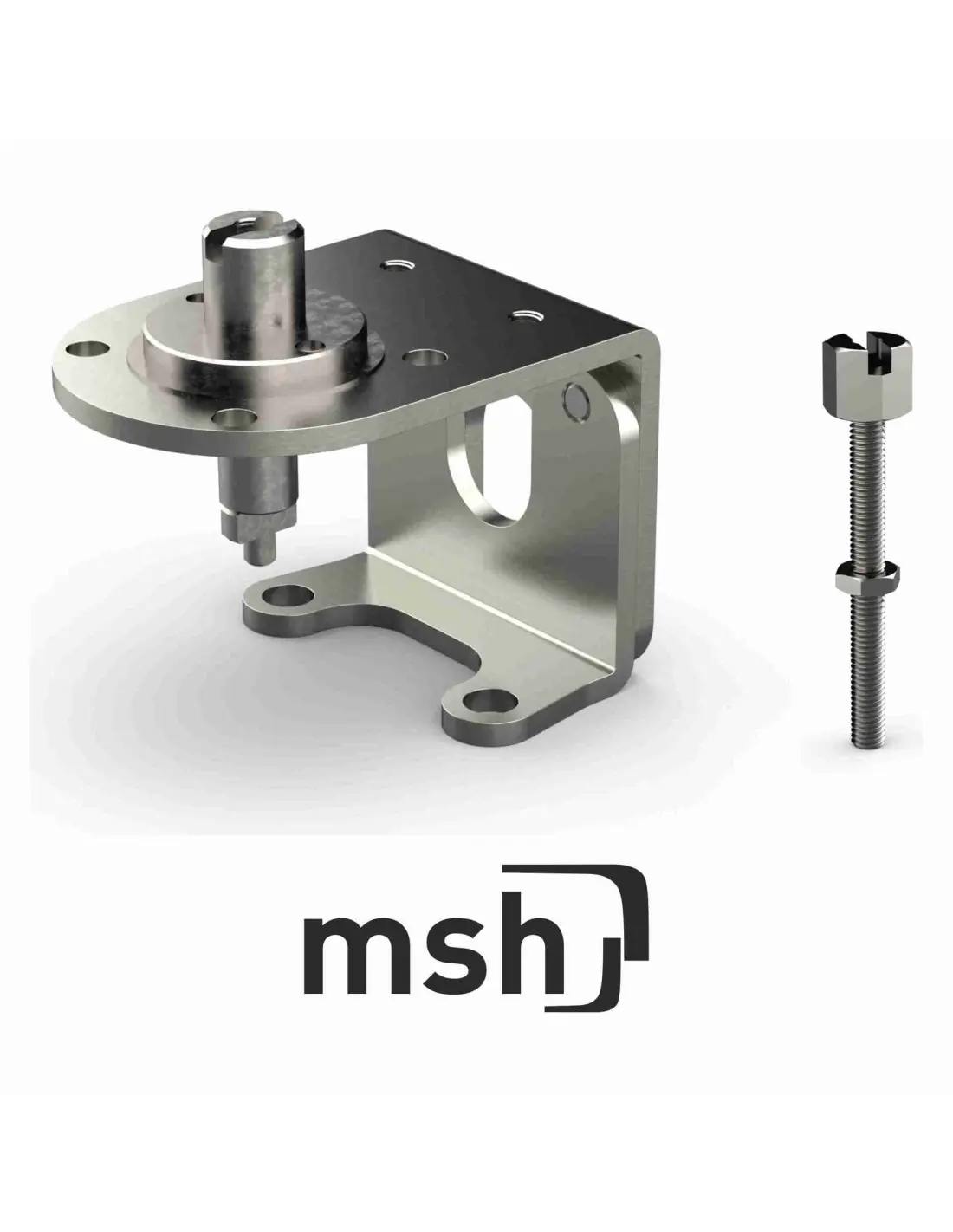

Mounting Kit Eurotec MSH01-40x30
The Eurotec MSH01-40x30 is an assembly kit designed for mounting an i-box or double sensors on manually operated valves. When used with the shaft feedthrough WDF, it enables position feedback from valves that lack pneumatic or electric actuators.
Functional Role
The MSH01-40x30 does not automate the valve or transmit operational torque. It provides mechanical support and coupling for a position sensor on a manual valve, allowing a PLC, DCS, or local control system to receive open / close status feedback.
This kit is used in process lines where manual valve position monitoring is required to detect incorrect position, unauthorized operation, or deviation from standard operating procedures.
Applications
- Manual ball valves
- Manual butterfly valves
- Plug valves
- Isolation lines for water, air, utility gases, or chemical feeds
- Retrofit in existing installations lacking actuator feedback
The kit does not contact the process medium. Media compatibility is determined by the valve, not the mounting kit. Suitable for non-hazardous and hazardous areas depending on sensor and enclosure selection.
Selection Criteria
Selection depends on manual valve type, handle or shaft geometry, i-box/double sensor type, available space, and end position signal requirements. For Ex zones, suitability is determined by the switch box, sensor, cable glands, and installation method.
Certifications
Eurotec states compliance with DIN EN ISO 9001:2015 and ISO/IEC 80079-34 for manufacturing equipment intended for explosive atmospheres.
FAQ
When is MSH01-40x30 used?
When manual valves require reliable position feedback without conversion to automated operation.
What is checked during maintenance?
Tightness, alignment, mechanical play, corrosion, WDF condition, and correct open/close signal switching.
Datasheet and documents
Description
Certificates
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
EAC-TR (Russia)
Our limit switch boxes are also certified according to the Russian standard EAC TR CU 004 and TR CU 012. You can download the certificate for the explosion-proof area here:
EAC approval for limit switch boxes (Ex-protected)
CCC (China)
Our limit switch boxes are also certified according to the Chinese standard CCC, CNCA-C23-01:2019. You can download the certificates here:
UKCA (England)
Our products for explosion-proof areas are also certified according to the British standard UKCA, UKSI 2016:1107.
ROHS
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
REACH
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
Regulation EC 1907/2006 (REACH)
