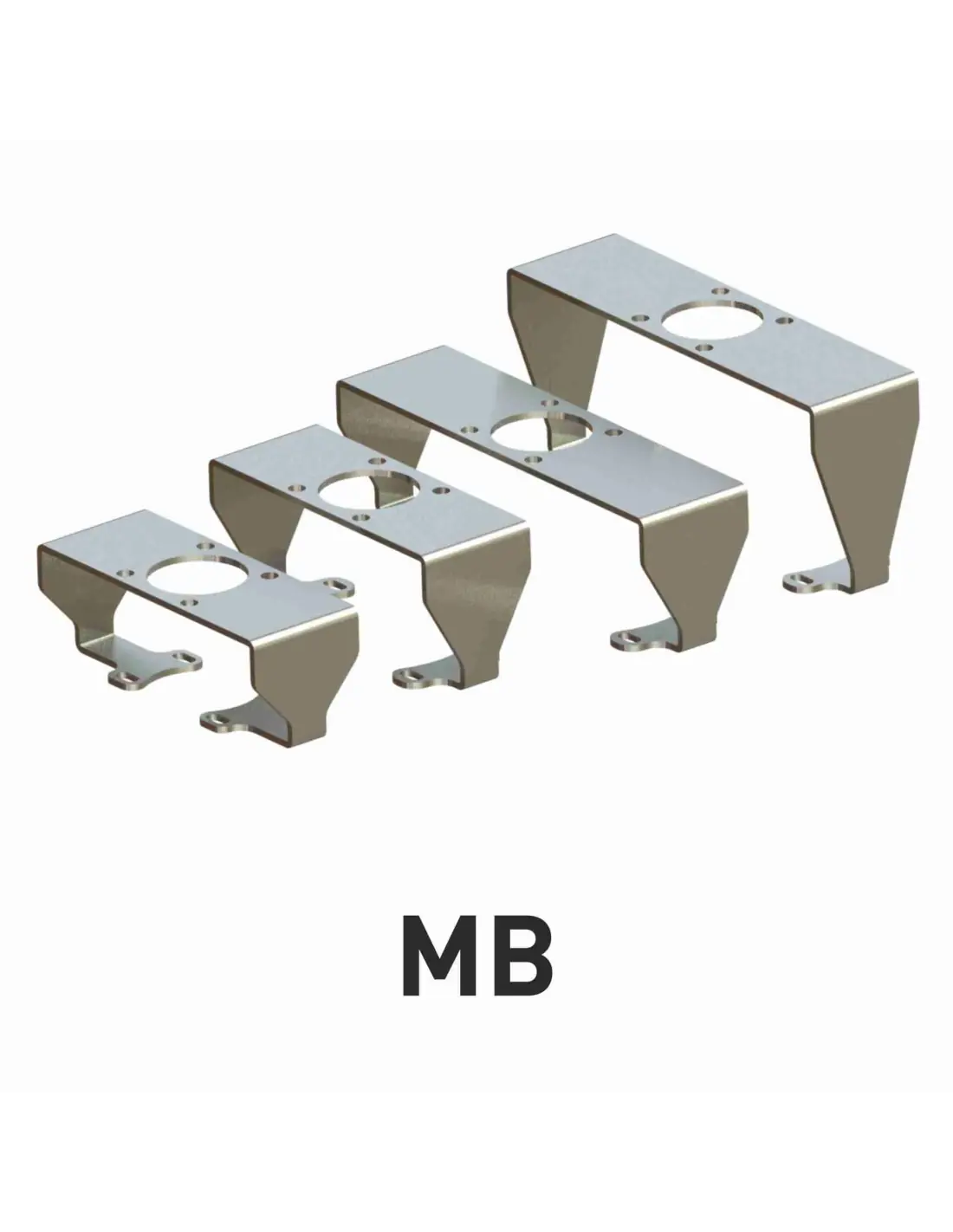

Eurotec VDI/VDE – MB Mounting Brackets
Eurotec MB brackets are one-piece F05 mounting interfaces for direct installation of limit switch boxes or Siemens SIPART PS2 positioners on pneumatic rotary actuators. They are used on quarter-turn valves—such as ball, butterfly, and plug valves—where a rigid mechanical base is required for position feedback or indication.
Mechanical Compatibility
- Standards: VDI/VDE 3845 and DIN EN ISO 5211
- Top interface: F05
- Actuator drilling patterns: 80 x 30 mm or 130 x 30 mm
- Actuator shaft heights: 20, 30, or 50 mm
- Material: Stainless steel 1.4301 / AISI 304
- Deburred edges and tolerances per NAMUR
MB vs. IMBHV / MBHV
MB brackets are single-piece, non-adjustable, with fixed drilling patterns and shaft heights. MBHV variants are adjustable in height and width, while IMBHV are compact versions for i-box or short-shaft switch boxes. MB is selected when actuator dimensions are defined and a rigid, simple mounting is required.
Selection Criteria
Selection is based on:
- Switch box or positioner interface
- Actuator drilling pattern
- Shaft height: 20 / 30 / 50 mm
- Requirement for side slot for manual override
- Ambient conditions and stainless steel requirement
MB803020 and MB803030 types include a side slot for actuator manual override access.
FAQ
When are MB brackets preferred over adjustable types?
When actuator drilling pattern and shaft height are known and no field adjustment is required.
What is checked during maintenance?
Bolt tightness, corrosion, shaft alignment, mechanical play, and correct limit switch activation.
