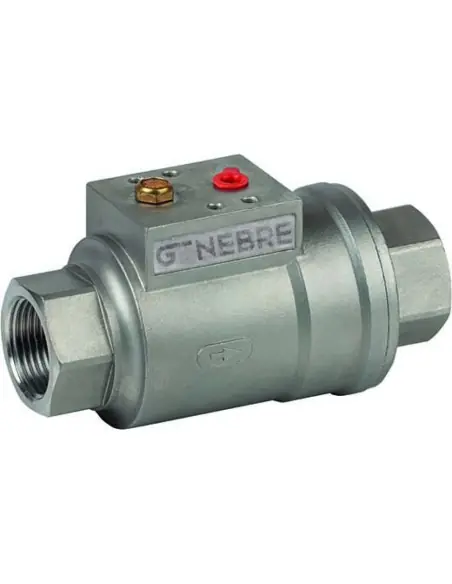

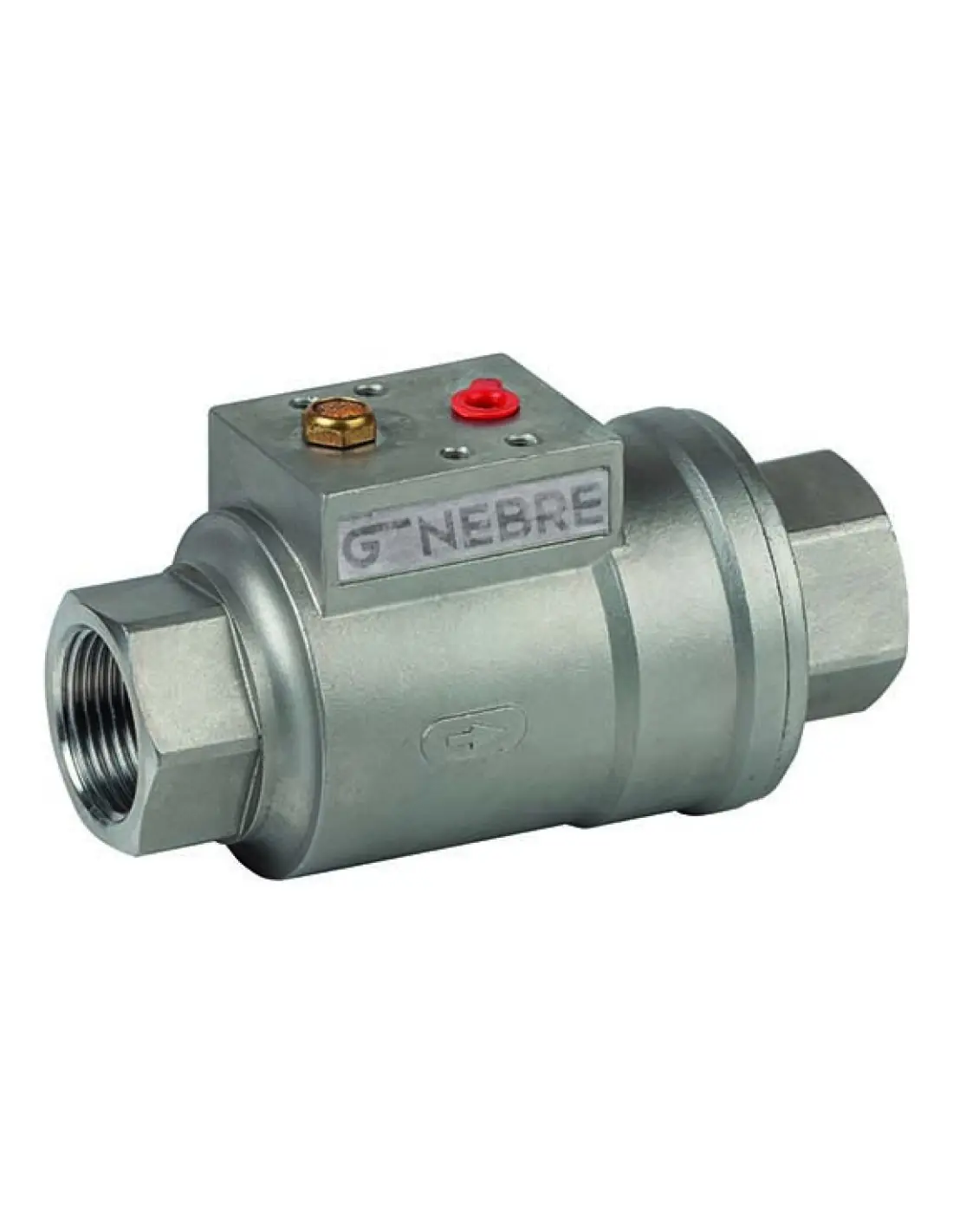

Automatic On/Off Valve Genebre Type 5062

The Genebre 5062 is a pneumatic straight-through valve with an axial shutter, full bore, and piston actuation. The default configuration is Normally Closed / NC with spring return, but it can be converted to Normally Open / NO by changing the spring position and air supply.

Technical Specifications

Connections: G3/8" to G2".
Thread: ISO 228/1.
Max fluid pressure: PN16.
Operating temperature: -20°C to +150°C.
Body: CF8 / AISI 304.
Seat and rings: EPDM.
Kv: 3.2 to 55 m³/h.
Vacuum tightness: up to 740 mm Hg.

Suitable Media

The 5062 is intended for hot water and low-pressure steam, with a steam limit up to 5 bar. It is not suitable for oils, greases, fuels, or fluids incompatible with EPDM and stainless steel AISI 304.

Pneumatic Connection

The air connection follows NAMUR VDI/VDE 3845, G1/8". Control air pressure is 4–8 bar. The actuation medium must be clean and dry air, lubricated air, or inert non-corrosive gas.

Installation and Selection

The valve has a permissible installation direction, as indicated by the arrow on the body. The line must be free of chips, welding residues, and solids. The valve should not bear pipe loads; proper alignment is required, and an upstream filter is recommended.

Typical Applications

Process hot water isolation,
Low-pressure steam up to 5 bar,
Filling or draining lines,
Auxiliary circuits in skids,
On/off automation with fail-close logic.

FAQ

When to choose the 5062 over the 5060?
When a straight-through, full-bore valve with EPDM and AISI 304 body is required, instead of an angle seat with PTFE.

Is there an NPT version?
Yes, the corresponding version is referred to as 5062N.

Standard (Options)

Connection (Options)

ISO 228-1

Material (Options)

CF8 (AISI 304)

Pressure Rating (Options)

PN 16

Pattern (Options)

Straight Through

Seat (Options)

EPDM

Datasheet and documents

Description

Also available with NPT thread (5062N).

Stainless steel material AISI 304.

Gas thread ends ISO 228-1. Seat EPDM material.

Namur pneumatic connection.

Maximum working pressure 16 PN.

Control by single action (spring return).

Reference: 5062

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
5062 03	PNEUMATIC SHUTTLE VALVE 3/8"	1	0.8	1/24
5062 04	PNEUMATIC SHUTTLE VALVE 1/2"	1	1.009	1/24
5062 05	PNEUMATIC SHUTTLE VALVE 3/4"	1	1.47	1/12
5062 06	PNEUMATIC SHUTTLE VALVE 1"	1	1.912	1/12
5062 07	PNEUMATIC SHUTTLE VALVE 1 1/4"	1	3.023	1/8
5062 08	PNEUMATIC SHUTTLE VALVE 1 1/2"	1	3.9	1/6
5062 09	PNEUMATIC SHUTTLE VALVE 2"	1	5.509	1/4
