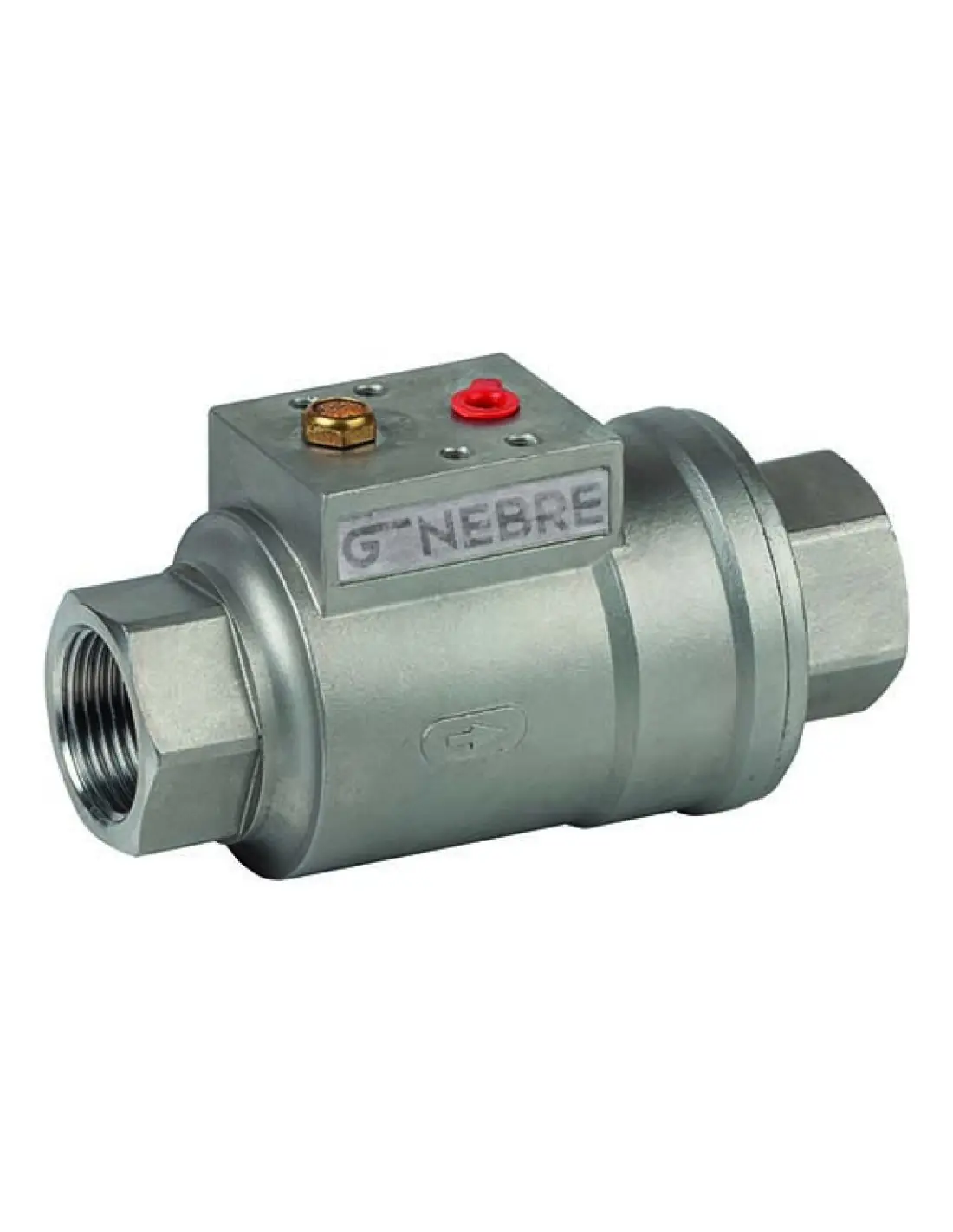

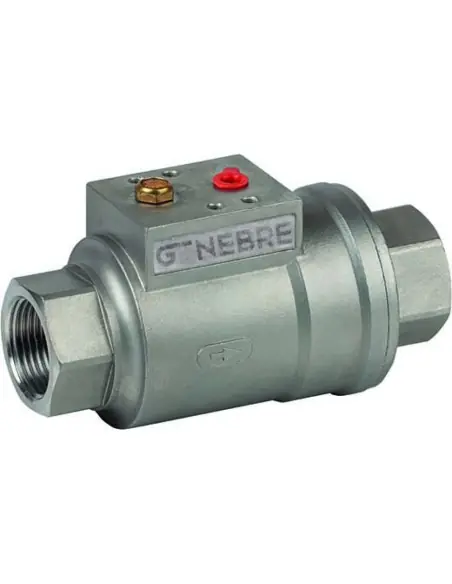

Automatic On/Off Valve Genebre Type 5062N

The Genebre 5062N is a pneumatic straight-through valve, full bore, with axial closure and piston actuation. The standard version is Normally Closed / NC with spring return, but it can also be configured as Normally Open / NO. The difference from the 5062 is the NPT connection according to ASME B1.20.1.

Technical Data

Connections: 3/8" to 2" NPT.
PN16, maximum fluid pressure 16 bar.
Body: CF8 / AISI 304.
Seat and primary seals: EPDM.
Operating temperature: -20°C to +150°C.
Kv: 3.2 to 55 m³/h, depending on size.
Vacuum tightness: up to 740 mm Hg.

Suitable Media

The 5062N is intended for hot water and low-pressure steam, with a steam limit of up to 5 bar. It should not be selected for oils, greases, fuels, or other media incompatible with EPDM and stainless steel AISI 304.

Pneumatic Connection

The air connection is NAMUR VDI/VDE 3845, G1/8". The control pressure of the piston is 4–8 bar. The actuation air must be clean and dry or, where specified, lubricated air or inert non-corrosive gas.

Installation and Maintenance

The valve has a permissible flow direction, as indicated by the arrow on the body. Piping must be free of shavings and residues, with no mechanical loads on the body or actuator. The actuator should not be used as a lever for tightening. An upstream filter is recommended to reduce seat wear.

FAQ

When is the 5062N chosen over the 5062?
When the installation requires NPT tapered thread instead of ISO 228-1.

Is it a control valve?
No. It is an on/off isolation valve with pneumatic piston operation.

Standard (Options)

Connection (Options)

Material (Options)

CF8 (AISI 304)

Pressure Rating (Options)

PN 16

Pattern (Options)

Straight Through

Seat (Options)

EPDM

Datasheet and documents

Description

Also available with NPT thread (5062N).

Stainless steel material AISI 304.

Gas thread ends. Seat EPDM material.

Namur pneumatic connection.

Maximum working pressure 16 PN.

Control by single action (spring return).

Reference: 5062N

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
5062N 03	PNEUM. SHUTTLE VALVE NPT 3/8"	1	0.736	1/24
5062N 04	PNEUM. SHUTTLE VALVE NPT 1/2"	1	0.941	1/24
5062N 05	PNEUM. SHUTTLE VALVE NPT 3/4"	1	1.434	1/12
5062N 06	PNEUMATIC SHUTTLE VALVE NPT 1"	1	1.777	1/12
5062N 07	PNEU. SHUTTLE VALVE NPT 1 1/4"	1	2.98	1/8
5062N 08	PNEUM.SHUTTLE VALVE NPT 1 1/2"	1	3.652	1/6
5062N 09	PNEUMATIC SHUTTLE VALVE NPT 2"	1	5.492	1/4
