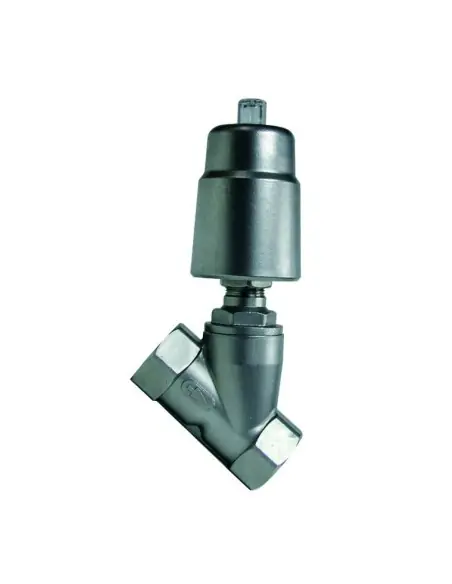

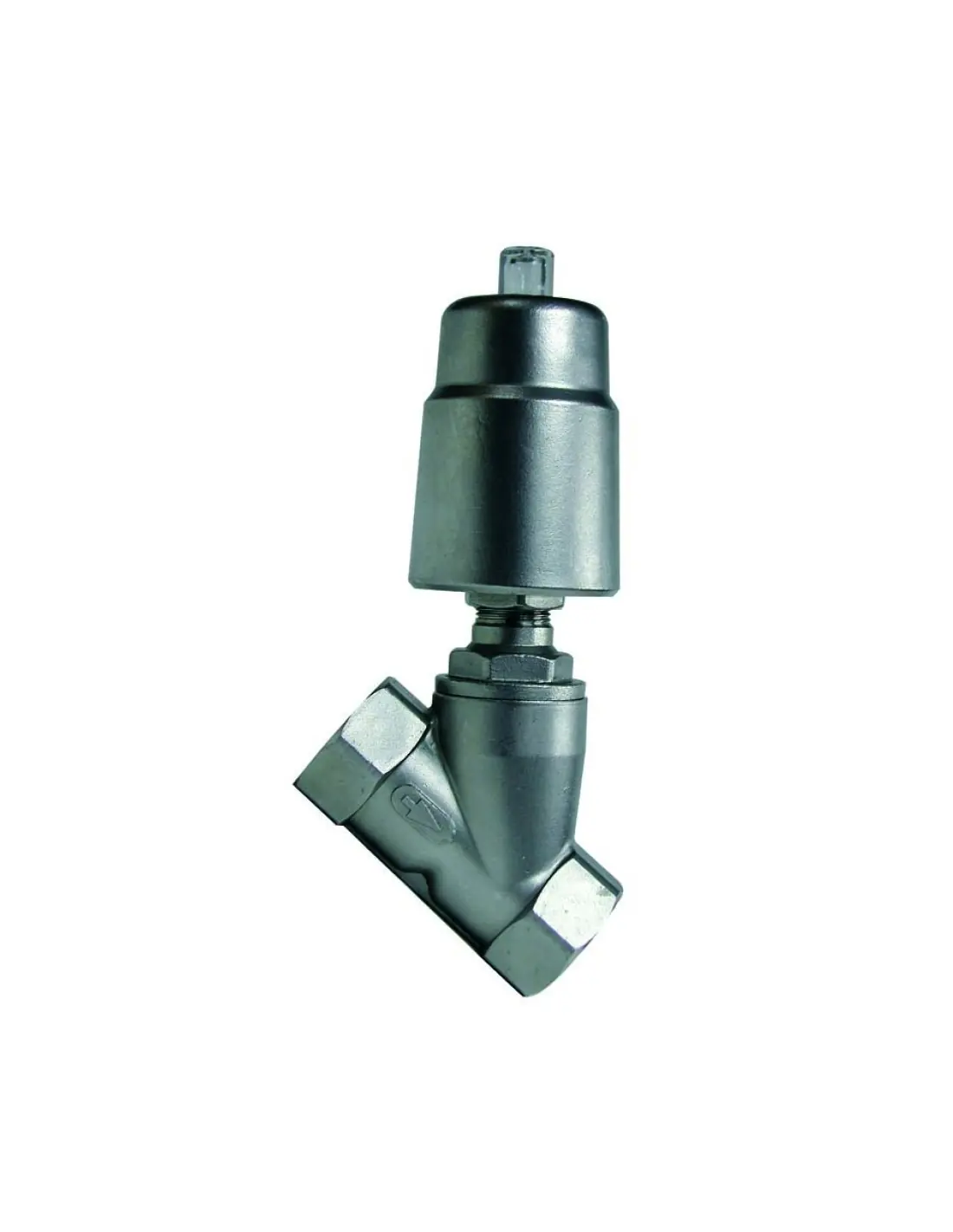

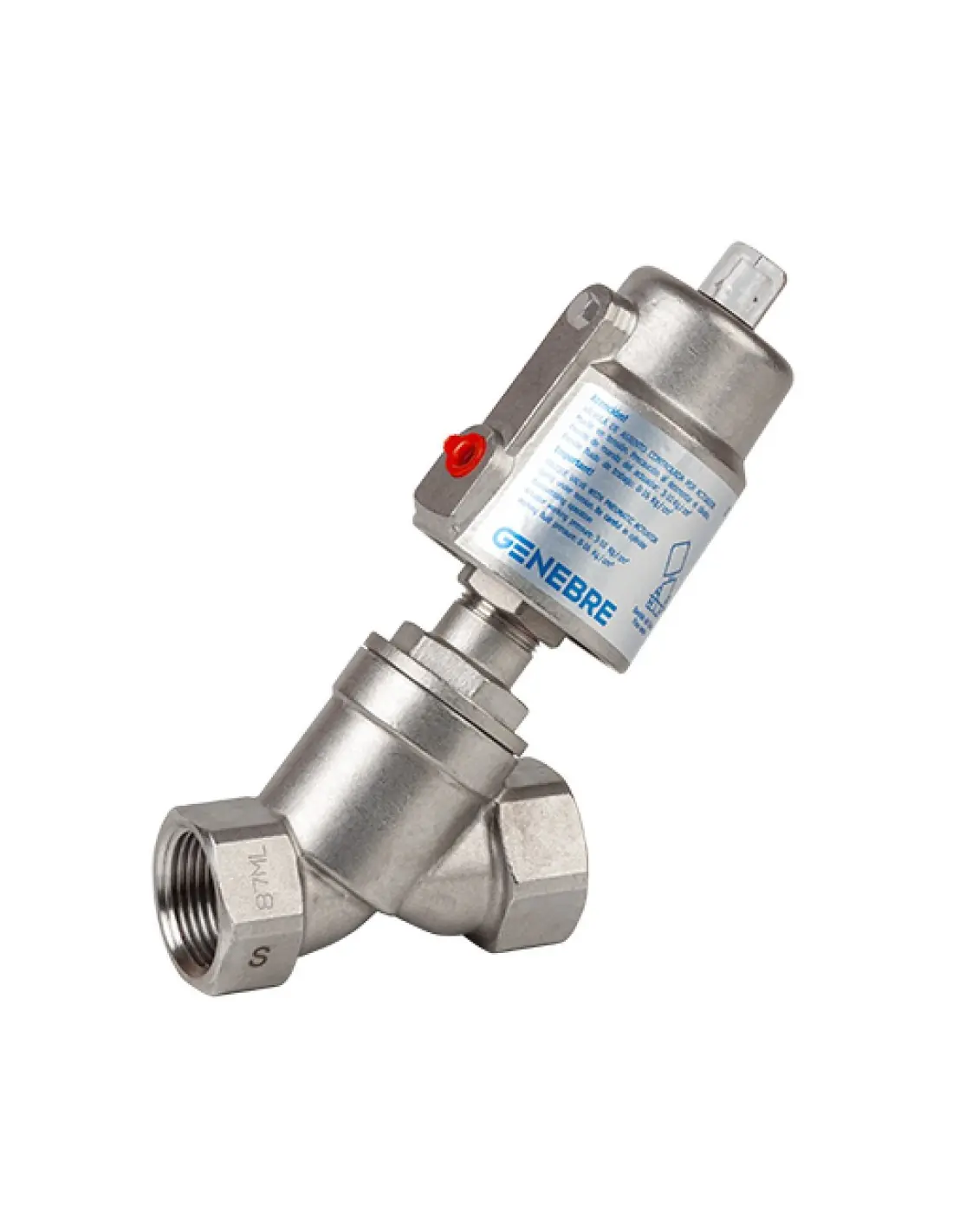

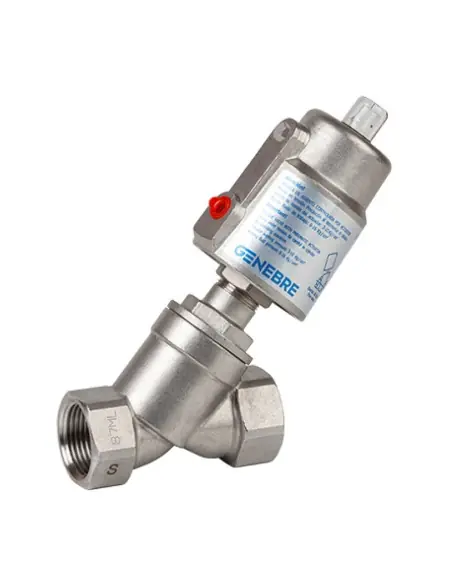

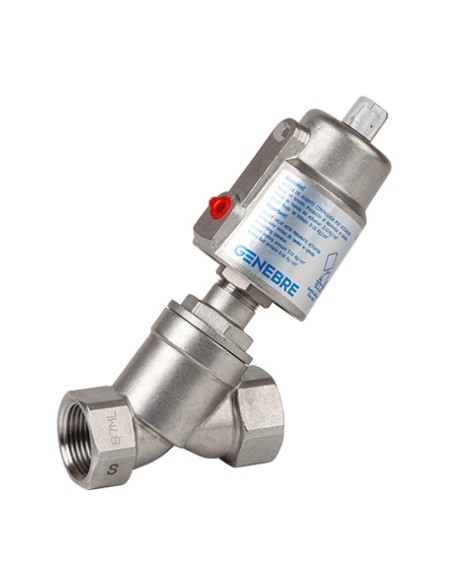

Automatic On/Off Valve Genebre 5060N

The Genebre 5060N is an angle seat valve with a single-acting pneumatic actuator and spring return. Its primary function is Normal Closed / NC, meaning it defaults to a closed position upon loss of control air. The 5060N differs from the 5060 mainly in connection type, utilizing NPT threads as per ASME B1.20.1.

Technical Data

DN15–DN50, connections from 1/2" to 2".
PN16, maximum operating pressure 16 bar.
Body made of stainless steel CF8M / AISI 316.
PTFE seat.
Operating medium temperature: -10°C to +180°C.
Maximum fluid viscosity: 600 mm²/s.
Visual position indicator on actuator.

Hydraulic Selection

Kv values range from 4.7 m³/h at DN15 to 52.8 m³/h at DN50. Maximum differential pressure is 16 bar up to DN40, limited to 9 bar at DN50. Selection should consider DN, Kv, ΔP, available air pressure, and fluid compatibility with CF8M and PTFE.

Pneumatic Operation

The actuator operates with clean, dry air at 3–8 bar, with air connection G 1/8". Minimum control pressure depends on differential pressure and DN, from 3.5 bar at DN15 to 7 bar at DN50.

Applications

Suitable for on/off isolation in process water, compressed air, neutral liquids, and compatible gases. Typical uses include skids, auxiliary machine circuits, filling, draining, and bypass lines requiring fail-close behavior.

Installation and Maintenance

Flow direction should follow the arrow on the body. Horizontal installation with actuator upwards is recommended, ensuring proper pipe alignment and a filter before the valve. Leakage from the indicator hole in the valve neck suggests potential shaft seal failure, requiring gasket set replacement.

Standard (Options)

Connection (Options)

Material (Options)

AISI 316 (Stainless Steel)

Pressure Rating (Options)

PN 16

Pattern (Options)

Angle

Seat (Options)

PTFE

Datasheet and documents

Description

Also available in NPT thread (5060N).

Gas threaded ends, PN-16. Constr.: stainless steel AISI 316 investment casting. Actuator seal: NBR. Working temp. range: -10ºC +180ºC. Pressure control actuator: 3-10 kg/cm2.

Reference: 5060N

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
5060N 04	SLANTED SEAT VALVE NPT 1/2" + SPRING RETURN ACTUATOR	1	0.978	1/13
5060N 05	SLANTED SEAT VALVE NPT 3/4" +SPRING RETURN ACTUATOR	1	1.082	1/16
5060N 06	SLANTED SEAT VALVE NPT 1" +SPRING RETURN ACTUATOR	1	1.332	1/12
5060N 07	SLANTED SEAT VALVE NPT 1 1/4" +SPRING RETURN ACTUATOR	1	2.368	1/8
5060N 08	SLANTED SEAT VALVE NPT 1 1/2" +SPRING RETURN ACTUATOR	1	2.617	1/8
5060N 09	SLANTED SEAT VALVE NPT 2" +SPRING RETURN ACTUATOR	1	3.408	1/6
