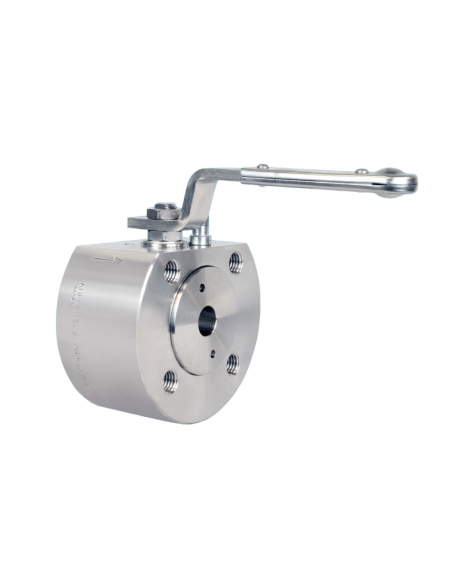

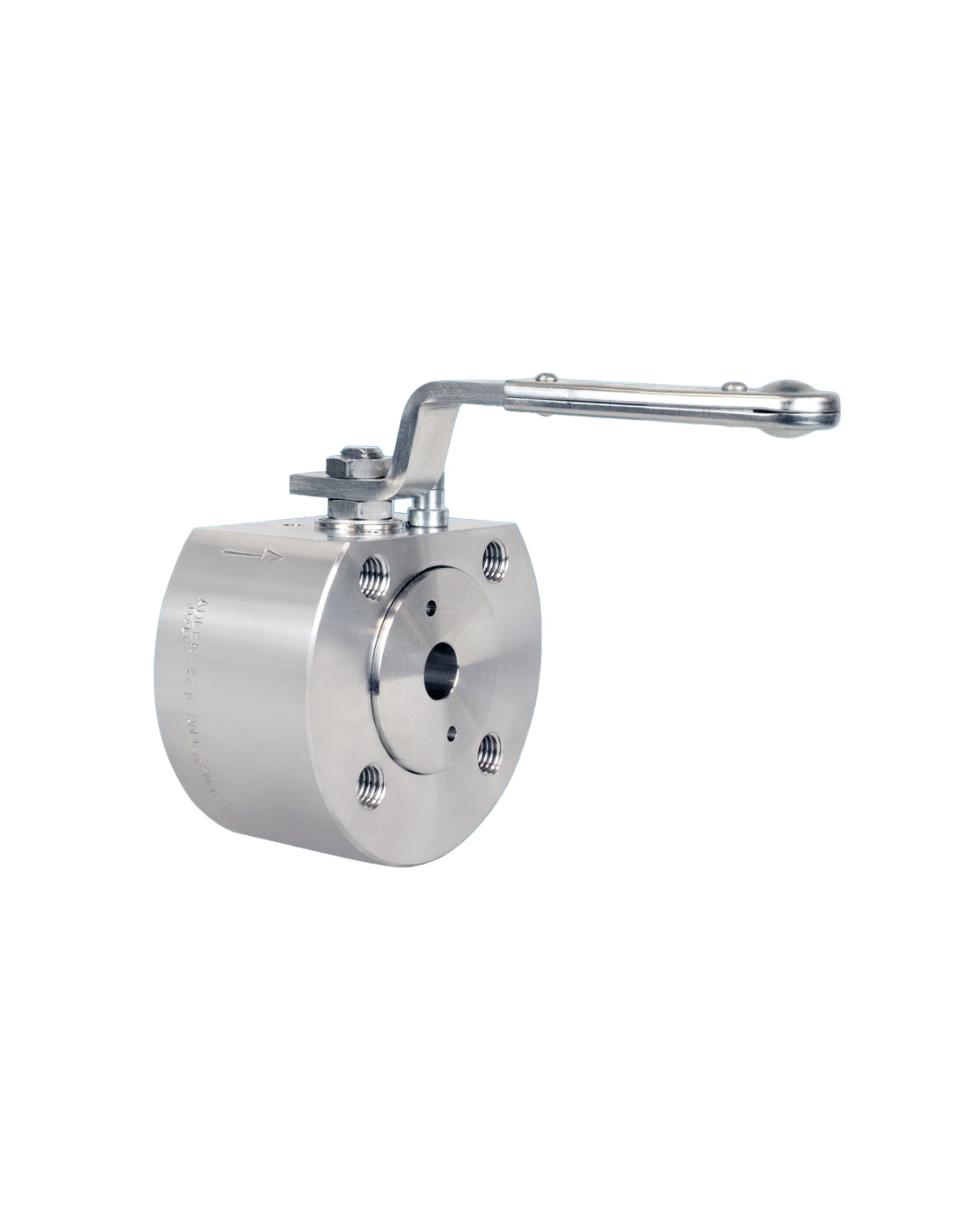

Ball Valve wafer - Type FC1 | ADLER

Ball Valve wafer - Type FC1 | ADLER: The Industrial Choice for Reliable Flow Control

The Ball Valve wafer - Type FC1 | ADLER is your trusted partner for seamless and efficient flow regulation in any industrial setting. Crafted to deliver reliable performance, this valve combines sturdy construction with innovative flow control technology to offer unmatched value for your operations.

Key Features & Everyday Benefits of Ball Valve wafer - Type FC1 | ADLER

  • Slim Wafer Design: Fits snugly between flanges, saving precious space in even the tightest installations while ensuring an easy fit for maintenance or quick replacement.
  • Durable Build: Made from high-grade materials, the valve resists corrosion, high pressure, and extreme temperatures, promising a long service life with minimal upkeep.
  • Easy Operation: The smooth, quarter-turn handle allows for instant opening and closing, providing you with simple and precise control over your pipeline’s flow—no special tools required.
  • Tight Seal Protection: Engineered with a reliable sealing mechanism, leaks are firmly prevented. This means product loss, costly downtime, and potential hazards are all kept at bay.
  • Versatile Application: Whether handling water, oil, or chemicals, the Ball Valve wafer - Type FC1 | ADLER adapts to a wide range of industrial environments, making it a go-to choice for professionals.

Choosing this valve means investing in peace of mind. Its compact form not only saves space but also simplifies installation and ongoing maintenance. Thanks to its robust design, daily worries about equipment failure or breakdowns are a thing of the past. The straightforward manual operation empowers staff at any skill level to adjust the flow safely and efficiently, reducing training time and human errors.

The advanced sealing technology minimizes the risk of leaks, which safeguards production lines, protects the environment, and ensures compliance with stringent safety standards. This valve’s compatibility with many types of media wipes out the need for multiple valve types on site, streamlining inventory and procurement processes.

In summary, the Ball Valve wafer - Type FC1 | ADLER stands out with its smart design, rugged construction, and effortless usability. It’s a dependable solution that delivers consistent flow control performance, allowing your operations to run smoother with less hassle and greater security.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105
  • ASTM A479 Type 304
  • ASTM A479 Type 316
Pressure Rating (Options)
  • PN 63
  • PN 100
  • PN 160
Seat (Options)
  • PTFE

Datasheet and documents

Description

Ball valve “wafer type”, full bore, manufactured from round bar, construction in according to EN 12516.2; ASME B16.34; ISO 14313; EN 1092-1; EN 1759-1; ASME B16.5; ANSI B1.1; ISO 14313.

Available size from DN 10 to DN 40 in carbon steel, in stainless steel and special steel

Rating PN 63 – 100 – 160 / ANSI 600 / ANSI 900  / ANSI 1500.

Double seals on body/insert junction

Chevron ring on stem.

On request :

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution BS6755 API 607/6FA (patent n° 00219617)

– cryogenic execution ISO 28921

– according to PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX14/34/UE directive

– degrease according to ISO 23208 oxige service

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device BS5146/74

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic extension

oval handle

pneumatic actuator double/single acting

electric actuator

manual gear box

pneumatic/electro-pneumatic positioner

Certificates

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
