Ball Valve wafer - Type FB2 | ADLER

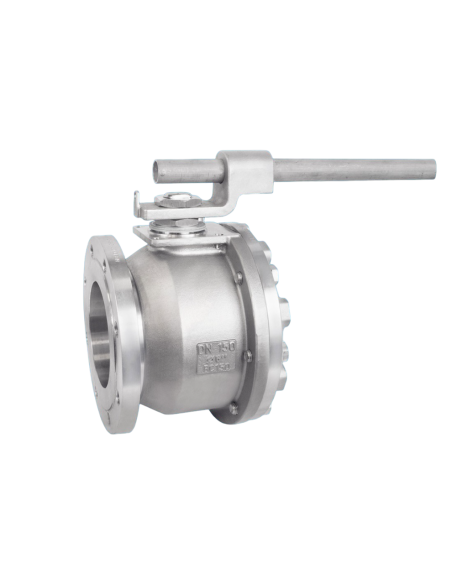

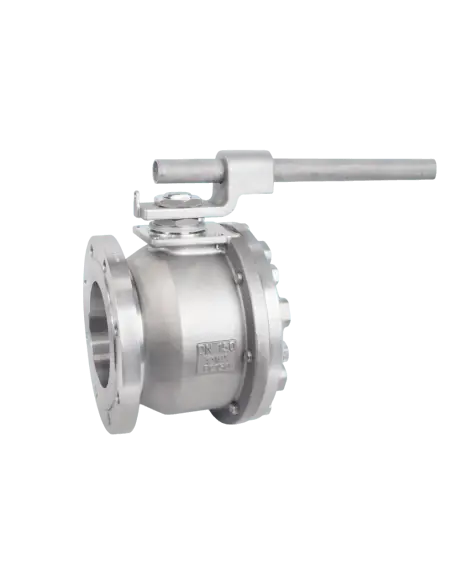

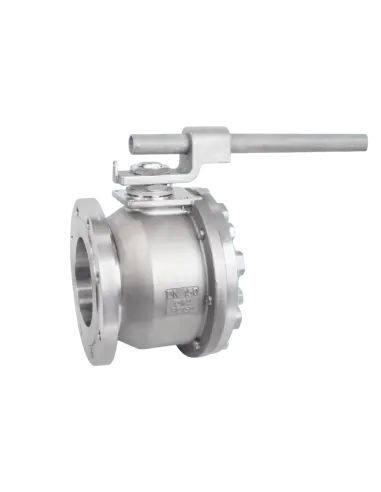

The Ball Valve Wafer - FB2 by ADLER is a full bore, wafer-type valve crafted from casting materials, adhering to standards such as EN 12516.2, ASME B16.34, and ISO 14313. It is available in sizes ranging from DN 150 to DN 200 and is constructed from stainless steel. The valve is rated for PN 10 to 40 and ANSI 150 to 300. It features double seals on the body/end junction and a chevron ring on the stem, with options for an o-ring on the stem and fire-safe execution. The valve complies with several directives, including PED 14/68/UE, TPED 2010/35/UE, and ATEX14/34/UE, and is certified for safety system S.I.L. 3 and fugitive emission class “A” ISO 15848. Standard features include an anti blow-out proof stem, antistatic device, and top flange ISO 5211. The valve is 100% air tested under water at 100 psi. Optional accessories include PTFE seats, stem extensions, various actuators, and positioners.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A351 CF8
  • ASTM A351 CF8M
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE
  • RPTFE

Datasheet and documents

Description

Ball valve “wafer type” full bore, manufactured from casting, according to EN 12516.2; ASME B16.34; ISO 14313; EN 1092-1; EN1759-1; ASME B16.5 ANSI B1.1.: ISO 14313; EN 558 ( basic series EN 100 )

Available size from DN 150 to DN 200 in stainless steel.

Rating PN 10 ÷ 40 / ANSI 150 ÷ 300.

Double seals on body/end junction (patent n°00216919)

Chevron ring on stem.

On request :

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution BS6755 API 607/6FA (patent n° 00219617)

– according to PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX14/34/UE directive

– degrease according to ISO 23208 oxige service

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.Available with o’ring on stem (patent n°00219688).

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device BS5146/74

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic extension

oval handle

pneumatic actuator double/single acting

electric actuator

manual gear box

pneumatic/electro-pneumatic positioner

Certificates

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.Available with o’ring on stem (patent n°00219688).

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
