Ball Valve Venturi port - Type VG2 | ADLER

Ball Valve Venturi port - Type VG2 | ADLER: Where Precision Meets Performance

The Ball Valve Venturi port - Type VG2 | ADLER is designed to deliver reliable flow control in the most demanding industrial environments. Crafted with precision engineering, this valve combines durability with efficient operation, making it a key component in any modern fluid handling system. Its robust construction ensures optimal functionality under high-pressure conditions, offering long-term value and consistent results.

Features & Benefits of Ball Valve Venturi port - Type VG2 | ADLER

  • Advanced Venturi Port Technology: The integrated Venturi port design ensures a controlled, stable flow that maximizes efficiency, minimizing turbulence and pressure loss.
  • Highly Durable Materials: Manufactured with corrosion-resistant alloys, this valve is built to withstand harsh chemicals and extreme temperatures, reducing maintenance needs and extending its life.
  • Seamless Operation: The innovative ball mechanism allows for smooth, effortless shut-off and precise control, so you can adjust flow instantly without leaks or drips.
  • Easy Installation: Compact and lightweight, this valve is simple to install in tight spaces, saving valuable time and effort during setup or replacement.
  • Reliable Sealing: The double-sealed system prevents unwanted leaks, safeguarding your equipment and maintaining system integrity at all times.

Perfect for a wide range of industrial uses, the Ball Valve Venturi port - Type VG2 | ADLER is your solution for managing fluid flow with confidence. Its smart design means even those without specialized training can operate and maintain it easily. From chemical processing to water treatment, this valve delivers consistent, measurable performance day after day.

Experience the peace of mind that comes with a product engineered for reliable service. Choose the Ball Valve Venturi port - Type VG2 | ADLER for your next project and enjoy efficiency, safety, and simplicity in one compact package.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A105
  • ASTM A351 CF8M
  • ASTM A479 Type 304
  • ASTM A479 Type 304L
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 25
  • PN 40
Seat (Options)
  • PTFE

Datasheet and documents

Description

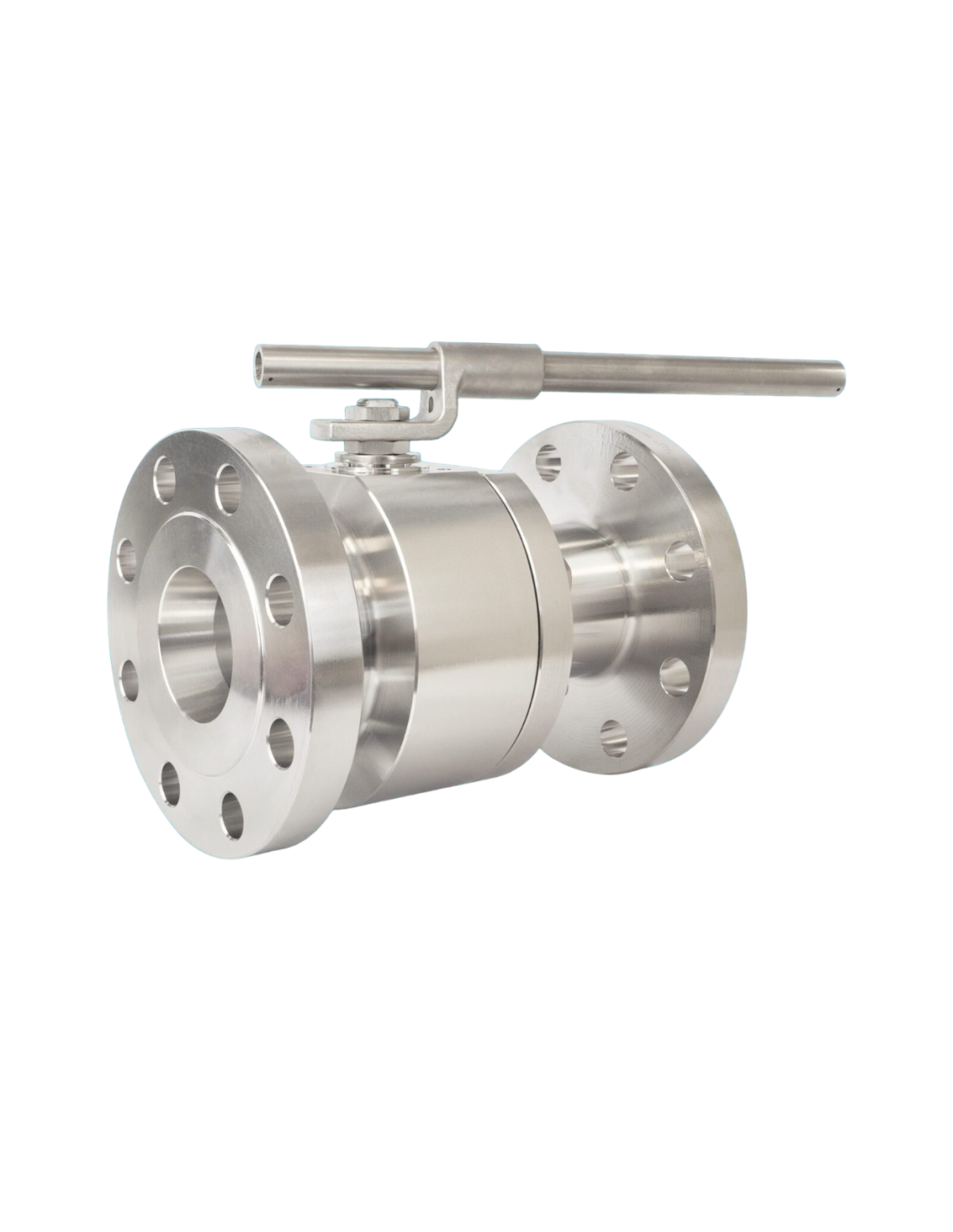

Ball valve 2 piece “SPLIT BODY” type Venturi port, manufactured from round bar or casting, construction according to EN 12516.2; ASME B16.34; EN 1759-1 ; ASME B16.5; ISO 14313; ANSI B16.1; EN 558 (Basic series 4).

Available size from DN 40 to DN 250 in carbon steel,  stainless steel and special steel

Rating ANSI 300.

Double seals on body/end junction (patent n°00216919)

Chevron ring on stem.

On request :

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution according to  BS6755 API 607/6FA (patent n° 00219617)

– according to PED 14/68/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 oxigen service

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848Available with o’ring on stem (patent n°00219688).

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-

polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic  extension

oval handle

pneumatic actuator double/single acting

electric  actuator

manual gear box

pneumatic / electro-pneumatic positioner

Certificates

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848Available with o’ring on stem (patent n°00219688).

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
