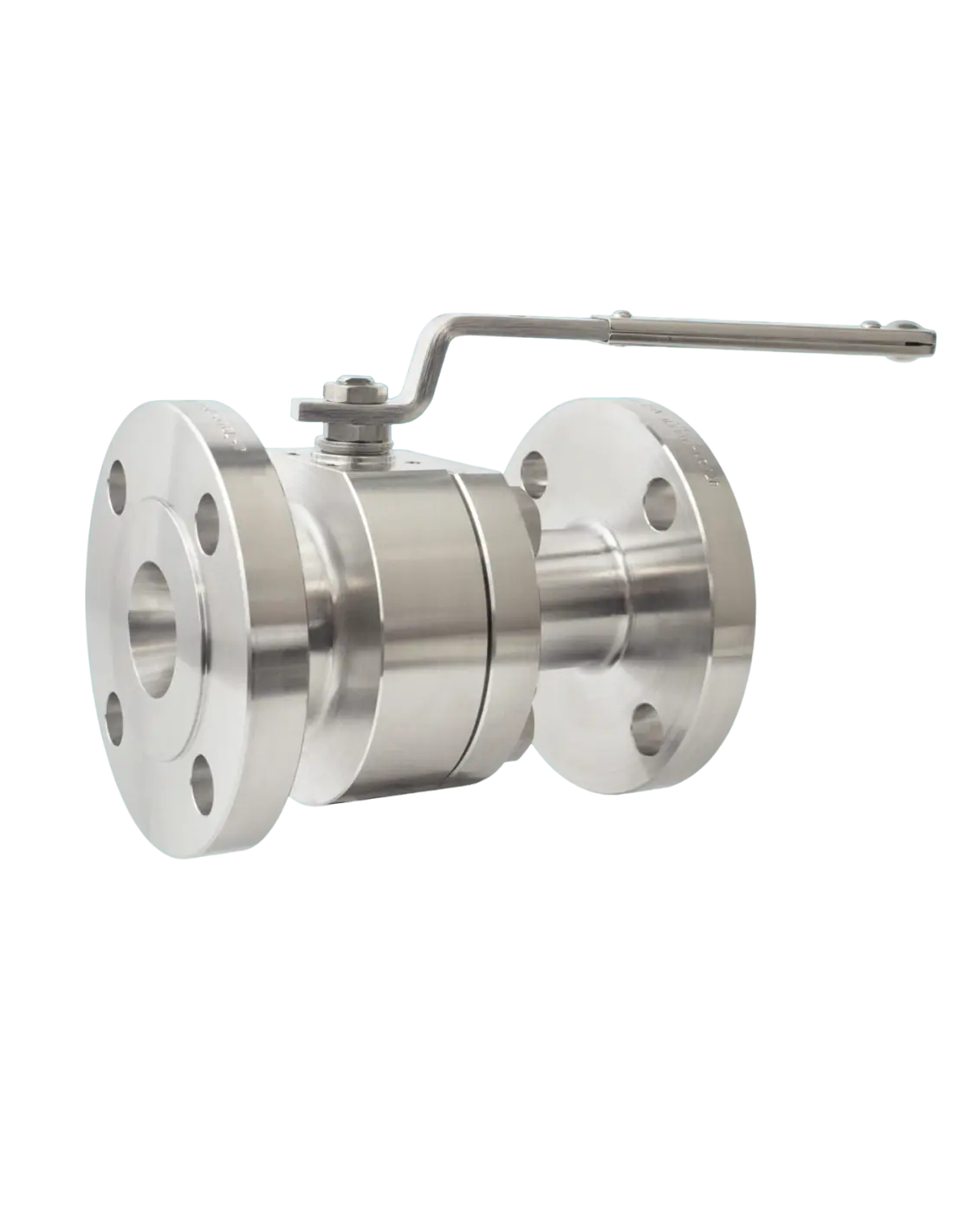

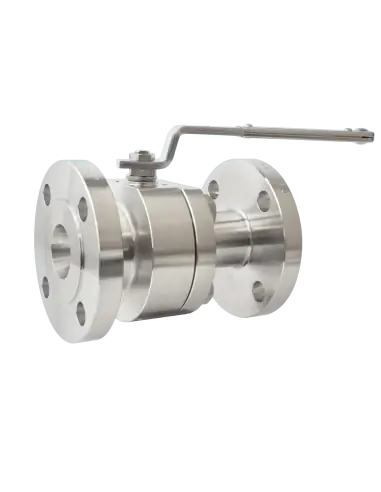

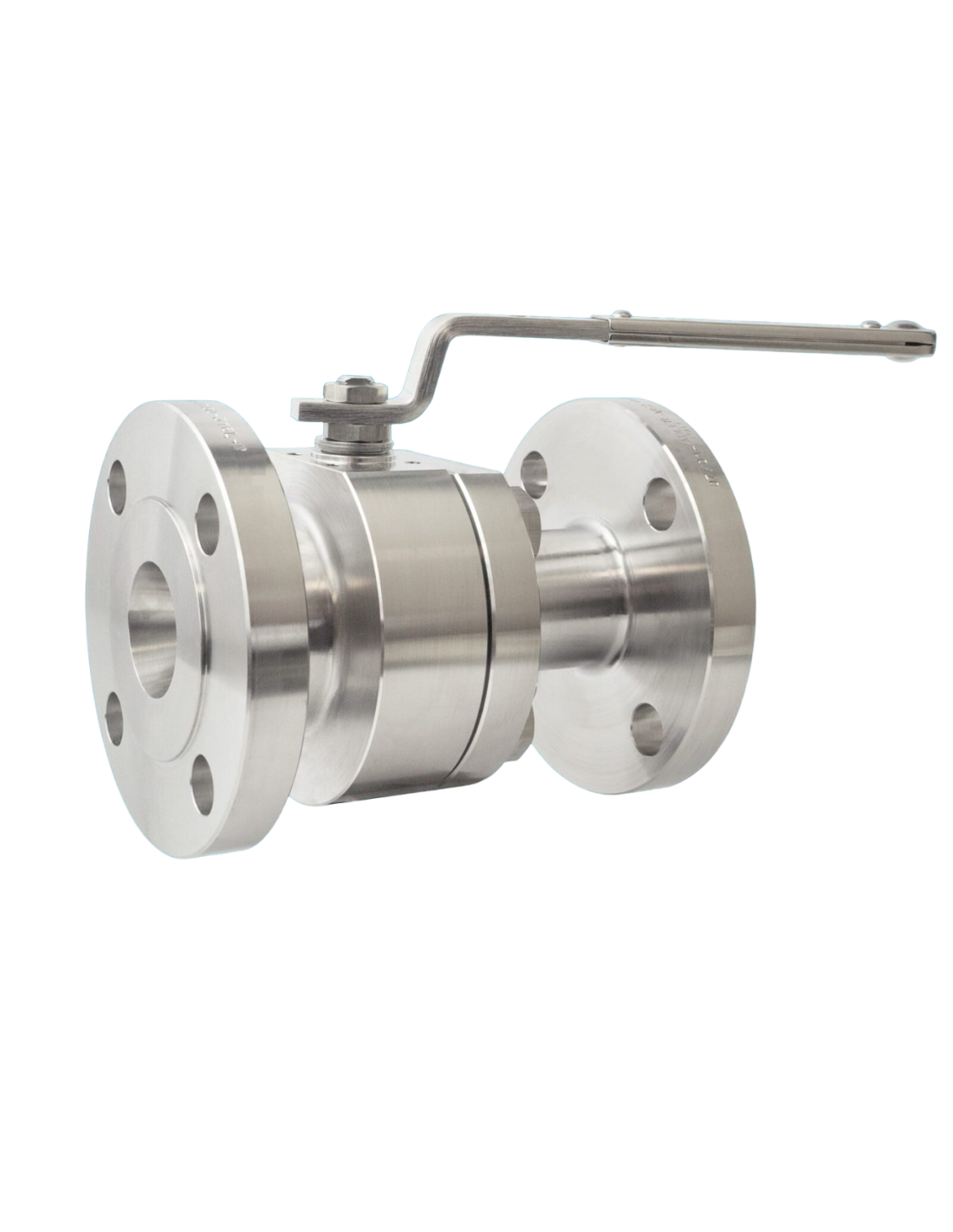

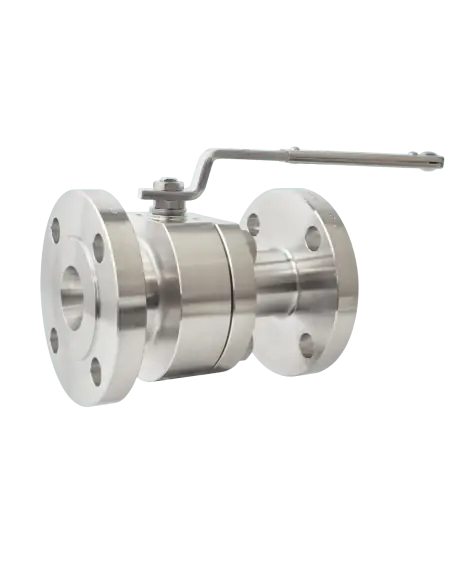

Ball Valve Venturi port - Type VE2 | ADLER

Experience Precision and Control with the Ball Valve Venturi port - Type VE2 | ADLER

Unlock new levels of performance in your industrial systems with the Ball Valve Venturi port - Type VE2 | ADLER. Designed for reliable operation and superior flow control, this valve combines innovative engineering with robust construction, making it the ideal solution for demanding industrial environments. Whether you are looking to optimize your process efficiency or ensure safety and dependability, this valve delivers top results every time.

Ball Valve Venturi port - Type VE2 | ADLER: Features and Benefits

  • Enhanced Flow Efficiency: The Venturi port design ensures a smooth, steady flow with minimal pressure loss. This means your system operates more efficiently, saving energy and reducing wear on other components.
  • Precision Control: Easily regulate the amount of fluid passing through, allowing for exact adjustments. The ball mechanism offers effortless operation, even in high-pressure scenarios.
  • Durable Construction: Crafted with high-quality materials, the valve resists corrosion and withstands harsh environments. This ensures a long-lasting performance and reduced maintenance needs.
  • Leak-Proof Reliability: The advanced sealing technology keeps connections secure, all but eliminating leaks and protecting your system.
  • Simple Integration: Compact and versatile, it's easy to install in both new and existing setups. The intuitive design means less time spent on installation and more time focused on productivity.

The Ball Valve Venturi port - Type VE2 | ADLER is purpose-built for industrial professionals who value efficiency and quality. Its innovative Venturi port not only maintains a strong and consistent flow but also allows for quick shut-off or regulation with minimal effort. This means you can react fast to changes and keep your operations running smoothly.

Suitable for a variety of industrial applications, this valve is a smart, practical choice. Its straightforward design simplifies regular maintenance, while its superior materials provide peace of mind against unexpected breakdowns. If you are seeking reliable performance and enhanced control in your industrial fluid systems, the Ball Valve Venturi port - Type VE2 | ADLER stands out as an essential addition to your facility.

Choose the Ball Valve Venturi port - Type VE2 | ADLER for an upgrade in operational precision, energy savings, and lasting dependability.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A105
  • ASTM A351 CF8M
  • ASTM A479 Type 304
  • ASTM A479 Type 304L
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE

Datasheet and documents

Description

Ball valve 2 piece “SPLIT BODY” type Venturi port, manufactured from round bar or casting, construction according to EN 12516.2; ASME B16.34; EN 1759-1 ; ASME B16.5; ISO 14313; ANSI B16.10; EN 558 (Basic series 3).

Available size from DN 40 to DN 300 in carbon steel, stainless steel adn special steel

Rating ANSI 150 (on request PN 16).

Double seals on body/end junction (patent n°00216919), chevron ring on stem.

On request :

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution according to  BS6755 API 607/6FA (patent n° 00219617)

– according to PED 14/68/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 oxigen service

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-

polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic  extension

oval handle

pneumatic actuator double/single acting

electric  actuator

manual gear box

pneumatic / electro-pneumatic positioner

Certificates

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
