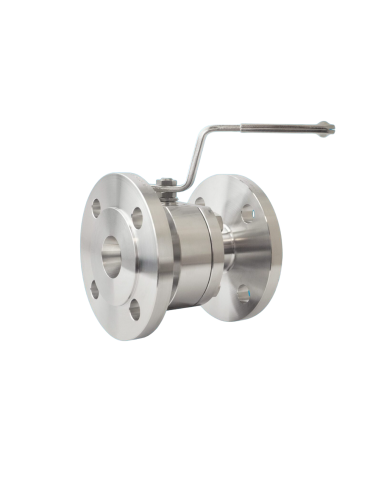

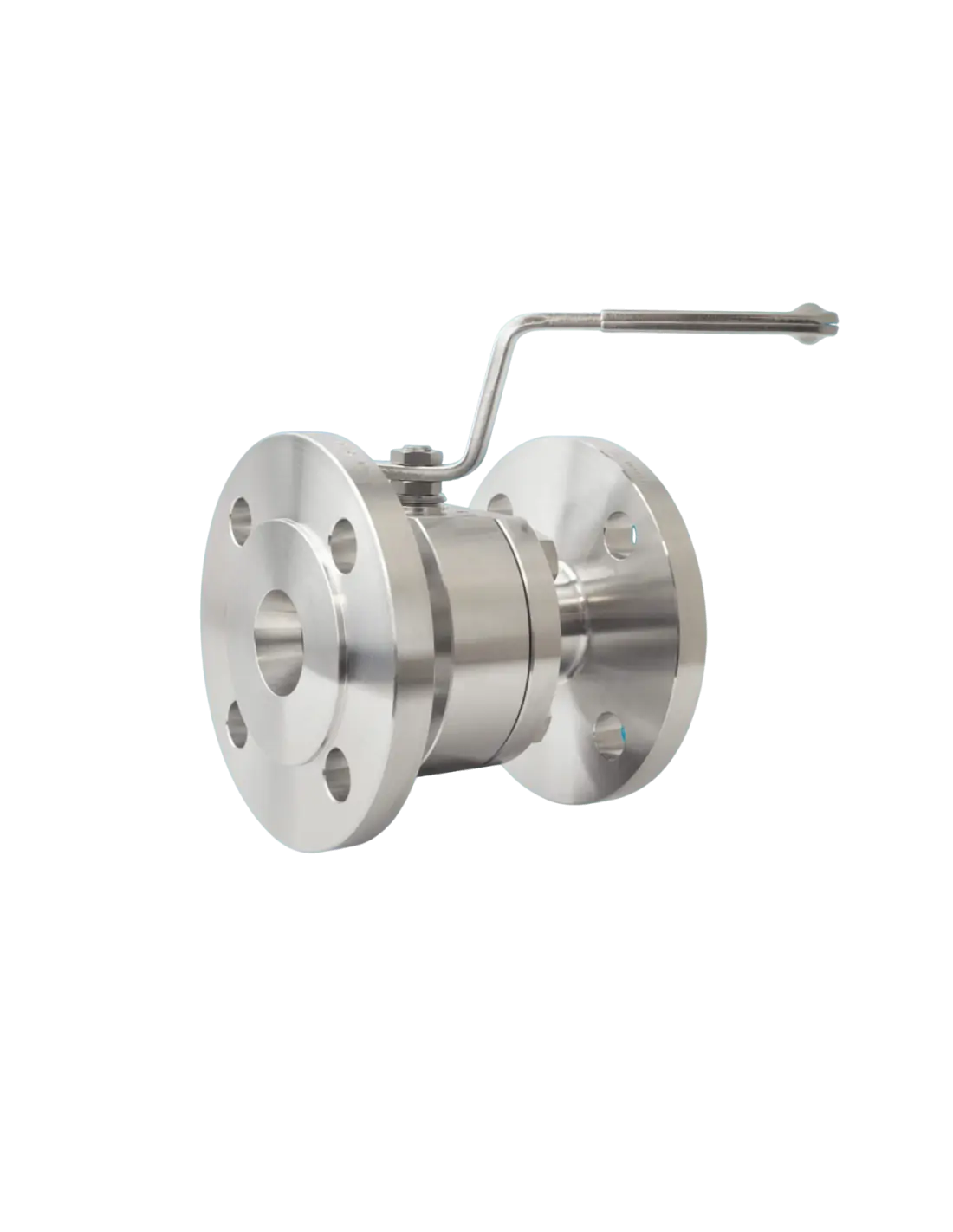

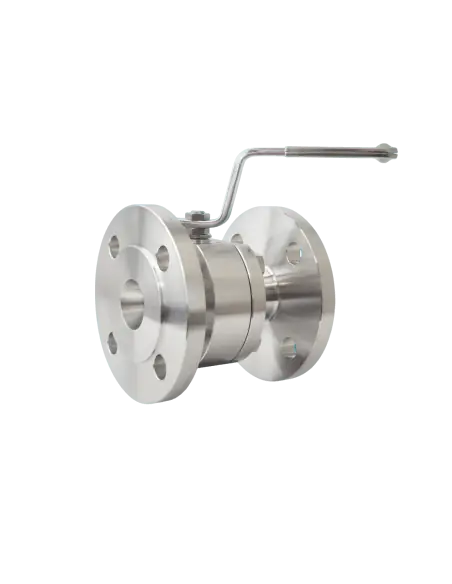

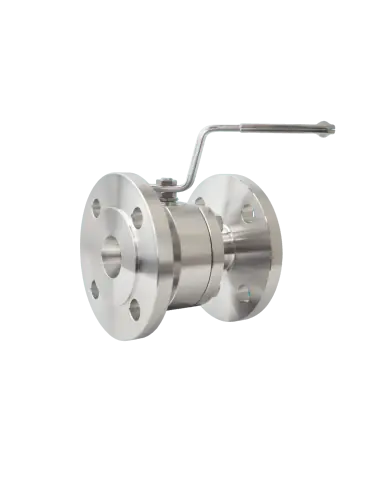

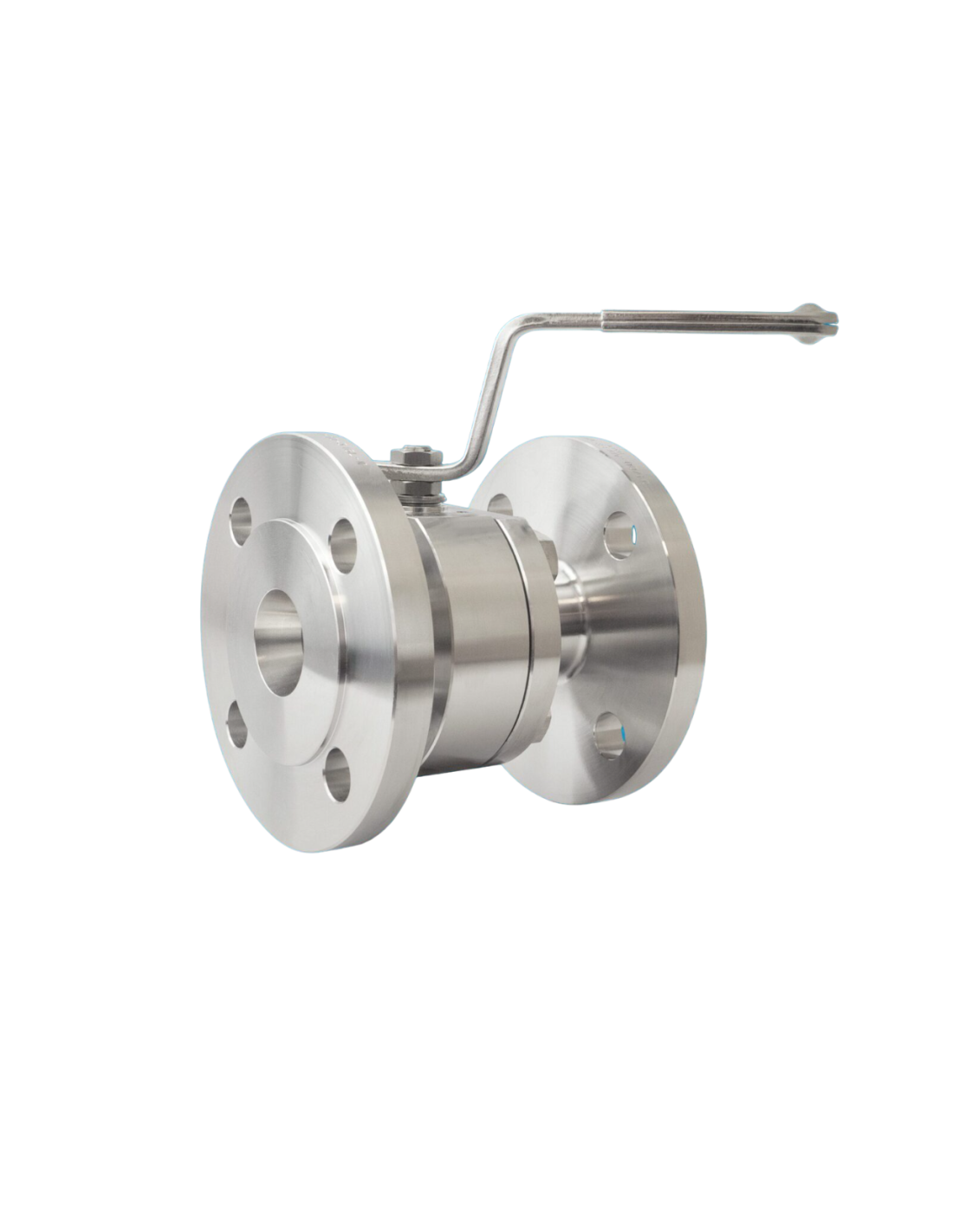

Ball Valve Venturi port - Type VM2 | ADLER

Ball Valve Venturi port - Type VM2 | ADLER: Precision Flow, Made Simple

Discover the power of precision control with the Ball Valve Venturi port - Type VM2 | ADLER. Designed for industrial use, this valve is your reliable partner for managing the flow of liquids and gases with exceptional accuracy and efficiency.

Features & Benefits: Why Choose Ball Valve Venturi port - Type VM2 | ADLER?

  • Venturi Port Technology: Enjoy better flow measurement and control. The Venturi port design ensures accurate readings and a smooth, unrestricted passage for fluids, which means less pressure drop and minimal energy loss.
  • Effortless Operation: The simple ball valve mechanism lets you open or close the flow quickly and securely. A comfortable handle provides easy manual control, even in demanding environments.
  • Robust Industrial Build: Crafted from high-quality materials, the Type VM2 stands up to tough conditions, offering excellent resistance to corrosion, wear, and extreme temperatures.
  • Enhanced Safety: With reliable sealing and secure fittings, leaks and spills are minimized, keeping your workspace safe and efficient.
  • Easy Maintenance: The straightforward design allows for quick inspection, cleaning, or replacement, keeping downtime to a minimum and productivity high.

Using the Ball Valve Venturi port - Type VM2 | ADLER is perfect for anyone—from seasoned professionals to those just starting in industrial operations. Its advanced features are designed for dependable performance, giving you confidence in every application.

If you need to regulate flow with accuracy and ease, this valve will be a valuable addition to your toolkit. Ideal for piping systems requiring precise control, it improves overall process efficiency, reduces costs, and increases safety standards.

Trust the Type VM2 for your industrial flow control needs—experience less hassle and more reliability every day.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A105
  • ASTM A351 CF8M
  • ASTM A479 Type 304
  • ASTM A479 Type 304L
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE

Datasheet and documents

Description

Ball valve 2 piece “SPLIT BODY” type Venturi port, manufactured from round bar or casted, construction in according to EN 12516.2; ASME B16.34; EN 1759-1 ; ASME B16.5; ISO 14313; EN 558 (Basic series 27).

Available size from DN 40 to DN 200 in carbon steel, stainless steel and special steel

Rating PN 10 ÷ 40.

Double seals on body/end junction (patent n°00216919)

chevron ring on stem.

On request :

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution according to  BS6755 API 607/6FA (patent n° 00219617)

– according to PED 14/68/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 oxigen service

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848Available with o’ring on stem (patent n°00219688).

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-

polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic  extension

oval handle

pneumatic actuator double/single acting

electric  actuator

manual gear box

pneumatic / electro-pneumatic positioner

Certificates

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848Available with o’ring on stem (patent n°00219688).

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
