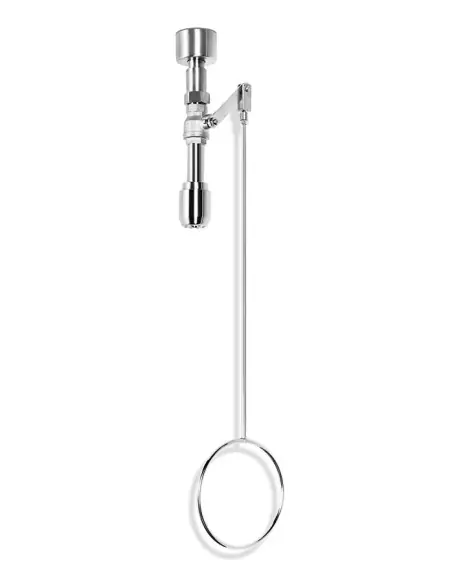

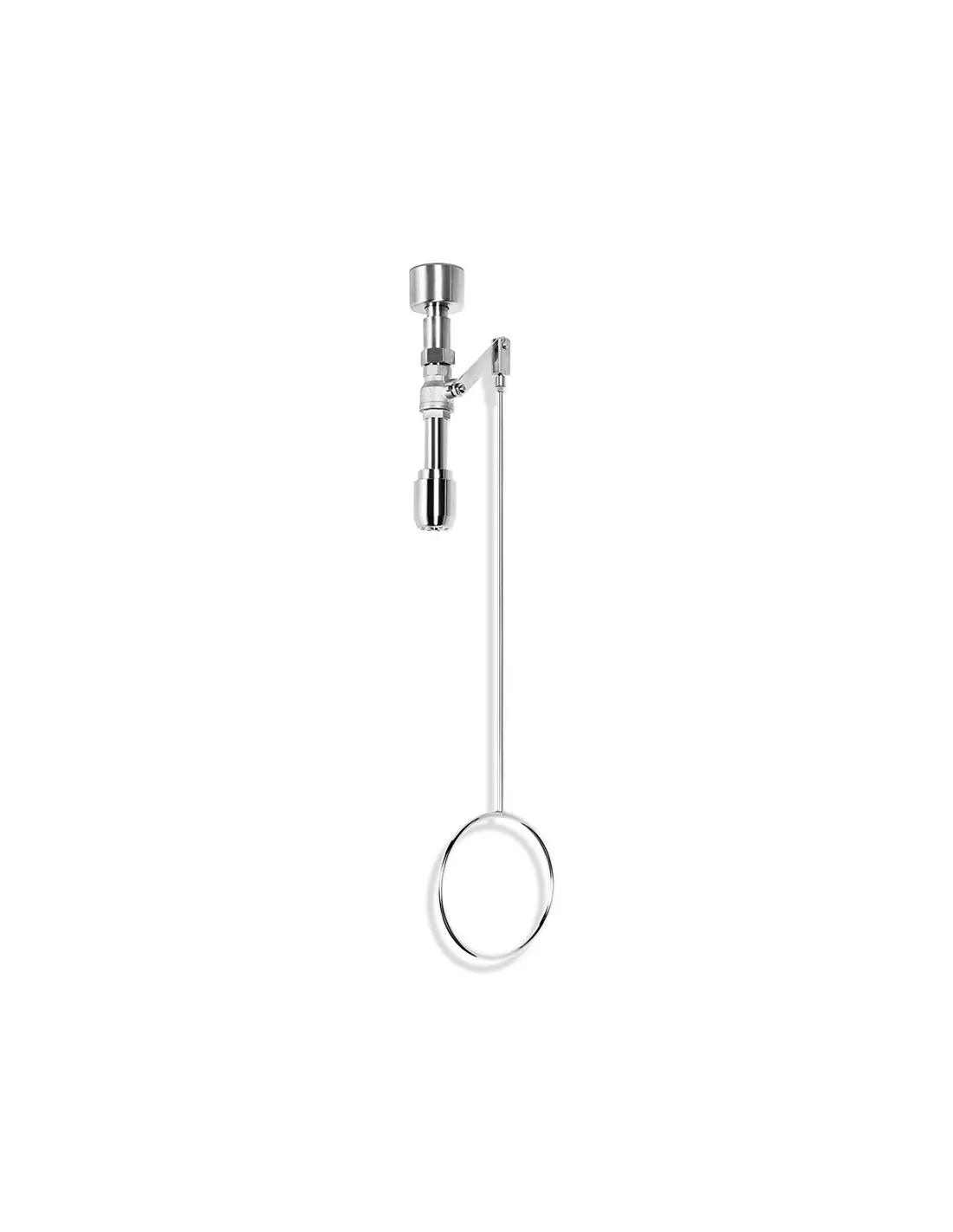

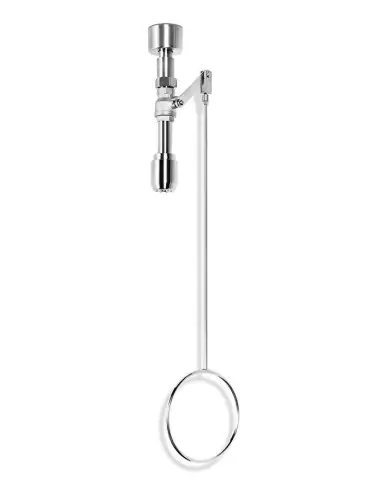

Variable body safety shower ceiling mounting, recessed version - PremiumLine - BR 083 095 / V | B-Safety | Philippopoulos s.a.
Variable body safety shower ceiling mounting, recessed version - PremiumLine - BR 083 095 / V | B-Safety | Philippopoulos s.a.
Variable body safety shower ceiling mounting, recessed version - PremiumLine - BR 083 095 / V | B-Safety | Philippopoulos s.a.
Variable body safety shower ceiling mounting, recessed version - PremiumLine - BR 083 095 / V | B-Safety | Philippopoulos s.a.

Variable body safety shower ceiling mounting, recessed version - PremiumLine - BR 083 095 / V | B-Safety

Top Safety and Flexibility: Variable body safety shower ceiling mounting, recessed version - PremiumLine - BR 083 095 / V | B-Safety

Experience the next level in workplace safety with the Variable body safety shower ceiling mounting, recessed version - PremiumLine - BR 083 095 / V | B-Safety. Designed for demanding industrial environments, this premium safety shower delivers rapid response in case of accidents involving hazardous substances. The recessed ceiling installation makes it the ideal choice for workspaces where both safety and streamlined design are essential.

Features and Benefits of the Variable body safety shower ceiling mounting, recessed version - PremiumLine - BR 083 095 / V | B-Safety

  • Space-Saving Recessed Mounting: The shower is installed into the ceiling, allowing for an uncluttered workspace without compromising safety standards. Perfect for modern labs and production areas.
  • Fast Activation: Built for immediate use, the ergonomically designed handle and reliable mechanism ensure a fast water flow in emergencies.
  • Adjustable Water Pattern: The shower head provides a wide and even water spray, guaranteeing thorough rinsing of the whole body for maximum protection.
  • High-Grade Materials: Manufactured using corrosion-resistant stainless steel and robust components, the shower is built to withstand aggressive environments over time.
  • Easy Maintenance: Thoughtful engineering allows quick access for routine checks and cleaning, reducing downtime and ensuring ongoing compliance.
  • Tested for Compliance: Meets strict international safety standards, providing peace of mind and helping you fulfill legal obligations.

The Variable body safety shower ceiling mounting, recessed version - PremiumLine - BR 083 095 / V | B-Safety is a vital addition to any facility that values employee wellbeing. Its intuitive design means that even users with no previous experience can operate it instantly. With its sleek appearance and reliable build, it is the trusted solution for industries such as chemical manufacturing, pharmaceuticals, and laboratories. Invest in safety, efficiency, and lasting quality for your team.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel
  • Surface: polished
  • Headroom: 425-1225 mm
  • Installation height: variable
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: ¾“ male

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters.

DVGW
ISO9001_D_72

Technical Description

  • connection pipe ¾“ of stainless steel, polished, length 75 mm, water inlet ¾” male
  • push-on rosette of polyamide to cover the installation
  • ball valve ¾” of stainless steel, with pull rod actuation, DIN-DVGW tested and certificated
  • pull rod with ring handle of stainless steel, polished, length variable (min. 860 mm – max. 1660 mm)
  • ceiling shower arm ¾“ of stainless steel, polished, headroom variable according to specification (min. 425 mm – max. 1225 mm)
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • mounting height according to the standards listed below: lower edge of high-performance shower head 2200 mm (± 100 mm) height above floor level
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated
