Advanced Protection in Every Workspace: Variable body safety shower above door installation - PremiumLine - BR 088 095 / V | B-Safety

The Variable body safety shower above door installation - PremiumLine - BR 088 095 / V | B-Safety delivers fast, reliable emergency protection wherever you need it most. Specially engineered for industrial use, this premium safety shower combines high-performance features with smart, space-saving design, keeping your team safe in the face of unexpected spills or accidents.

Features & Benefits: Why Choose the Variable body safety shower above door installation - PremiumLine - BR 088 095 / V | B-Safety?

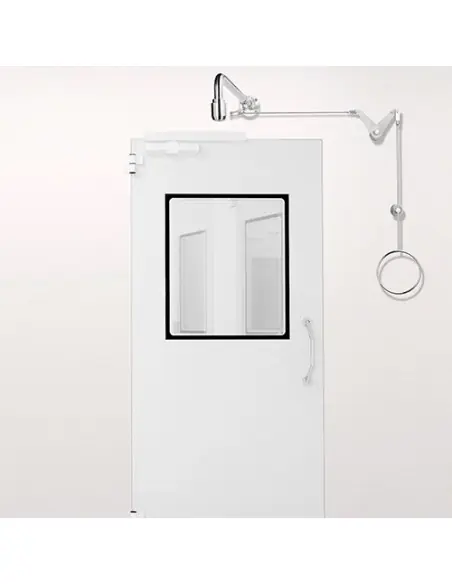

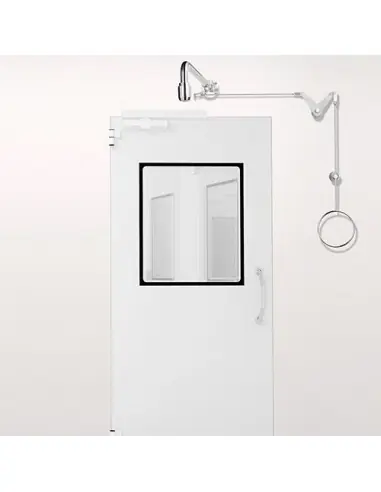

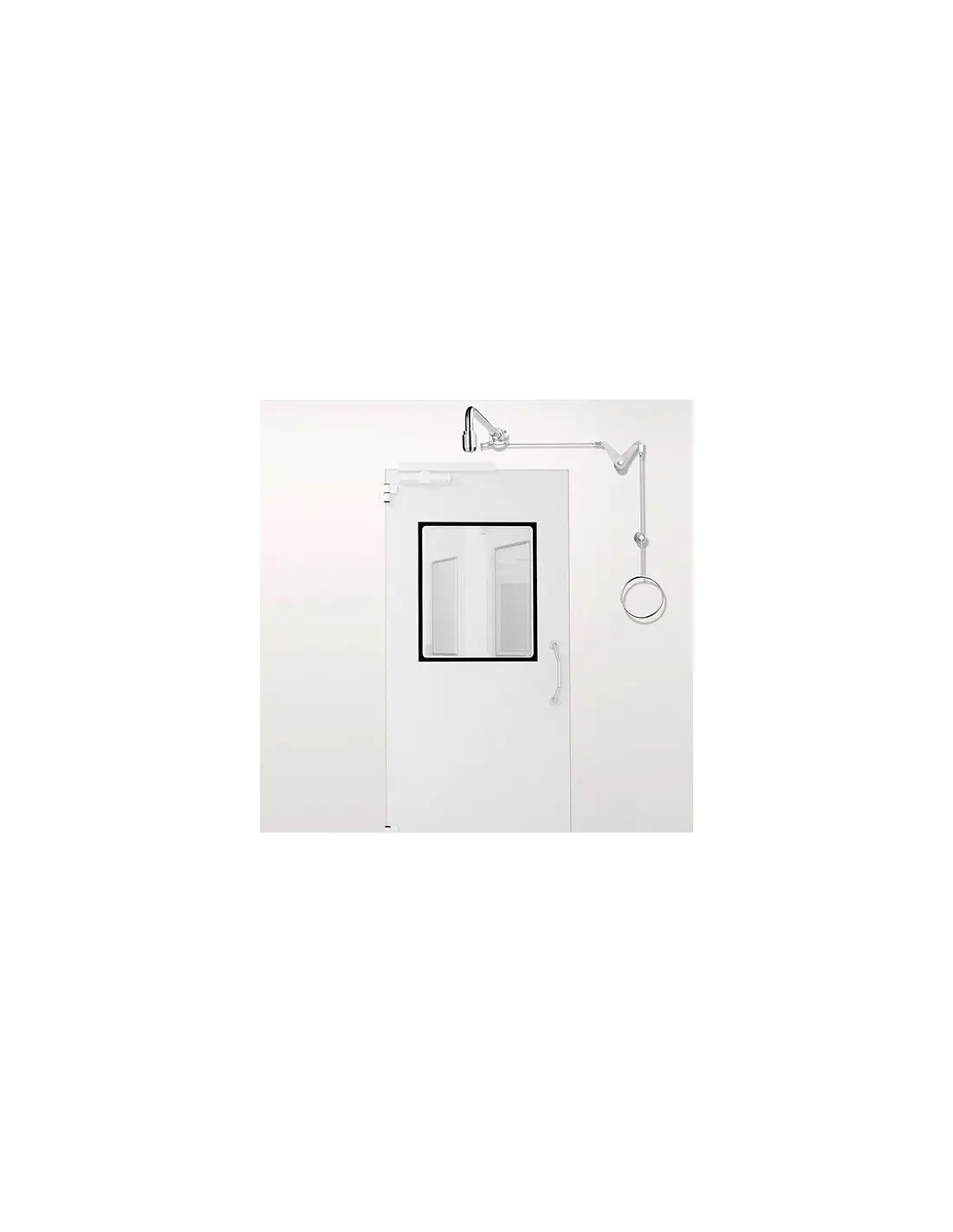

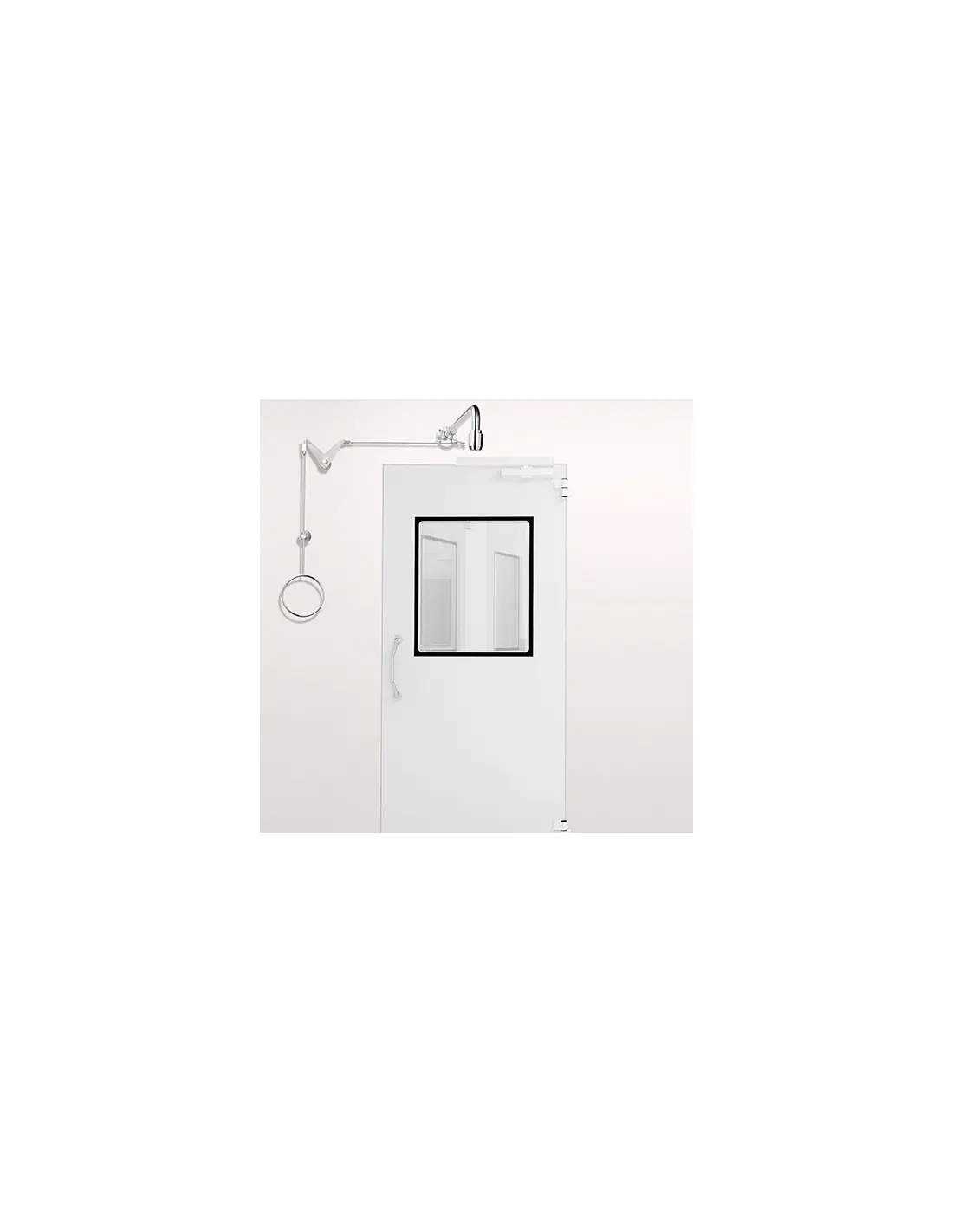

Space-Saving Installation: Designed for above-door mounting, this shower fits seamlessly into busy industrial environments. It is ideal for areas where space is limited yet safety cannot be compromised.
Rapid Response Activation: Immediate operation is crucial in emergencies. A simple pull on the lever activates a powerful and consistent water flow, helping to minimize injury by washing away hazardous substances quickly.
Adjustable Body Height: The variable shower head adjusts to accommodate users of different heights, ensuring full coverage and effective rinsing for everyone.
Robust Premium Materials: Constructed from corrosion-resistant, durable components, the shower withstands harsh chemicals and tough industrial conditions, providing long-lasting reliability and peace of mind.
Easy Maintenance: Thoughtfully designed for quick inspection and cleaning, routine upkeep is straightforward, reducing downtime and ensuring the shower is always ready for use.

With the Variable body safety shower above door installation - PremiumLine - BR 088 095 / V | B-Safety, you get a trusted solution that fits effortlessly into your safety plans. Its smart design and robust build offer practical protection and fast response in critical moments. Every detail, from the adjustable shower head to the easy-pull lever, makes it simple for any team member to use effectively, regardless of experience.

Elevate your workplace safety standards. Choose the Variable body safety shower above door installation - PremiumLine - BR 088 095 / V | B-Safety and ensure your team has dependable protection whenever they need it most.

Datasheet and documents

Description

Technical Specifications

Material: stainless steel
Surface: polished
Projection: 630 mm
Installation height: 2345 mm (± 100 mm)
Total width: 205-1500 mm
Operating pressure: 1.5 to 3 bar
Flow rate: 50 l/min (75/110 l/min)
Water inlet: ¾“ female

Norms / Approvals

EN 15154-2:2006
EN 15154-5:2019
ANSI Z358.1-2014
DIN-DVGW, DVGW, NW-0416CL0425
GOST-R, Certificate-No. 0615463 0615463

Product description

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters.

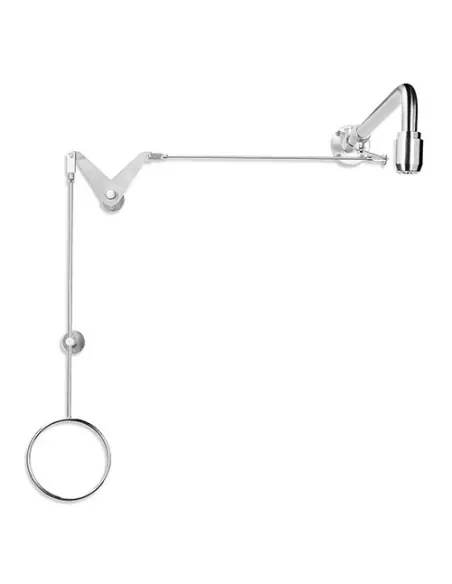

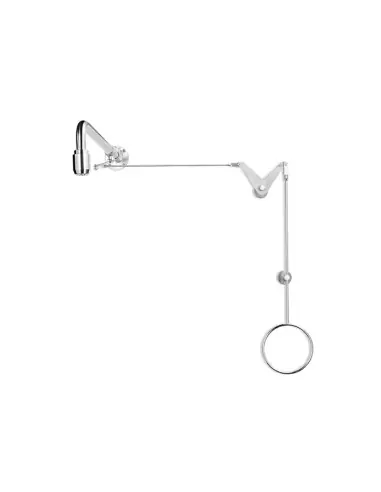

Technical Description

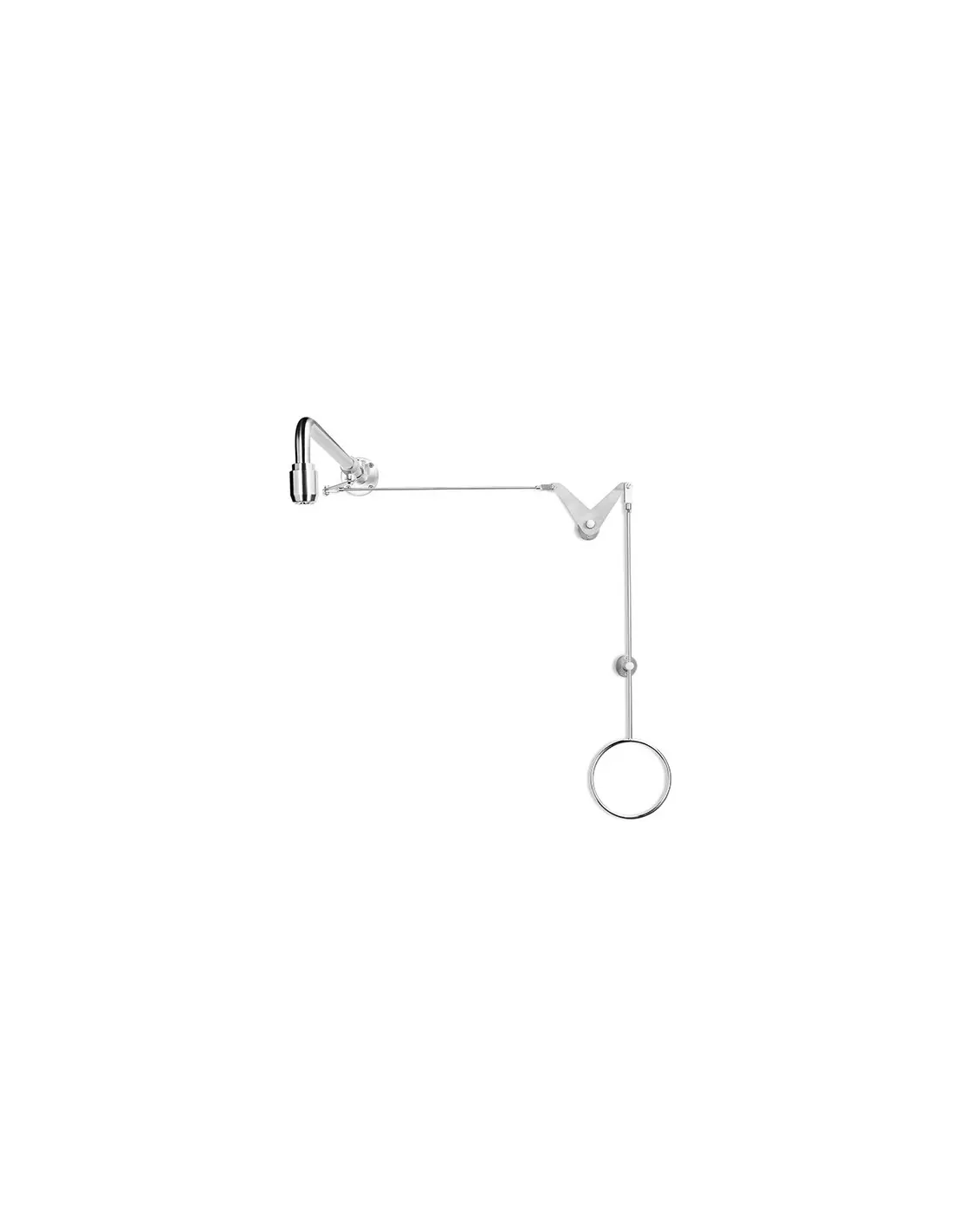

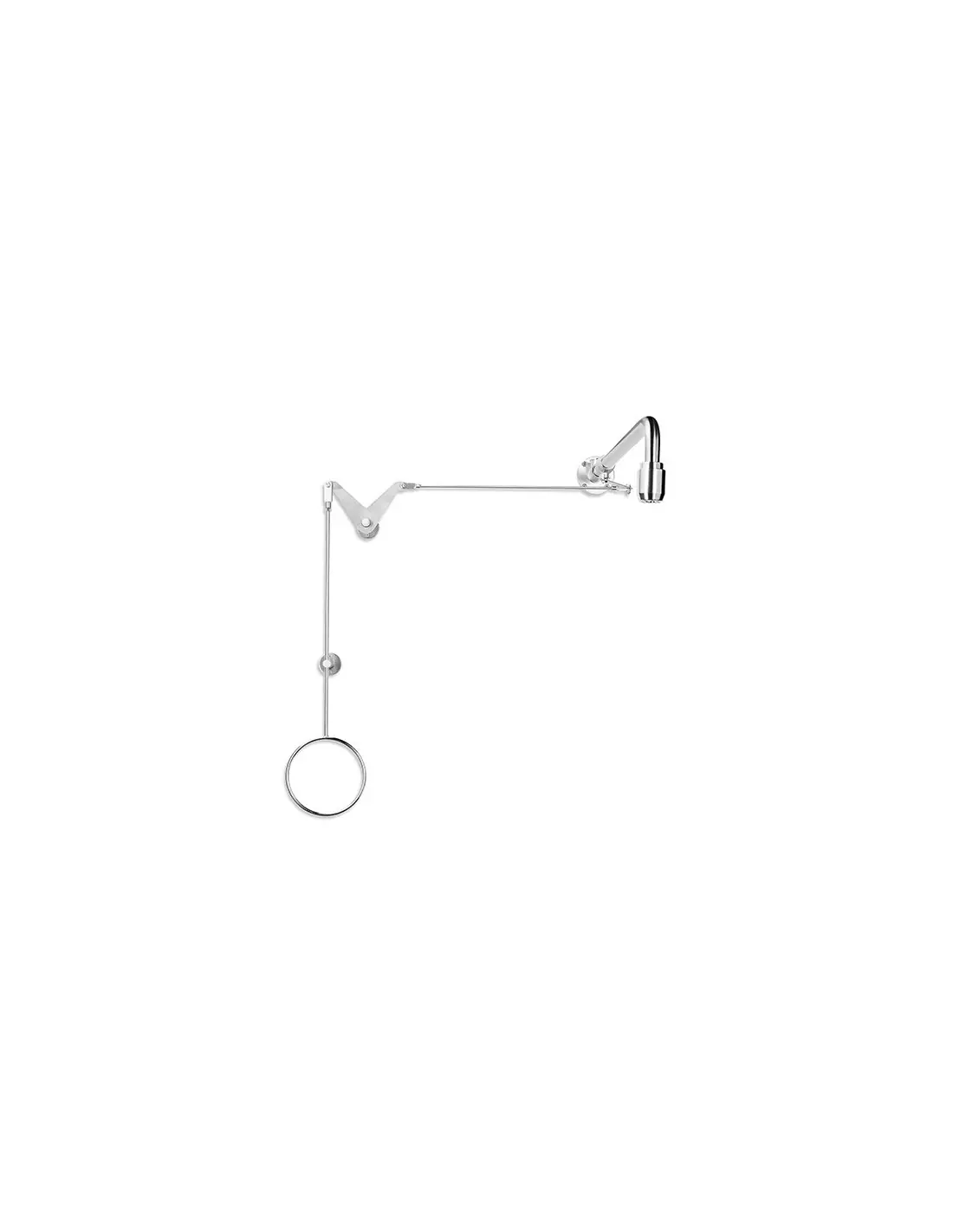

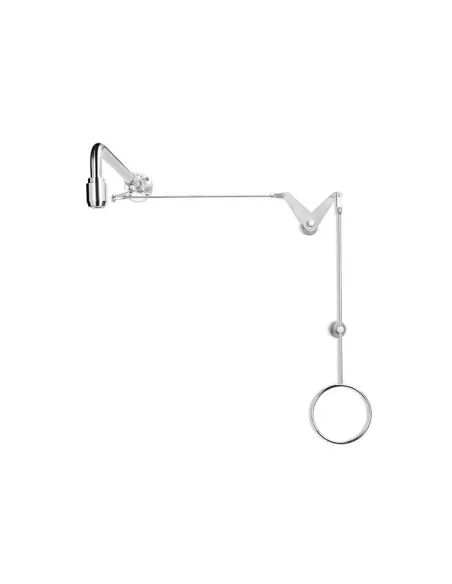

wall flange with 4 mounting holes of stainless steel, polished, water inlet ¾” female
connection pipe ¾“ of stainless steel, polished, length 75 mm

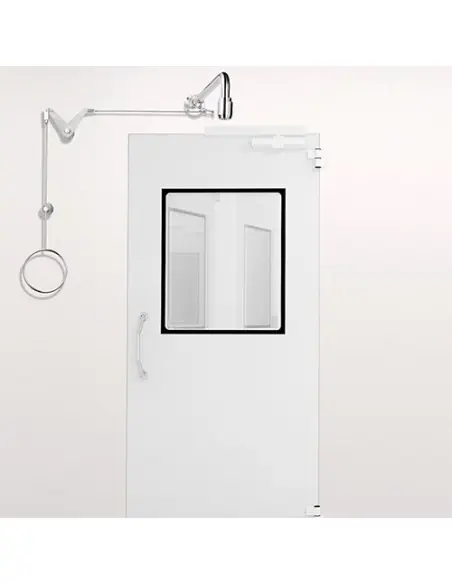

ball valve of stainless steel, DIN-DVGW tested and certificated, with pull rod angle-diversion and wall bracket, length variable according to specification (total width min. 205 mm – max. 1500 mm), can be mounted either on the right or left side of the door
pull rod with ring handle of stainless steel, polished, length 700 mm
holder for pull rod made of stainless steel, polished
wall shower arm ¾“ of stainless steel, polished, projection 630 mm
integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
mounting height 2345 mm (± 100 mm)
according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
DIN-DVGW tested and certificated

Certification

DVGW ISO9001_D_72
