Variable body safety shower above door installation - ClassicLine - BR 088 085 / V | B-Safety: Reliable Protection, Smart Design

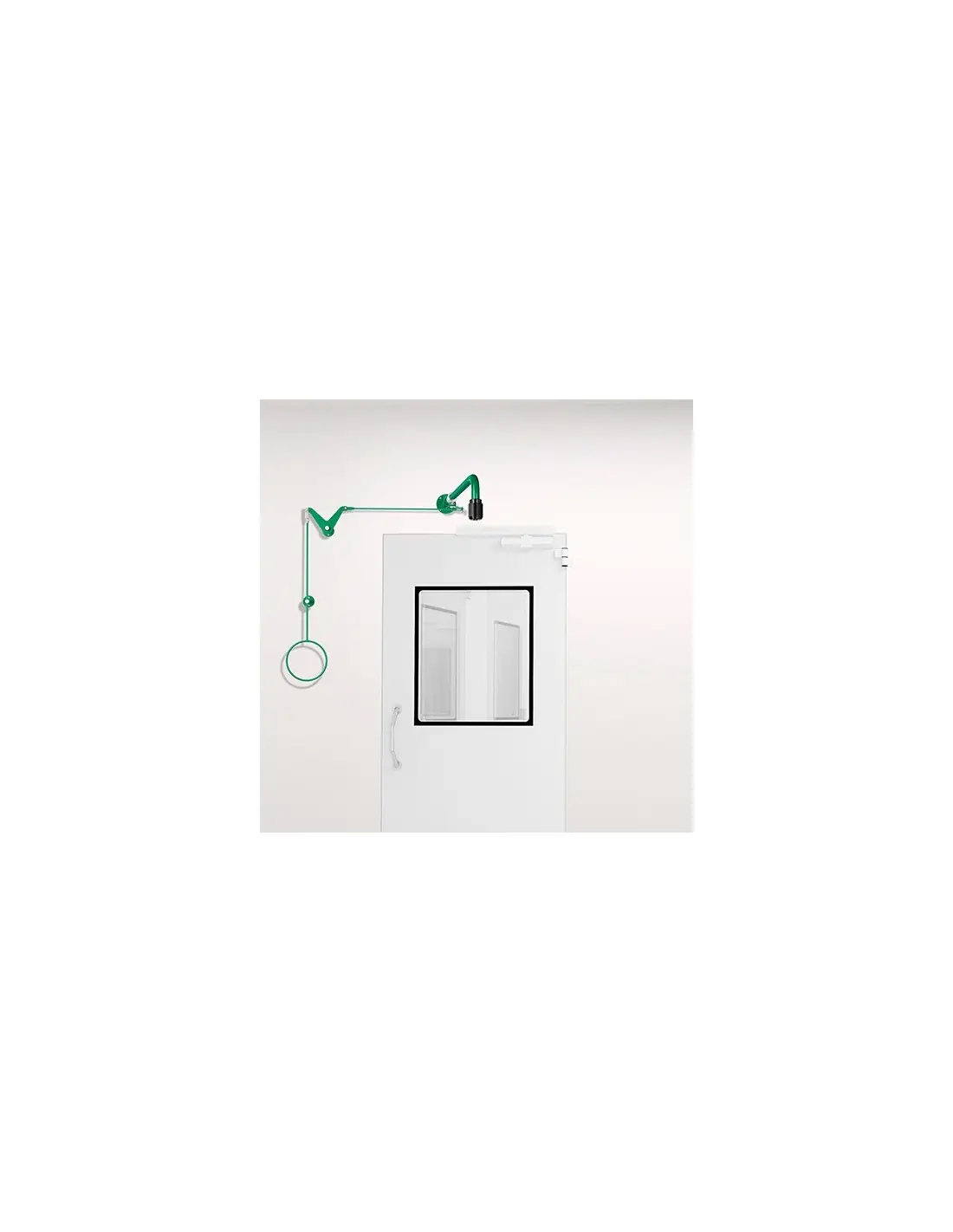

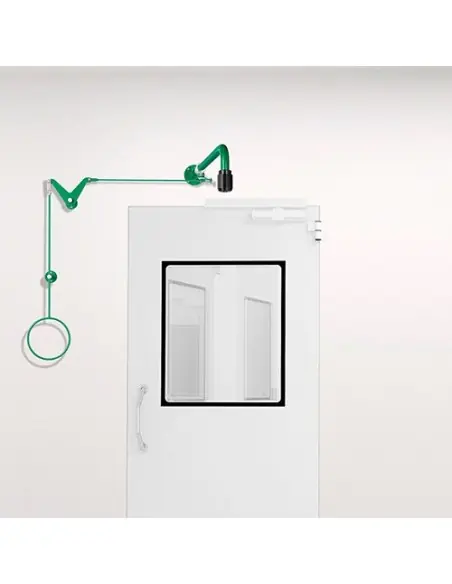

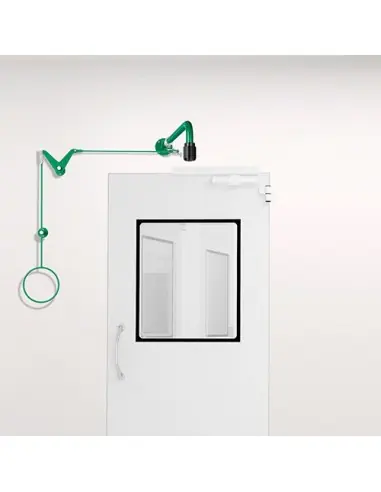

The Variable body safety shower above door installation - ClassicLine - BR 088 085 / V | B-Safety is designed for industrial environments where immediate first aid is essential. This innovative safety shower installs directly above doors, making it perfect for facilities with limited space or unique layouts. Its smart, space-saving design ensures employees always have instant access to effective emergency decontamination.

Features & Benefits of the Variable body safety shower above door installation - ClassicLine - BR 088 085 / V | B-Safety

Efficient Space Utilisation: Mounted above doors, this shower maximises working areas while ensuring optimal accessibility in case of emergencies.
Rapid Activation: A pull-rod or lever offers instant water flow, allowing users to react quickly when every second counts.
Reliable Performance: Engineered for continuous, reliable operation, providing peace of mind for safety managers and staff alike.
Uniform Water Distribution: The precision-designed shower head delivers a consistent, full-body spray, ensuring thorough rinsing of hazardous substances.
Highly Visible Design: Bold colours and clear markings make the shower easy to locate, even in stressful situations or low-light conditions.
Easy Maintenance: Simple construction allows for quick inspections and easy cleaning, keeping the unit ready for use at all times.
Durable Construction: Built from high-quality materials, the ClassicLine model resists corrosion and heavy industrial wear, guaranteeing long-lasting safety for your team.
Flexible Installation: Suitable for a range of door sizes and facility types, whether in chemical plants, laboratories, or industrial workshops.

Investing in the Variable body safety shower above door installation - ClassicLine - BR 088 085 / V | B-Safety means choosing dependable performance and thoughtful design. It empowers employees to act quickly and confidently, minimising harm from dangerous spills or splashes. By prioritising safety, your business protects its most valuable resource—its people—while meeting all industrial safety standards.

Install the ClassicLine - BR 088 085 / V | B-Safety shower above your doors and experience the perfect blend of space efficiency, safety, and hassle-free operation. Your workplace deserves no compromise on safety—make the smart choice today.

Datasheet and documents

Description

Technical Specifications

Material: stainless steel, plastic
Color: green, black
Projection: 630 mm
Installation height: 2345 mm (± 100 mm)
Total width: 205-1500 mm
Operating pressure: 1.5 to 3 bar
Flow rate: 50 l/min (75/110 l/min)
Water inlet: ¾“ female

Norms / Approvals

EN 15154-2:2006
EN 15154-5:2019
ANSI Z358.1-2014
DIN-DVGW, DVGW, NW-0416CL0425
GOST-R, Certificate-No. 0615463 0615463

Product description

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters.

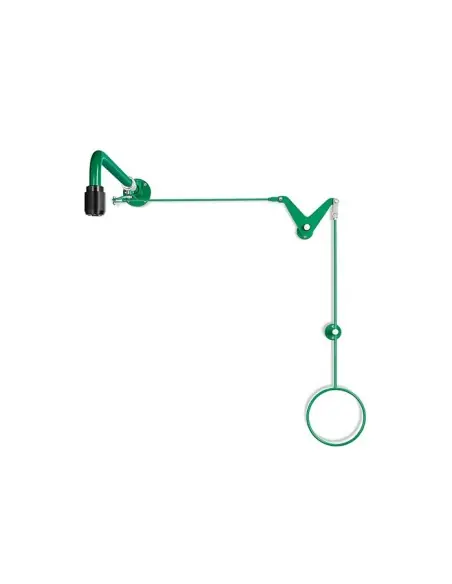

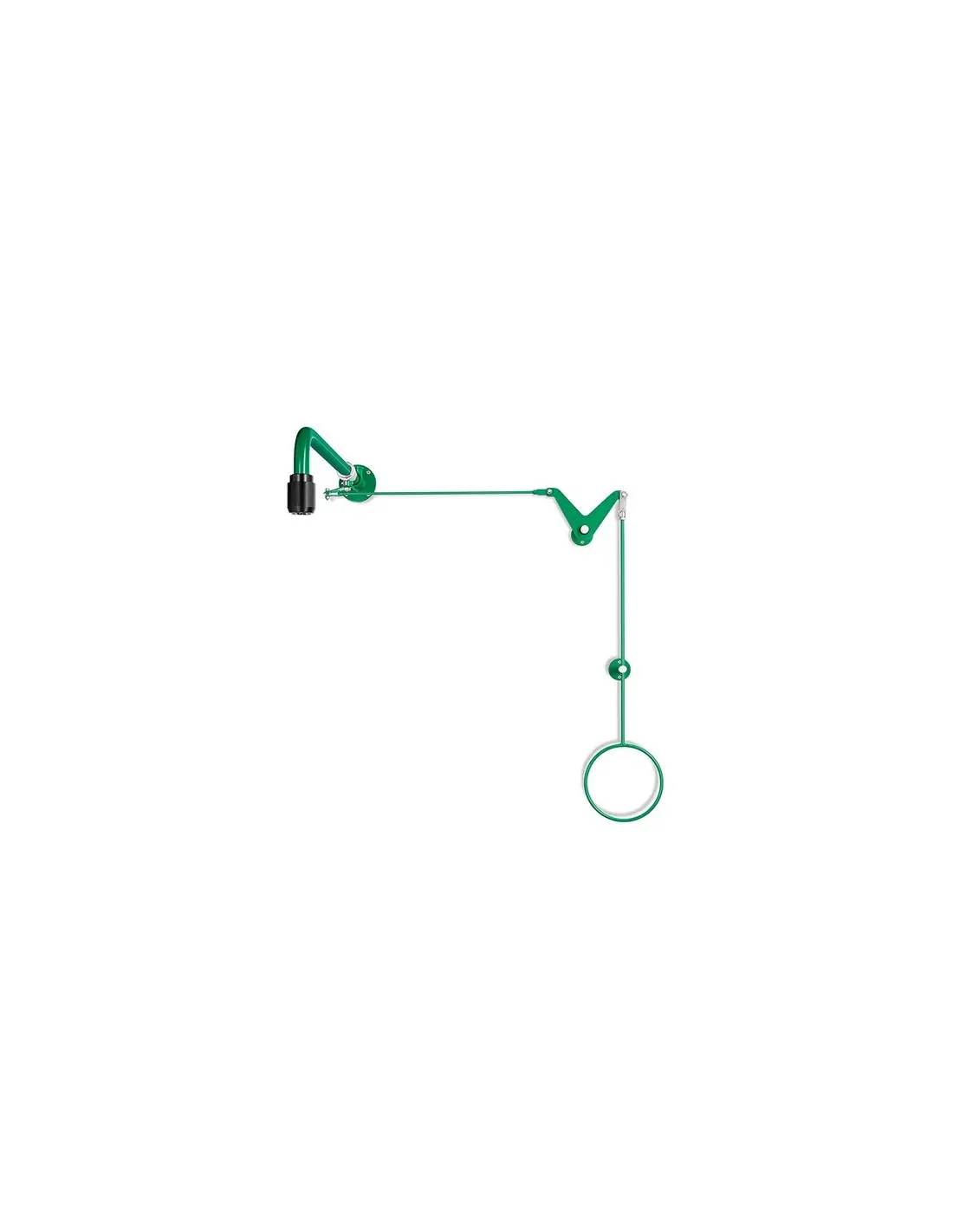

Technical Description

wall flange with 4 mounting holes of stainless steel, chemical resistant green powder coated, water inlet ¾” female
connection pipe ¾“ of stainless steel, chemical resistant green powder coated, length 75 mm
ball valve made of dezincification-resistant brass, DIN-DVGW tested and certificated, with pull rod angle-diversion and wall bracket, length variable according to specification (total width min. 205 mm – max. 1500 mm), can be mounted either on the right or left side of the door
pull rod with ring handle of stainless steel, chemical resistant green powder coated, length 700 mm
holder for pull rod made of steel, chemical resistant green powder coated
wall shower arm ¾“ of stainless steel, chemical resistant green powder coated, projection 630 mm
integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
high-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
mounting height 2345 mm (± 100 mm)
according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
DIN-DVGW tested and certificated

Certification

DVGW ISO9001_D_72
