B-Safety BR 089 085 / V ClassicLine

Adjustable emergency body shower for suspended ceiling or false ceiling installation, featuring variable piping geometry. The “V” variant refers to installation length and height adaptation; user flow adjustment is not provided. The lower edge of the shower head is specified at 2200 mm ±100 mm from finished floor level.

Technical Data

Operating dynamic pressure: 1.5–3 bar
Nominal flow rate: 50 l/min
Alternative variants: 75 l/min / 20 GPM and 110 l/min
Overall width: 285–1535 mm
Pull rod: variable length 710–2040 mm
Headroom: 425–1225 mm (brochure); 360–1610 mm (technical spec). Final installation height to be confirmed at order stage.

Construction

Connection adapter: Stainless steel AISI 304
Piping and ceiling flanges: AISI 304 with green chemically resistant coating
Double nipple: AISI 316
Escutcheons: AISI 316 for penetration and finish at false ceiling
Pull rod: AISI 201
Ball valve ¾": DZR brass CW724R
Shower head: POM, self-draining

Hydraulic Operation

Integrated automatic flow regulator maintains spray pattern within 1.5–3 bar. Flow variants correspond to hazard class I (50 l/min), class II (75 l/min), and class III (110 l/min) per EN 15154-5:2019.

Standards and Accessories

Compliant with EN 15154-2:2006, EN 15154-5:2019, ANSI Z358.1-2014, DIN 1988, EN 1717, DIN-DVGW / DVGW NW-0417CL0263. Available options: floor activation cable, dual-ring pull rod 1150 mm, service shut-off ¾", thermostatic mixing 20–43 °C, IP65 flow switch, EX zone 1 & 2 variant, 230 V / 50 Hz alarm.

Datasheet and documents

Description

Technical Specifications

Material: stainless steel, plastic
Color: green, black
Headroom: 360-1610 mm
Installation height: variable
Total width: 285-1535 mm
Operating pressure: 1.5 to 3 bar
Flow rate: 50 l/min (75/110 l/min)
Water inlet: ¾“ female

Norms / Approvals

EN 15154-2:2006
EN 15154-5:2019
ANSI Z358.1-2014
DIN-DVGW, DVGW, NW-0416CL0425
GOST-R, Certificate-No. 0615463 0615463

Product description

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters.

Technical Description

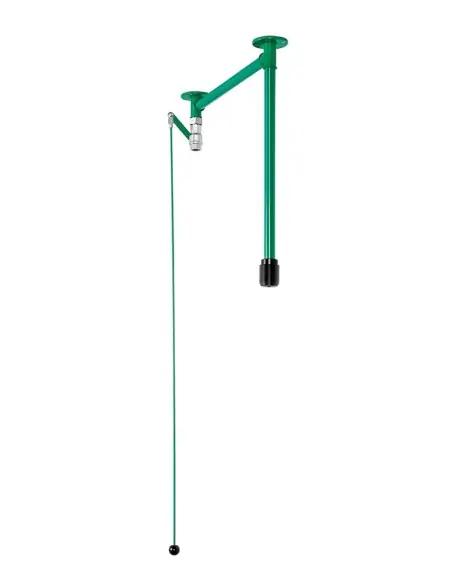

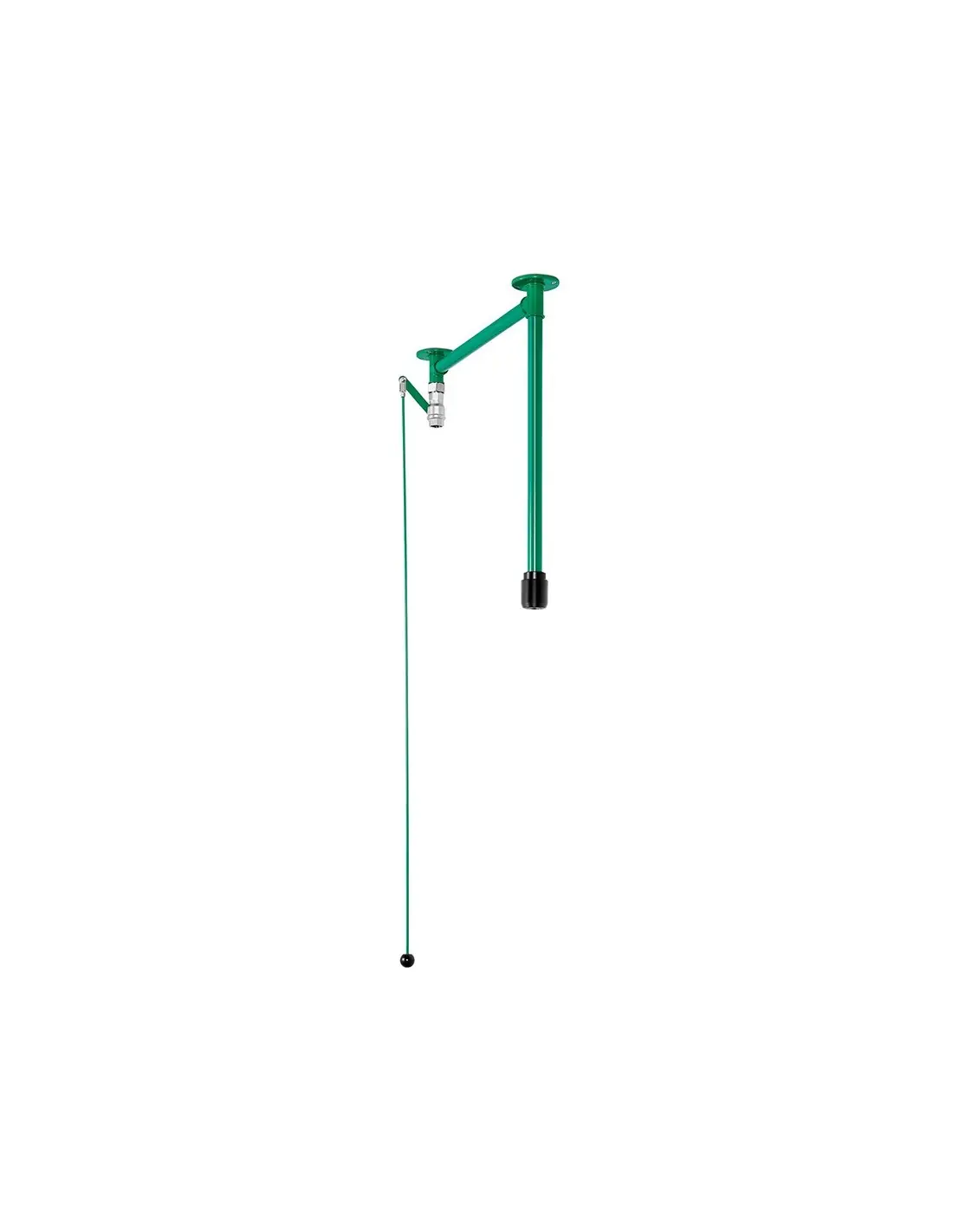

connection adapter of stainless steel, polished, with integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure, water inlet ¾” female
ball valve ¾” made of dezincification-resistant brass, with pull rod actuation, DIN-DVGW tested and certificated
pull rod with ball handle of stainless steel, length variable (min. 710 mm – max. 2040 mm)
slotted stainless steel rosette for passage through the suspended ceiling
double nipple ¾” of stainless steel
ceiling flange with 4 mounting holes of stainless steel, chemical resistant green powder coated
connection pipe ¾“ of stainless steel, chemical resistant green powder coated, length variable according to specification (total width min. 285 mm – max. 1535 mm)
ceiling flange with 4 mounting holes of stainless steel, chemical resistant green powder coated
connection pipe ¾“ of stainless steel, chemical resistant green powder coated, headroom variable according to specification (min. 360 mm – max. 1610 mm)

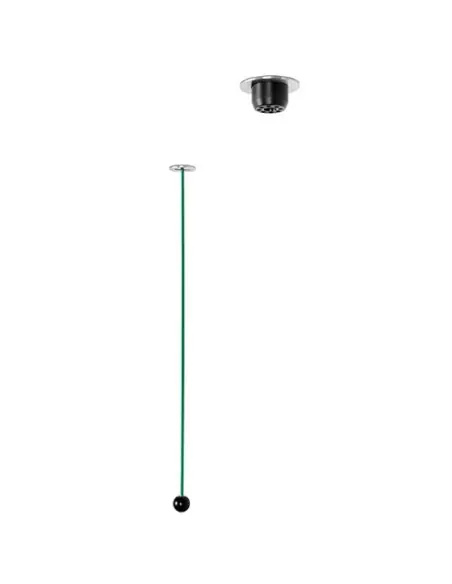

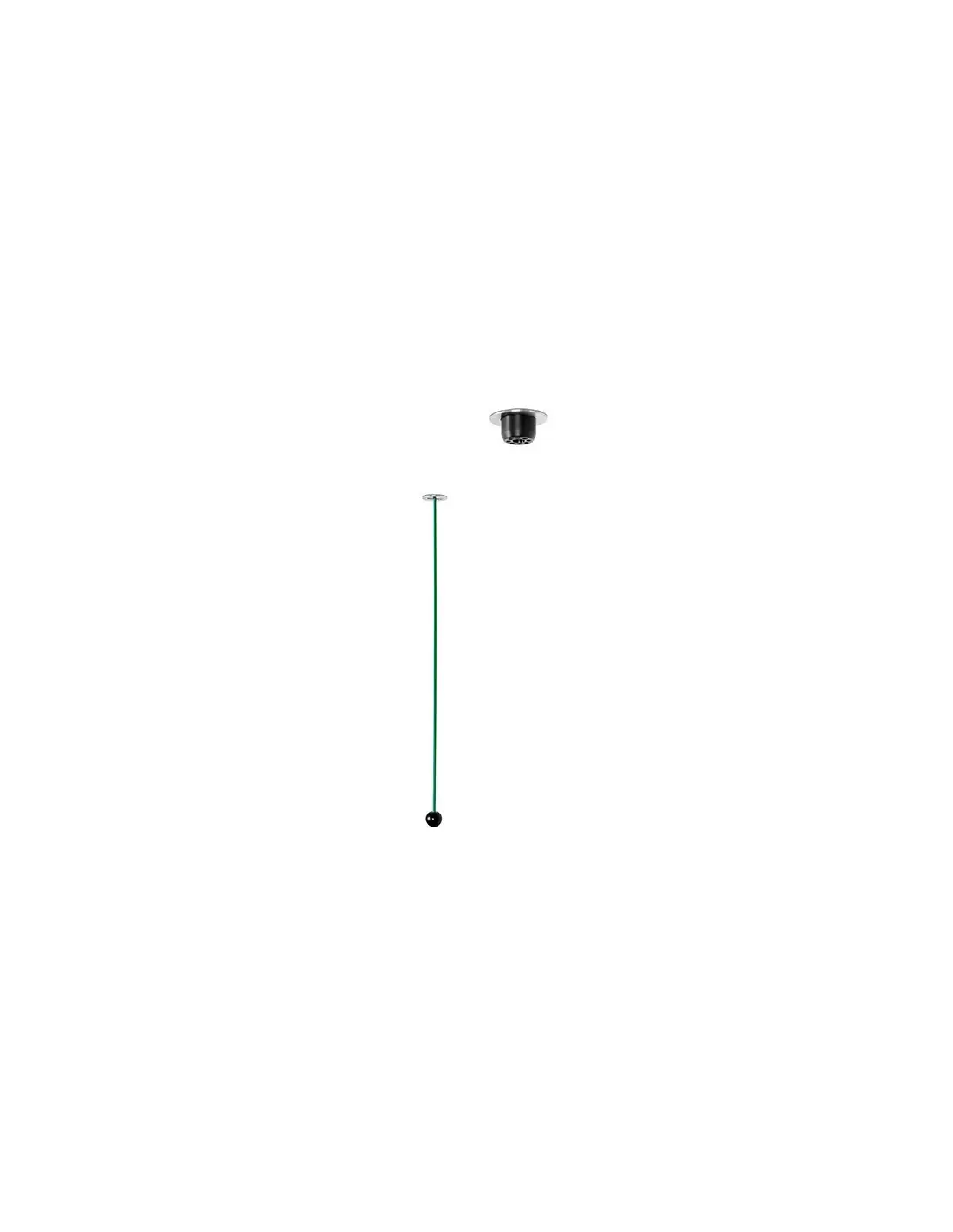

high-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
round rosette of stainless steel for installation of the shower head in the suspended ceiling
sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
mounting height according to the standards listed below: lower edge of high-performance shower head 2200 mm (± 100 mm) height above floor level
according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
DIN-DVGW tested and certificated

Certification

DVGW ISO9001_D_72
