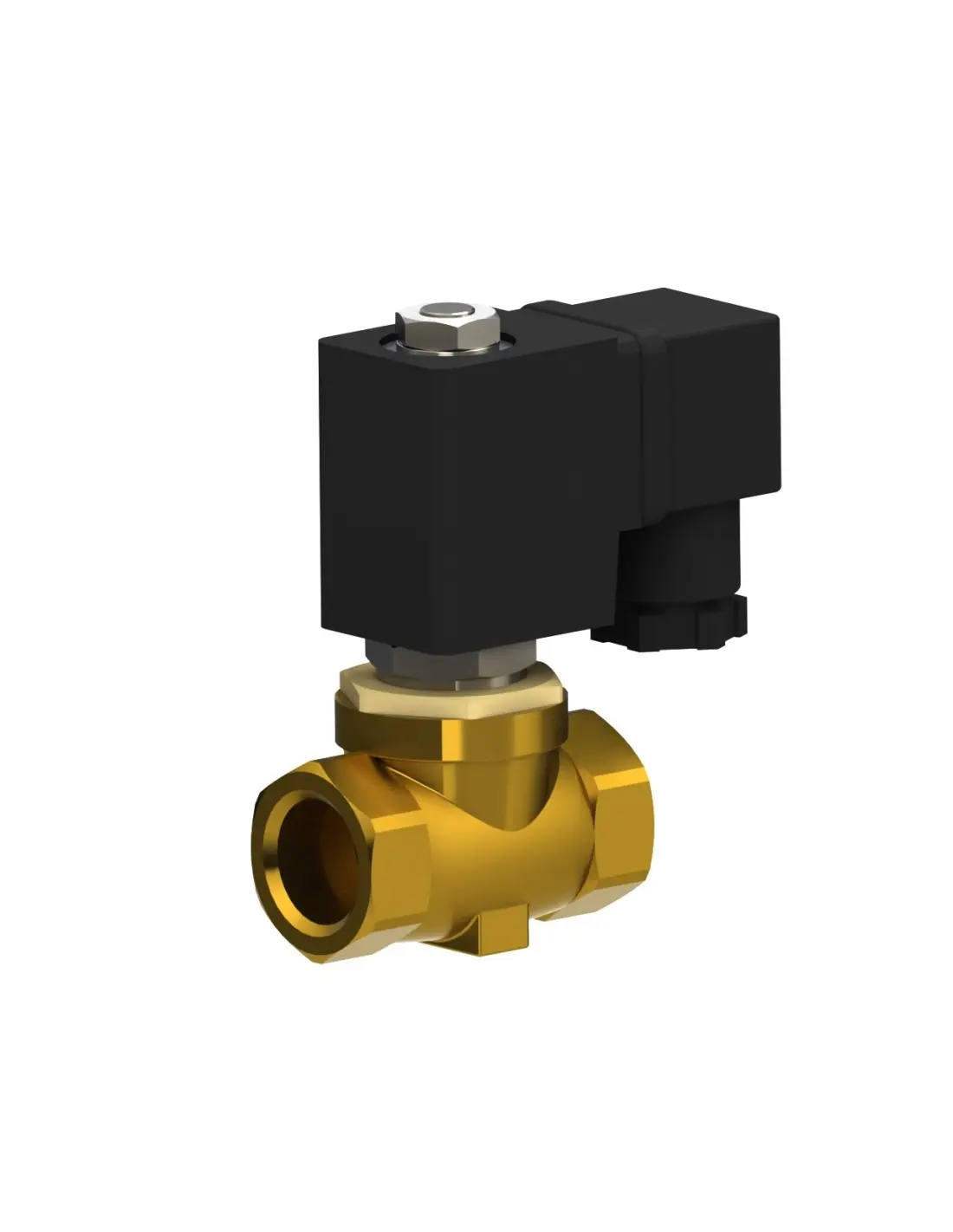

Electromagnetic Diaphragm Valve 2/2 AWS Type 220
The AWS Type 220 is a 2/2-way seat valve with diaphragm sealing, pilot-operated, in NC operation. Requires a minimum differential pressure of 0.1 bar between inlet and outlet for opening/closing, thus not selected for zero Δp circuits or for draining non-pressurized vessels.
Technical Data
- DN 10.5 in brass, DN 8 in stainless steel 1.4408
- Operating pressure: 0.1–16 bar, reduced to 10 bar in DC
- Connections: G 1/4”, G 3/8”, G 1/2”
- Body and cover: brass or 1.4408
- Seals: NBR, EPDM, FKM
- Medium temperature: -10 to +130 °C, depending on sealing material
- Ambient temperature: up to +50 °C
- Electrical connection: DIN EN 175301-803 Form A
- Power supply: 230 V AC 50/60 Hz, 24 V DC or special voltages
- Protection: IP65 with plug mounted
Kv by Execution
| Body Material | DN | Connection | Kv |
|---|---|---|---|
| Brass | 10.5 | G 1/4” | 1.26 m³/h |
| Brass | 10.5 | G 3/8” | 1.44 m³/h |
| Brass | 10.5 | G 1/2” | 1.50 m³/h |
| 1.4408 | 8 | G 1/4”–G 1/2” | 1.03 m³/h |
Seal Selection
NBR covers applications up to +90 °C, EPDM up to +130 °C, and FKM up to +120 °C. The declared leakage class is A according to EN 12266-1.
Industrial Use
Suitable for clean water, neutral fluids, compressed air, and compatible gases without solids. Used in filling lines, process water networks, auxiliary circuits, industrial skids, and automation where inlet pressure is available.
Installation and Limitations
Flow direction follows the arrow on the body. Instructions indicate valves are not suitable for back pressure. Depressurization, cooling, flushing, and securing the installation are required before maintenance.
Options
NPT connection, plug with LED, oil/grease-free or silicone-free cleaning, special voltages, fully encapsulated coils with cable, and Ex coil II 2G Ex mb IIC T4 Gb / II 2D Ex mb tb IIIC T130°C Db.
