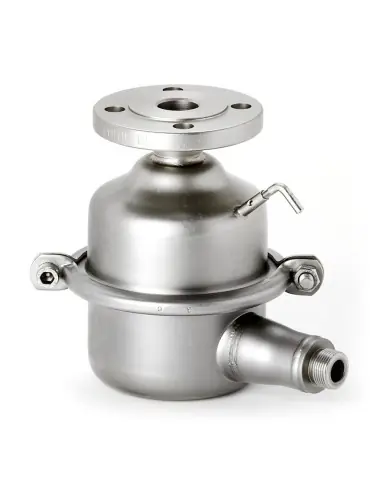

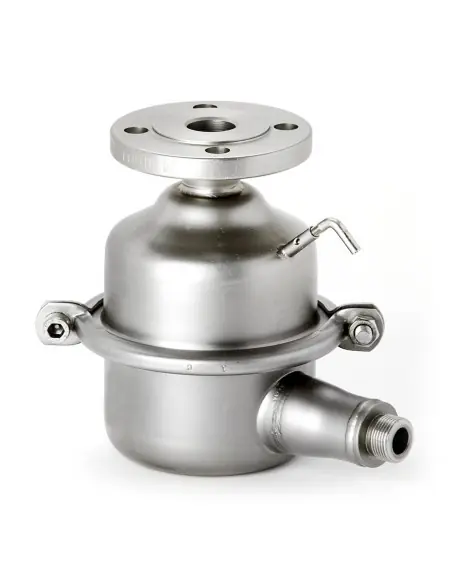

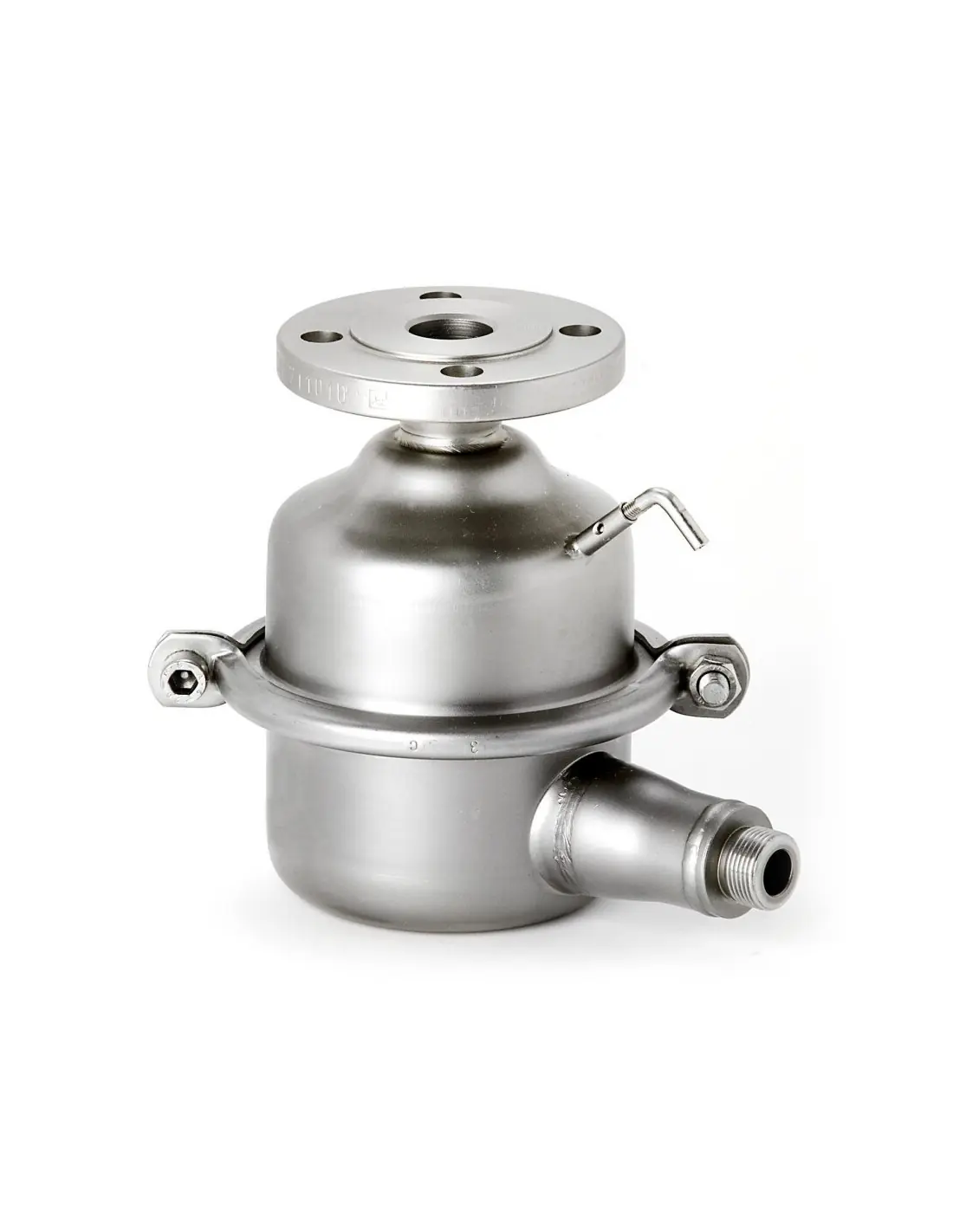

Steam Traps - KA 2 | Mankenberg

Steam Traps - KA 2 | Mankenberg: Advanced Efficiency for Industrial Steam Systems

Experience reliable and efficient steam management with the Steam Traps - KA 2 | Mankenberg. Designed specifically for industrial use, this steam trap stands out due to its precision engineering, durable construction, and intelligent performance. The KA 2 ensures your steam system operates smoothly by automatically removing condensate and non-condensable gases without wasting valuable steam. It maximizes efficiency, cuts costs, and protects your equipment from water hammer and corrosion—critical factors in any demanding industrial process.

Key Features and Benefits of Steam Traps - KA 2 | Mankenberg

  • Robust Stainless Steel Body: Resists corrosion and stands up to harsh industrial environments, ensuring long-lasting performance with minimal maintenance.
  • Automatic Operation: The KA 2 intelligently distinguishes between steam and condensate, discharging only the latter. This automatic action conserves energy by preventing steam loss and improves overall system efficiency.
  • Wide Pressure and Temperature Range: Built to handle a variety of industrial applications, the KA 2 adapts seamlessly to different pressure and temperature requirements, offering unmatched versatility.
  • Compact and Lightweight: Its space-saving design allows for easy installation even in tight spaces, making it perfect for retrofits and upgrades.
  • Low Maintenance: With its self-cleaning mechanism, the KA 2 reduces the need for frequent servicing, cutting down on downtime and maintenance costs.
  • High Reliability: Dependable performance minimizes the risk of equipment damage due to trapped condensate or pressure fluctuations.

The Steam Traps - KA 2 | Mankenberg is the smart choice for industries seeking a combination of durability, precision, and energy savings. Its advanced features deliver peace of mind, knowing your steam system is optimized for peak performance every day. Upgrade your industrial processes with a steam trap designed for the future—experience the KA 2 difference today.

Datasheet and documents

Description

Product features

Steam traps automatically drain condensate without loss of steam or gas. They operate instantaneously and are not affected by backpressure or pressure fluctuations. They do not require an external energy input.

Standard

  • Completely made of stainless steel
  • Deep-drawn body with excellent surface quality
  • Corrosion-resistant, very lightweight and compact
  • Soft seal
  • Manual bleed valve
  • Quick-release body clamp ring

Options

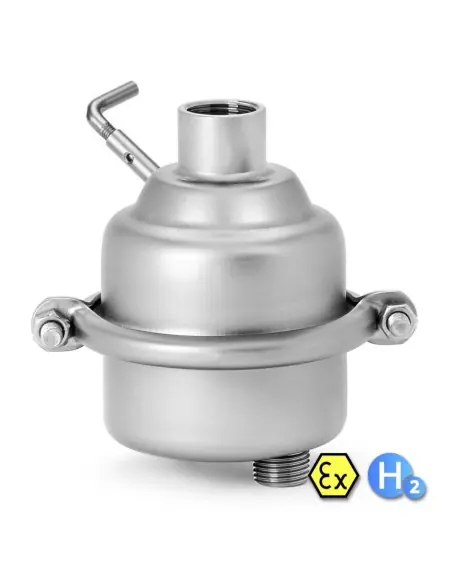

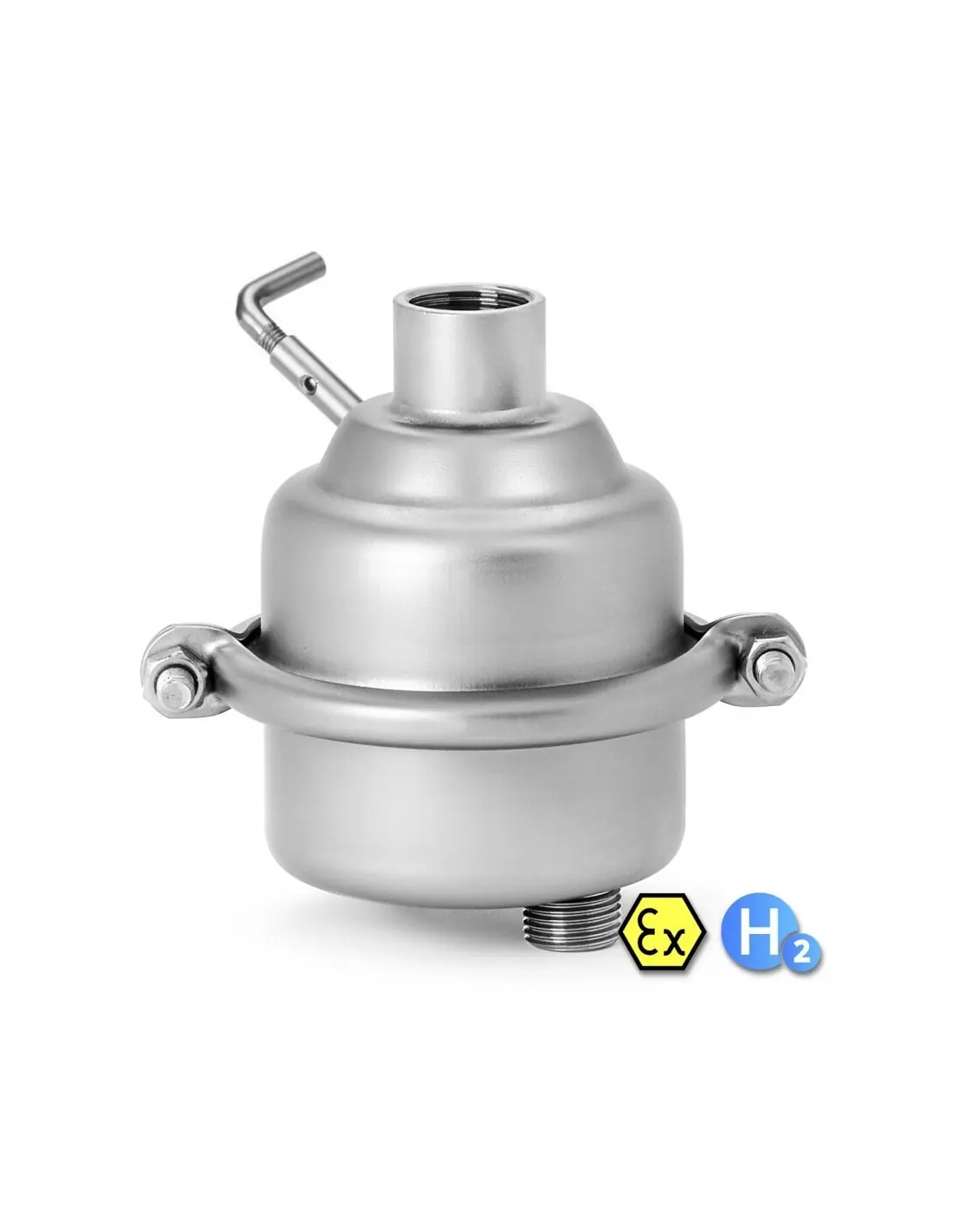

  • ATEX version
  • Body lock with collar flange
  • Expansion pipe connection in the valve top section for draining condensate from compressed air or gases
  • No manual bleed valve
  • Float adjustment to the density of the medium
  • Elastomers as per FDA and USP Class VI

Technical data

G
1/2 x 1/2A, 3/4 x 1/2A,
1 x 3/4A
DN
25 x 3/4A
PN
16
p
0 - 13 bar
Q
2 - 1570 l/h
T
190 °C

Steam up to 190 °C | soft seal | completely made of stainless steel | standard design up to DN 20 with a BSP male connection G 1/2 on the outlet, DN 25 male connection BSP G 3/4 | ATEX version optional

Advantages

ka2-vorteile
1

Stainless steel (1.4404 / 316L), deep-drawn, corrosion-resistant, light and compact

Long operational lifespan, manageable installation, minimum space required

2

Excellent standard surface quality

Easy to clean

3

Mankenberg clamp system

Easy maintenance

4

Internal parts and float stainless steel (1.4404 / 316L)

Resistant to pressure and corrosion, max. operational life-span, long service intervals

5

Soft gasket

Tight valve closure already in depressurised condition

6

Sturdy valve mechanism

Low maintenance

Options

a

Connection for transfer line

Optimal pressure compensation

b

Elastomers as per FDA and USP Class VI

c

Float adapted to medium density

d

ATEX version
