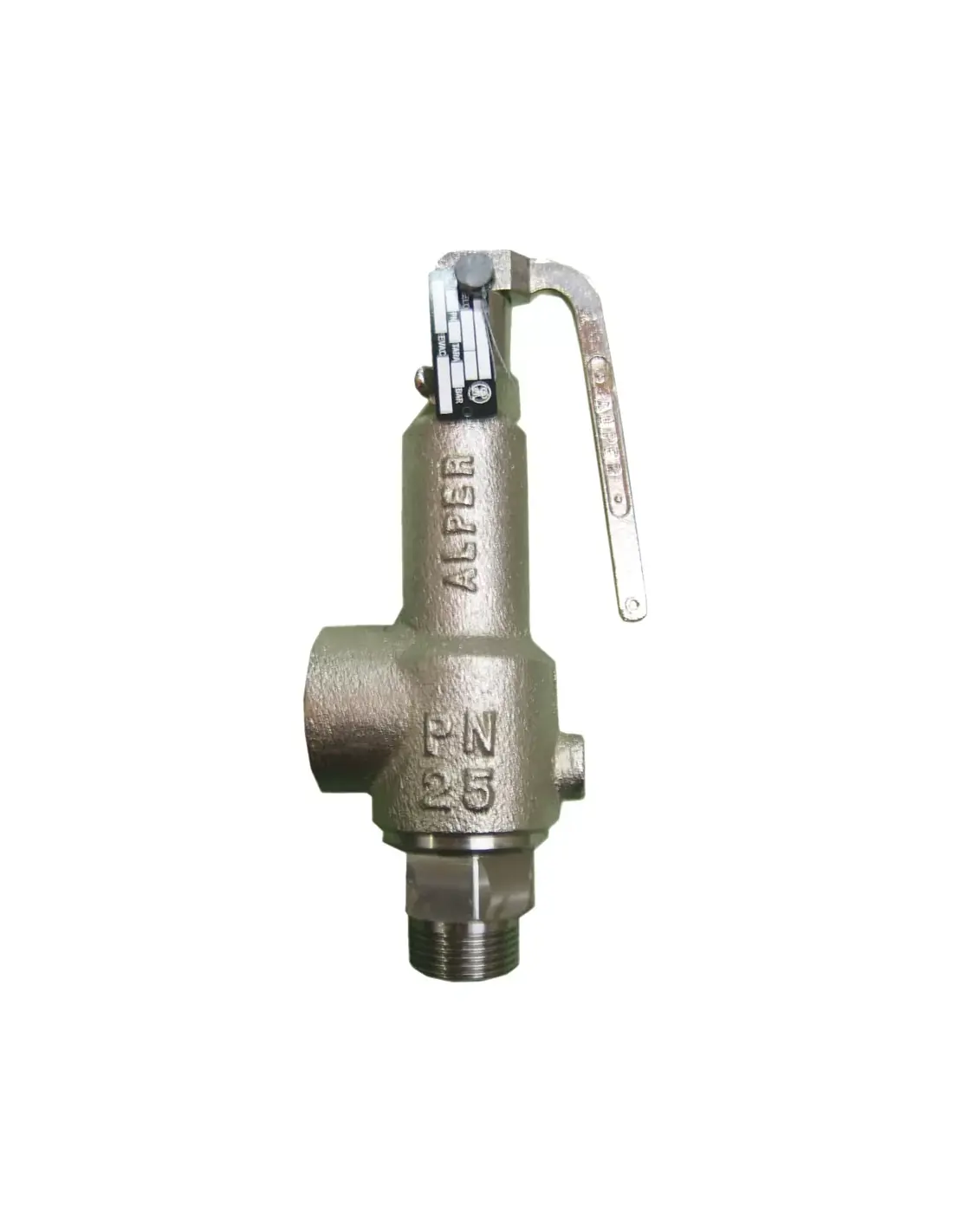

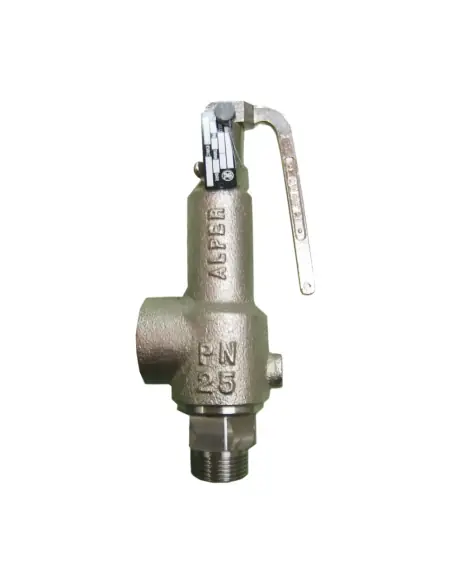

Valfonta ALPER Full-Lift Safety Valves

Valfonta ALPER safety valves are full-lift, instantaneous action devices designed for overpressure protection of vessels, boilers, and piping systems. Discharge occurs automatically without auxiliary energy, and the valve recloses once pressure drops below the setpoint. The design features a 90° directed discharge and a 1/4" drain port for condensate removal.

Technical Specifications

• Sizes: 1/4" to 4"
• Inlet: male BSP or DIN flange
• Outlet: female BSP, flanged on request
• Materials: bronze RG5 or stainless steel AISI 316L / CF-8M
• Seat: metal-to-metal or soft PTFE sealing
• PN: PN25 with metal seat, PN16 with PTFE seat
• Temperature: up to 280°C (stainless steel), up to 240°C (bronze)
• Certifications: PED 2014/68/EU, ISO 9001:2015, ATEX technical file referenced on product page

Available Versions

Variants include models with test-lift lever and hermetic construction. Series 375–388 cover stainless steel and mixed construction with BSP or DIN flange inlet. Types 395–398 are bronze, with PTFE or metal obturator options.

Suitable Media and Applications

Applicable for liquids, compressed air, inert gases, and steam. Typical installations include boilers, pressure vessels, steam networks, air receivers, auxiliary process lines, and locations requiring rapid discharge. Material selection must consider temperature, corrosion, and sealing compatibility.

Selection Criteria

Sizing requires set pressure, discharge flow, medium, temperature, backpressure, and connection type. For steam, ensure outlet drainage, avoid condensate accumulation, and maintain clean seating surfaces, as particulates or scale may cause leakage post-activation.
