Valfonta – Technical profile of a pressure reducing, pressure sustaining and safety valve manufacturer

Valfonta is a Spanish manufacturer of pressure control valves for steam, gases, liquids and industrial utilities. Its product range includes pressure reducing valves, pressure sustaining valves, pressure relief valves, safety valves and pneumatic control valves.

The range represented through Philippopoulos S.A. includes:

  • direct acting pressure reducing valves,
  • pilot-operated pressure reducing valves,
  • pressure reducing valves with bellows,
  • upstream pressure maintaining valves,
  • pressure relief valves,
  • spring-loaded safety valves,
  • pneumatic control valves.

Pressure reducing valves control downstream pressure. They must be selected according to inlet pressure, required outlet pressure, minimum and maximum flow, fluid, temperature, pressure reduction ratio and stability at low flow. In steam systems, upstream strainers, separators, bypass, gauges and downstream safety valves should be considered.

Valfonta M1 and M2-type regulators use external or internal pressure sensing depending on design. Impulse lines must be installed correctly, otherwise the valve may hunt, respond slowly or control the wrong pressure point.

Pressure sustaining valves maintain upstream pressure by opening when the upstream pressure exceeds the set value. Relief valves also protect against excessive upstream pressure, but their role must be distinguished from certified safety valves.

Safety valves are used for overpressure protection of vessels, boilers, piping and skids. They must be sized according to the relief scenario, not by line size. Required data include set pressure, protected equipment design pressure, relieving capacity, medium, temperature, back pressure and discharge arrangement.

Control valves with pneumatic actuators are selected differently from self-acting regulators. They require Cv / Kv calculation, actuator sizing, fail position, leakage class and possible cavitation, flashing or noise checks.

Valfonta products are relevant for steam specialists, process engineers, boilerhouse engineers and maintenance departments working with pressure control in steam, air, gas and liquid systems.

Pressure Reducing Valves Valfonta type M1 | Valfonta | Philippopoulos s.a.

Pressure Reducing Valves Valfonta type M1 | Valfonta

Pressure Reducing Valves Valfonta type M1 | Valfonta
Valfonta
Valfonta M1 Direct-Acting Pressure Reducer with Pulse Line The Valfonta M1 is a self-acting globe-type pressure reducer with a single seat, designed for regulating downstream pressure without external energy. The outlet pressure is directed to the diaphragm actuator via a pulse line, and the valve closes proportionally when the downstream pressure exceeds...
View
Pressure Reducing Valves type M2 | Valfonta | Philippopoulos s.a.

Pressure Reducing Valves type M2 | Valfonta

Pressure Reducing Valves type M2 | Valfonta
Valfonta

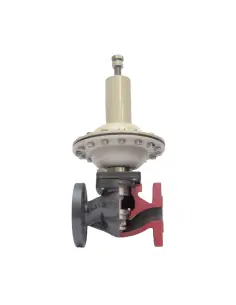

Professional Pressure Control Solutions: Valfonta Pilot Operated Pressure Reducing Valve Type M2 The Valfonta Pilot Operated Pressure Reducing Valve Type M2 is engineered for industrial applications requiring precise and reliable pressure management. Designed for high performance and durability, this pressure reducing valve ensures smooth operation in...
View
Pressure Reducing Valves type M2 with bellow | Valfonta | Philippopoulos s.a.

Pressure Reducing Valves type M2 with bellow | Valfonta

Pressure Reducing Valves type M2 with bellow | Valfonta
Valfonta

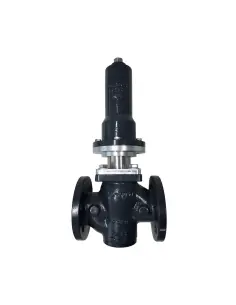

Valfonta M2 with Bellows Self-Acting Pressure Reducer The Valfonta M2 with bellows, referred to in the technical datasheet as M2F, is a self-acting pressure reducer designed to maintain downstream pressure amidst fluctuations in upstream pressure. The valve closes when the outlet pressure increases. It is not a safety valve; where overpressure protection...
View
Pressure Reducing Valves type PRV20 | Valfonta | Philippopoulos s.a.

Pressure Reducing Valves type PRV20 | Valfonta

Pressure Reducing Valves type PRV20 | Valfonta
Valfonta

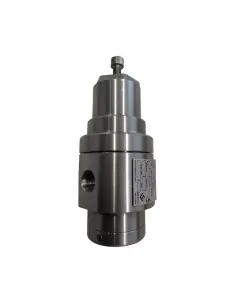

Valfonta PRV20 Direct Acting Pressure Reducer The Valfonta PRV20 is a self-operated pressure reducer with piston-driven compensation, designed for local downstream pressure regulation in small liquid and neutral gas networks. The valve closes when the outlet pressure exceeds the set point, mechanically adjusted via the spring preload screw. It requires no...
View
Pressure Reducing Valves type PRV30 | Valfonta | Philippopoulos s.a.

Pressure Reducing Valves type PRV30 | Valfonta

Pressure Reducing Valves type PRV30 | Valfonta
Valfonta
Valfonta PRV30 Direct Acting Pressure Reducer The Valfonta PRV30 is a self-operated pressure reducer with piston compensation, designed to maintain downstream pressure despite variations in inlet pressure. The valve closes when the outlet pressure exceeds the set point, mechanically adjusted via screw and spring, requiring no external energy or impulse...
View
Pressure Reducing Valves type PRV44 | Valfonta | Philippopoulos s.a.

Pressure Reducing Valves type PRV44 | Valfonta

Pressure Reducing Valves type PRV44 | Valfonta
Valfonta
Valfonta PRV44 Direct-Acting Pressure Reducer The Valfonta PRV44 is a self-acting pressure reducer suitable for liquids, gases, and steam. The valve operates without external energy or impulse lines. The downstream pressure acts on the internal bellows balancing system, closing the valve when the outlet pressure exceeds the set point. Technical...
View
Pressure Reducing Valves type PRV45 | Valfonta | Philippopoulos s.a.

Pressure Reducing Valves type PRV45 | Valfonta

Pressure Reducing Valves type PRV45 | Valfonta
Valfonta

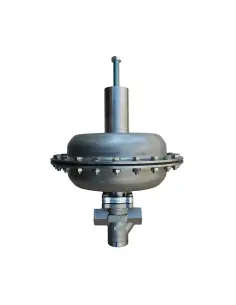

Valfonta PRV45 Pressure Reducing Valve for Low Outlet Pressures The Valfonta PRV45 is a self-actuating pressure reducing valve with diaphragm balancing. Although the commercial page lists it under pilot-operated reducers, the technical datasheet describes it as a self-actuating / direct action valve. The valve closes when the downstream pressure exceeds...
View
Pressure Reducing Valves type VD | Valfonta | Philippopoulos s.a.

Pressure Reducing Valves type VD | Valfonta

Pressure Reducing Valves type VD | Valfonta
Valfonta

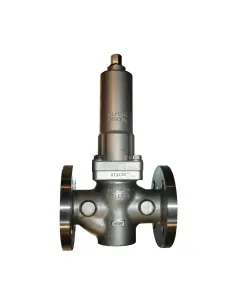

Valfonta VD Direct-Acting Pressure Reducer The Valfonta VD is a self-acting globe-type pressure reducer with a single seat, controlled via a piston. Downstream pressure is mechanically regulated by a spring and compensation system, requiring no external energy or pulse line. The valve is designed for stabilizing outlet pressure in liquids, compressed air,...
View
Pressure Excess Valves type S1 | Valfonta | Philippopoulos s.a.

Pressure Excess Valves type S1 | Valfonta

Pressure Excess Valves type S1 | Valfonta
Valfonta

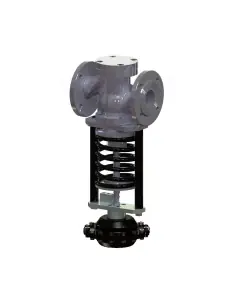

Valfonta S1 – Inlet Pressure Retaining Valve The Valfonta S1 is a self-actuated globe-type overpressure valve with a single seat, designed for proportional opening when upstream pressure exceeds the set point. Pressure is transmitted to the actuator via an external control line, and adjustment is mechanically achieved through the spring, requiring no...
View
Pressure Excess Valves type S2 | Valfonta | Philippopoulos s.a.

Pressure Excess Valves type S2 | Valfonta

Pressure Excess Valves type S2 | Valfonta
Valfonta
Valfonta S2 – Inlet Pressure Retaining Valve The Valfonta S2 is a self-acting pressure relief valve, fully balanced, designed to maintain upstream pressure. When the inlet pressure exceeds the set point, the valve opens proportionally. The forces from upstream/downstream pressures are balanced on the plug, distinguishing it from simpler direct-acting...
View
Pressure Excess Valves type S3 | Valfonta | Philippopoulos s.a.

Pressure Excess Valves type S3 | Valfonta

Pressure Excess Valves type S3 | Valfonta
Valfonta

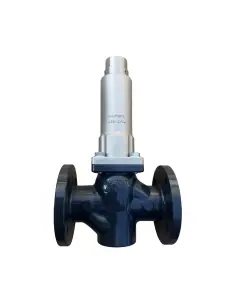

Valfonta S3 – Pressure Relief / Inlet Pressure Retention Valve The Valfonta S3 is a self-acting spring-loaded pressure relief valve designed to maintain upstream pressure at a specified set point. When the inlet pressure exceeds the set point, the valve opens proportionally, discharging flow to the downstream line or bypass. Note: This is not a safety...
View
Pressure Excess Valves type PRV53 | Valfonta | Philippopoulos s.a.

Pressure Excess Valves type PRV53 | Valfonta

Pressure Excess Valves type PRV53 | Valfonta
Valfonta

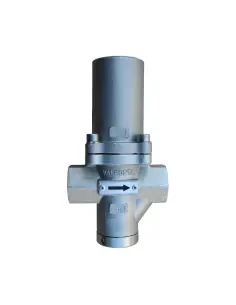

Valfonta PRV53 – Pressure Relief / Inlet Pressure Retaining Valve The Valfonta PRV53 is a self-actuated pressure relief valve designed to maintain upstream pressure in liquid, gas, and steam lines. When the inlet pressure exceeds the set point, the piston moves the obturator, opening the valve proportionally to relieve excess pressure. No compressed air...
View
Pressure Excess Valves type PRV54 | Valfonta | Philippopoulos s.a.

Pressure Excess Valves type PRV54 | Valfonta

Pressure Excess Valves type PRV54 | Valfonta
Valfonta
Valfonta PRV54 – Inlet Pressure Retaining Valve The PRV54 is a self-acting pressure relief valve, fully balanced, designed to maintain upstream pressure. When the inlet pressure exceeds the set point, the valve opens proportionally, discharging flow to the downstream line or bypass without external energy. Technical Specifications DN15–DN25 / ½”–1”...
View
Pressure Excess Valves type PRV55 | Valfonta | Philippopoulos s.a.

Pressure Excess Valves type PRV55 | Valfonta

Pressure Excess Valves type PRV55 | Valfonta
Valfonta
Valfonta PRV55 – Low Set Point Pressure Relief Valve The PRV55 is a self-acting, balanced inlet pressure maintenance valve. It operates on a direct acting principle: when the upstream pressure exceeds the set value, the piston/seal assembly opens proportionally, releasing flow to the downstream line or bypass. Technical Specifications DN15–DN25 / ½”–1”...
View
Gas Control Valves type C1 | Valfonta | Philippopoulos s.a.

Gas Control Valves type C1 | Valfonta

Gas Control Valves type C1 | Valfonta
Valfonta
Valfonta C1 – Pneumatic Gas Control Valve The Valfonta C1 is a globe-type, top-entry, single-seat pneumatic valve designed for analog control or on/off operation in gases, steam, and process liquids. It is utilized in flow or pressure control loops with a pneumatic multi-spring actuator for direct or reverse action. Dimensions and Connection The standard...
View
Liquid & steam Ejectors - 248 | Valfonta | Philippopoulos s.a.

Liquid & steam Ejectors - 248 | Valfonta

Liquid & steam Ejectors - 248 | Valfonta
Valfonta
Valfonta 248 Steam/Water Ejector The Valfonta 248 is a jet pump type ejector designed for pumping or mixing liquids, slurries, and solids using water or steam as the motive medium. Operation is based on a nozzle that generates a vacuum zone, drawing in the secondary medium and discharging the mixture. The unit contains no moving parts and does not require...
View
Liquid & steam Ejectors - 250 | Valfonta | Philippopoulos s.a.

Liquid & steam Ejectors - 250 | Valfonta

Liquid & steam Ejectors - 250 | Valfonta
Valfonta
Valfonta 250 Liquid Ejector The Valfonta 250 is an ejector designed for lifting and transferring liquids, oils, and viscous fluids, utilizing steam or water as the motive medium. Suction is generated via a jet nozzle, with no moving parts, shaft, mechanical seal, or electric motor involved. Technical Data Sizes: 3/8” to 1 1/2”. Connections: BSP...
View
Liquid & Steam Injectors - 252 | Valfonta | Philippopoulos s.a.

Liquid & Steam Injectors - 252 | Valfonta

Liquid & Steam Injectors - 252 | Valfonta
Valfonta
Valfonta 252 – Steam Injector for Liquid Heating The Valfonta 252 is a steam injector/reheater designed for direct injection of saturated steam into tanks or liquid baths. Steam enters through the nozzle, generating suction via the Venturi effect, which draws liquid through body openings and mixes it with the steam. This process induces circulation and...
View
Liquid & steam Ejectors - 253 | Valfonta | Philippopoulos s.a.

Liquid & steam Ejectors - 253 | Valfonta

Liquid & steam Ejectors - 253 | Valfonta
Valfonta
Valfonta 253 – Steam Reheater for Liquid Storage Tanks The Valfonta 253 is a steam injector designed for direct heating of liquids in storage tanks. Saturated steam enters the nozzle, generating suction via the Venturi effect and drawing liquid through the reheater body. The resulting steam–liquid mixture is recirculated into the tank, promoting uniform...
View
Liquid & Steam Injectors - 260 | Valfonta | Philippopoulos s.a.

Liquid & Steam Injectors - 260 | Valfonta

Liquid & Steam Injectors - 260 | Valfonta
Valfonta
Valfonta 260 – Steam/Liquid Injector for Tank Heating The Valfonta 260 is a direct steam injector designed for in-tank heating of liquids. Steam enters the injector, inducing liquid flow through body orifices and mixing with the steam, which promotes internal recirculation and uniform temperature distribution within the vessel. The unit contains no moving...
View
Liquid & Steam Injectors - 280 | Valfonta | Philippopoulos s.a.

Liquid & Steam Injectors - 280 | Valfonta

Liquid & Steam Injectors - 280 | Valfonta
Valfonta
Valfonta 280 – Steam/Liquid Inline Heater for Piping Systems The Valfonta 280 is a steam injector designed for direct heating of liquids flowing through pipelines. Steam enters via the upper flange, passes through small orifices in the nozzle, and forms steam jets that mix with the process liquid. This mixing increases the fluid temperature and, per...
View
Safety Valves series ALPER fully open | Valfonta | Philippopoulos s.a.

Safety Valves series ALPER fully open | Valfonta

Safety Valves series ALPER fully open | Valfonta
Valfonta
Valfonta ALPER Full-Lift Safety Valves Valfonta ALPER safety valves are full-lift, instantaneous action devices designed for overpressure protection of vessels, boilers, and piping systems. Discharge occurs automatically without auxiliary energy, and the valve recloses once pressure drops below the setpoint. The design features a 90° directed discharge...
View
Safety Valves series ALPER atmospheric valves | Valfonta | Philippopoulos s.a.

Safety Valves series ALPER atmospheric valves | Valfonta

Safety Valves series ALPER atmospheric valves | Valfonta
Valfonta
Valfonta ALPER Atmospheric Pressure/Vacuum Relief Valves Valfonta ALPER atmospheric valves are designed for the protection of storage tanks and closed vessels against overpressure and vacuum conditions. These valves feature a modulating opening characteristic, utilizing adjustable springs for pressure, vacuum, or combined pressure/vacuum settings. Outlet...
View
Safety Valves for boilers type JAS | Valfonta | Philippopoulos s.a.

Safety Valves for boilers type JAS | Valfonta

Safety Valves for boilers type JAS | Valfonta
Valfonta
Valfonta JAS Safety Relief Valves for Boilers The Valfonta JAS series comprises full-lift, direct-acting safety relief valves designed for overpressure protection in small boilers, pressure vessels, and piping systems. These valves discharge excess fluid without auxiliary power and reclose automatically when system pressure drops below the setpoint....
