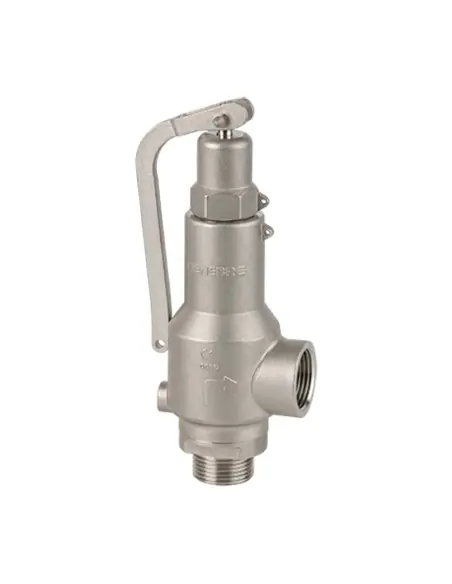

Genebre 2253 Safety Valve with Lever

The Genebre 2253 is an angle-type spring-loaded safety valve constructed from stainless steel, featuring threaded connections and a manual lift lever. Designed for gas or steam service; not intended for continuous bypass regulation. Set pressure is factory-adjusted and sealed.

Technical Specifications

Connection: BSP Gas male/female per ISO 228/1; NPT available as 2253N
Sizes: 1/2" x 1" up to 2" x 2"
PN: 40
Set pressure: 0.5 to 40 barg
Max operating pressure: 40 bar
Temperature: -20°C to +300°C
Body/cover: stainless steel 1.4408 / CF8M
Seat/disc: AISI 316
Spring: AISI 302 up to 250°C; material certification required for higher temperatures
Gaskets: PTFE
Cap: open type, with 360° lift lever

Standards and Discharge Capacities

Design and calculation per EN 12516 and EN ISO 4126-1/7. Technical datasheet provides discharge capacities for air at 20°C and saturated steam, with 10% overpressure and orifice sizes 13, 14, 16, 20, 28, and 32 mm.

Open vs Closed Cap Versions

Type 2253 features an open cap and test lever. Selected where periodic manual lift testing is required for operational verification. For hazardous, toxic, or non-ventable gases, evaluate if a closed or gastight design is necessary.

Typical Applications

small and medium diameter steam networks
steam manifolds and thermal skids
process gas lines
stainless steel piping with threaded connections
equipment requiring lift test without disassembly

FAQ

Is it suitable for water?
The datasheet specifies use for gas or steam. Liquid service requires technical evaluation.

Is an actuator required?
No. Operation is by process pressure and spring force.

What affects tightness?
Particulates, scale, condensate at outlet, and frequent opening near set pressure.

Standard (Options)

Connection (Options)

ISO 228-1

Material (Options)

1.4408

Pressure Rating (Options)

PN 40

Pattern (Options)

Angle

Datasheet and documents

Technical Sheet

Description

BSP threaded ends acc./ ISO 228/1 M-F, available with NPT threaded (2253N). Design, calculations and control according to EN 12516 and EN 4126-1/7. Construction: Stainless steel 1.4408 (CF8M). Seat and disc in stainless steel AISI 316. Set pressure between 0,5 barg and 40 barg. Max. working pressure 40 bar. Working temperature -20ºC +300ºC. Lever for manual opening, open cap.

Applications: Gas or steam

Reference: 2253

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2253 04 06 01	V. SEG. C/PAL. 1/2" G x 1" G	1	1.96	1/1
2253 04 06 02	V. SEG. C/PAL. 1/2" G x 1" G	1	1.36	1/1
2253 04 06 03	V. SEG. C/PAL. 1/2" G x 1" G	1	2	1/1
2253 04 06 04	V. SEG. C/PAL. 1/2" G x 1" G	1	1.96	1/1
2253 04 06 05	V. SEG. C/PAL. 1/2" G x 1" G	1	1.94	1/1
2253 04 06 06	V. SEG. C/PAL. 1/2" G x 1" G	1	1.36	1/1
2253 05 06 01	V. SEG. C/PAL. 3/4" G x 1" G	1	1.36	1/1
2253 05 06 02	V. SEG. C/PAL. 3/4" G x 1" G	1	1.36	1/1
2253 05 06 03	V. SEG. C/PAL. 3/4" G x 1" G	1	1.72	1/1
2253 05 06 04	V. SEG. C/PAL. 3/4" G x 1" G	1	1.36	1/1
2253 05 06 05	V. SEG. C/PAL. 3/4" G x 1" G	1	1.9	1/1
2253 05 06 06	V. SEG. C/PAL. 3/4" G x 1" G	1	1.96	1/1
2253 06 06 01	V. SEG. C/PAL. 1" G x 1" G	1	1.36	1/1
2253 06 06 02	V. SEG. C/PAL. 1" G x 1" G	1	1.36	1/1
2253 06 06 03	V. SEG. C/PAL. 1" G x 1" G	1	1.94	1/1
2253 06 06 04	V. SEG. C/PAL. 1" G x 1" G	1	1.92	1/1
2253 06 06 05	V. SEG. C/PAL. 1" G x 1" G	1	1.9	1/1
2253 06 06 06	V. SEG. C/PAL. 1" G x 1" G	1	1.36	1/1
2253 06 07 01	V. SEG. C/PAL. 1" G x 1"1/4 G	1	1.49	1/1
2253 06 07 02	V. SEG. C/PAL. 1" G x 1"1/4 G	1	1.49	1/1
2253 06 07 03	V. SEG. C/PAL. 1" G x 1"1/4 G	1	1.49	1/1
2253 06 07 04	V. SEG. C/PAL. 1" G x 1"1/4 G	1	1.49	1/1
2253 06 07 05	V. SEG. C/PAL. 1" G x 1"1/4 G	1	2	1/1
2253 06 07 06	V. SEG. C/PAL. 1" G x 1"1/4 G	1	1.49	1/1
2253 07 07 01	V. SEG. C/PAL. 1"1/4 G x 1"1/4 G	1	2.14	1/1
2253 07 07 02	V. SEG. C/PAL. 1"1/4 G x 1"1/4 G	1	1.535	1/1
2253 07 07 03	V. SEG. C/PAL. 1"1/4 G x 1"1/4 G	1	1.535	1/1
2253 07 07 04	V. SEG. C/PAL. 1"1/4 G x 1"1/4 G	1	2.16	1/1
2253 07 07 05	V. SEG. C/PAL. 1"1/4 G x 1"1/4 G	1	2.12	1/1
2253 07 07 06	V. SEG. C/PAL. 1"1/4 G x 1"1/4 G	1	1.535	1/1
2253 08 09 01	V. SEG. C/PAL. 1"1/2 G x 2" G	1	3.82	1/1
2253 08 09 02	V. SEG. C/PAL. 1"1/2 G x 2" G	1	3.82	1/1
2253 08 09 03	V. SEG. C/PAL. 1"1/2 G x 2" G	1	3.82	1/1
2253 08 09 04	V. SEG. C/PAL. 1"1/2 G x 2" G	1	3.82	1/1
2253 08 09 05	V. SEG. C/PAL. 1"1/2 G x 2" G	1	3.82	1/1
2253 08 09 06	V. SEG. C/PAL. 1"1/2 G x 2" G	1	3.82	1/1
2253 09 09 01	V. SEG. C/PAL. 2" G x 2" G	1	3.89	1/1
2253 09 09 02	V. SEG. C/PAL. 2" G x 2" G	1	3.89	1/1
2253 09 09 03	V. SEG. C/PAL. 2" G x 2" G	1	3.89	1/1
2253 09 09 04	V. SEG. C/PAL. 2" G x 2" G	1	3.89	1/1
2253 09 09 05	V. SEG. C/PAL. 2" G x 2" G	1	3.89	1/1
2253 09 09 06	V. SEG. C/PAL. 2" G x 2" G	1	3.89	1/1
