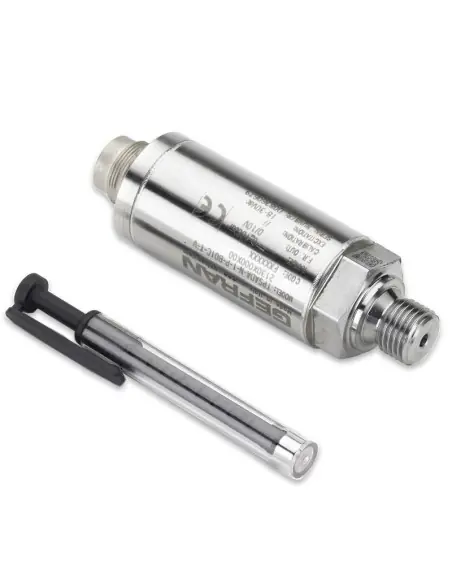

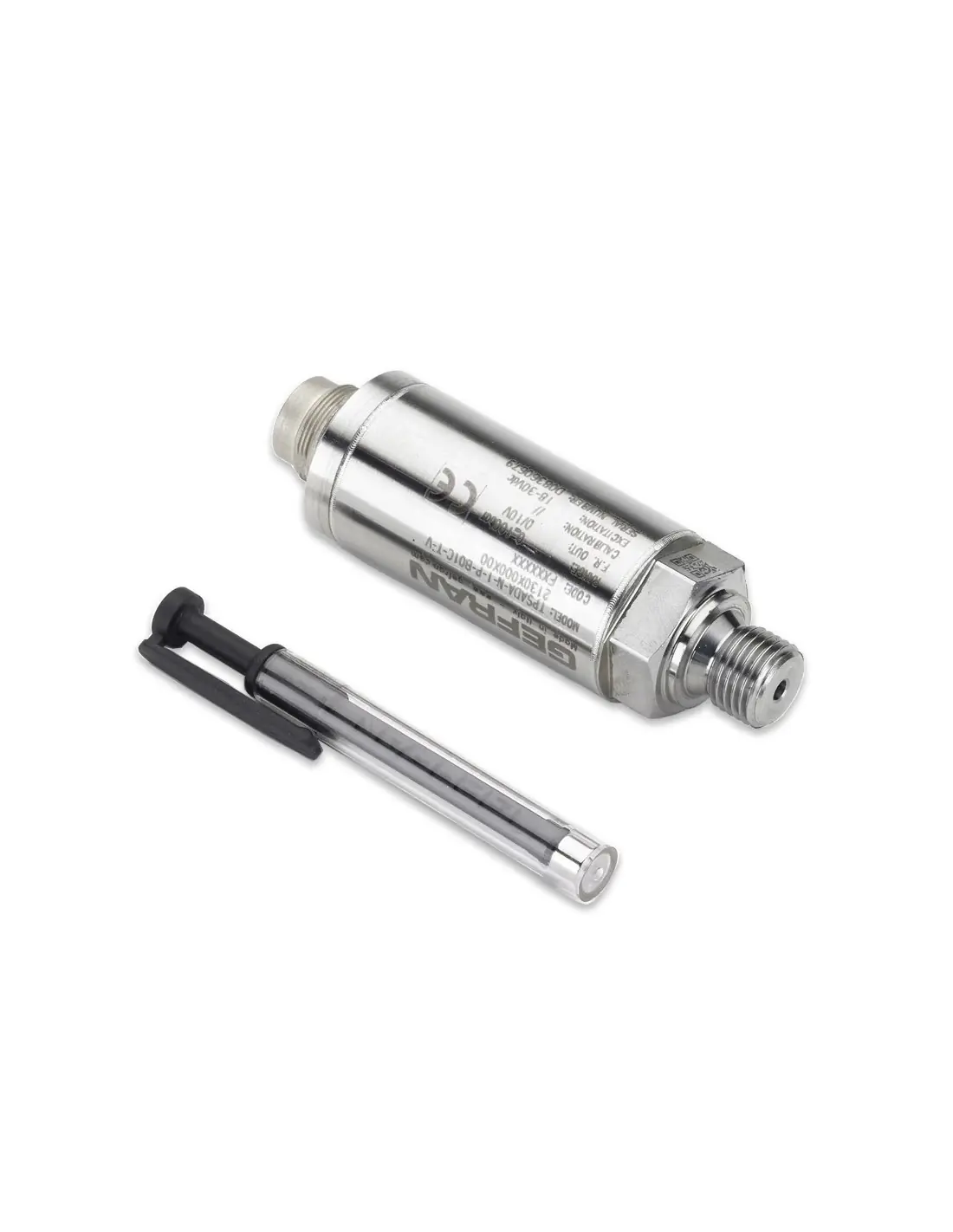

Gefran TPSADA – Pressure Transmitter with Digital Autozero/Span

The TPSADA is an analog pressure transmitter designed for industrial test systems and hydraulic applications. It utilizes a thick film sensor on a stainless steel diaphragm. The main distinction from the TPSA model is the integrated Digital Autozero & Span function, which is magnetically activated without opening the device housing.

Technical Data

• Measuring ranges: 0…4 to 0…1000 bar
• Accuracy: ±0.1% FS or ±0.15% FS, depending on range
• Overpressure: 3x…2x
• Burst pressure: 5x…2.5x
• Response time: < 1 ms
• Process temperature: -40…+105 °C
• Temperature compensation: -10…+85 °C
• Body: AISI 304
• Wetted parts: 17-4PH stainless steel
• Protection: IP65 / IP66 / IP67 with suitable female connector

Signal Outputs

Standard outputs include 0.1…10.1 Vdc, 4…20 mA, and 0…10 Vdc. Optional outputs: 0.1…5.1 Vdc, 0…5 Vdc, 1…5 Vdc, 1…10 Vdc, 1…6 Vdc. The 4…20 mA output is preferred for field wiring to PLCs or data loggers; voltage outputs are used for short-distance connections to test controllers.

Autozero & Span Functions

Functions include coarse magnetic autozero, fine magnetic autozero, 80% FS calibration signal, magnetic autospan, partial reset, and total reset. These are used after installation, fitting changes, mechanical stress, or periodic offset checks.

Connections and Applications

Standard process connection: G 1/4 gas male. Available options: 7/16-20 UNF-2A SAE 4, G 1/2A DIN 16288, G 1/4 gas female. Typical use: production test benches, test machines, and hydraulic pressure measurement circuits.

Installation / Compliance

Shielded cable is required, separated from power cables. Compliance: RoHS 2011/65/EU, EMC 2014/30/EU, EN 50581:2012, EN 61326-1:2013, EN 61326-2-3:2013.
