Pressure Sensor - Industrial - Type TPHADA | Gefran

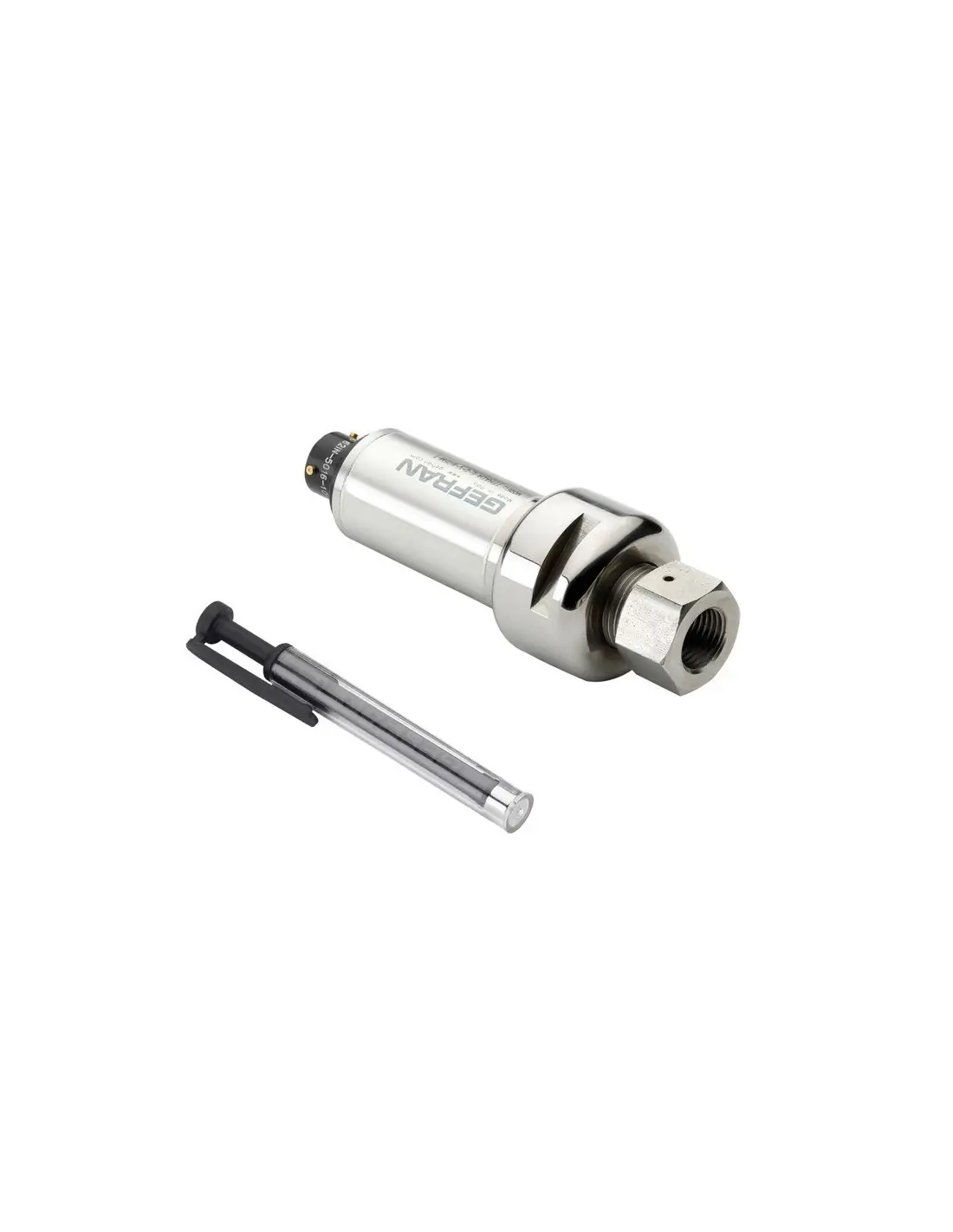

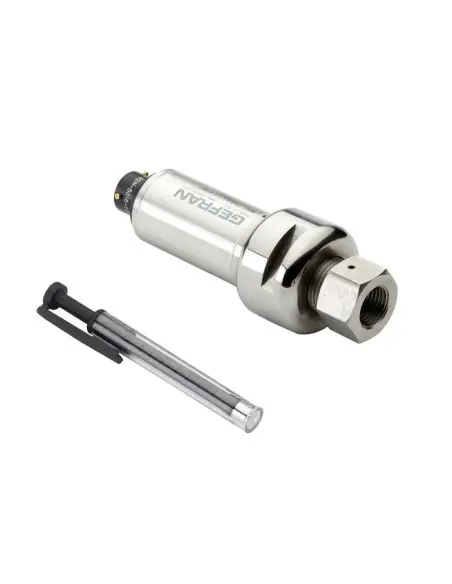

Gefran TPHADA – Ultra High Pressure Transmitter

The TPHADA is a pressure transmitter designed for ultra high-pressure hydraulic circuits. It utilizes a bonded strain gauge on stainless steel with a monolithic measuring diaphragm. Suitable for both static and dynamic pressure measurement in waterjet systems, high-pressure pumps, and hydraulic test benches.

Technical Data

  • Measuring ranges: 0…1000 to 0…5000 bar
  • Accuracy: ±0.1% FS typical
  • Overpressure: 2 x FS, max 6000 bar
  • Burst pressure: 3 x FS, max 7500 bar
  • Response time: < 1 ms
  • Process temperature: -30…+120 °C
  • Temperature compensation: -10…+85 °C
  • Body: AISI 304
  • Wetted parts: 15-5PH / 17-4PH stainless steel
  • Protection: IP65/IP66/IP67 with correctly installed female connector

Signal Outputs

Available outputs: 4…20 mA two-wire, 0.1…5.1 Vdc, 0.1…10.1 Vdc, 0…5 Vdc, 0…10 Vdc, 1…5 Vdc, 1…6 Vdc, 1…10 Vdc. The 4…20 mA output is used for field wiring to PLCs or data loggers. Voltage outputs are suitable for short cable runs or test systems requiring fast analog acquisition.

Digital Auto-Zero & Span

The Digital Auto-Zero & Span function allows zero and span adjustment using a magnetic pen, without opening the device. Useful after installation, fitting replacement, or periodic drift checks in high-pressure hydraulic systems.

Process Connections

Available connections: F-250-C 9/16-18 UNF female and M16 x 1.5 female. For this pressure class, verify fitting selection, metal-to-metal sealing, tightening torque, and mechanical load on tubing.

FAQ

When to select TPHADA over TPH?
When a conditioned output 4…20 mA or Vdc is required instead of mV/V.

Suitable media?
Fluids compatible with 15-5PH / 17-4PH stainless steel.

Are certificates available?
Product page provides EU and UK Conformity Declaration for the TPHADA series.

Datasheet and documents

Description

Technical specifications

Overview

Series TPHADA transmitters for high pressure are based on bonded strain gauge on stainless technology.

The measurement diaphragm with monolithic structure makes the transmitter highly efficient, reliable, and safe – extremely important factors in high-pressure applications.

The entire mechanical structure, with vent holes, is designed to guarantee safety and makes the transducer suitable for measuring both static and dynamic pressure, even under harsh conditions.

The TPHADA is particularly suitable for applications in high and very high pressure hydraulic circuits, such as (for example) on test benches or on waterjet cutting machines.

State-of-the-art electronics provides a wide range of output signals in current and in voltage, and the innovative digital “Auto-Zero & Span” function provides quick and easy automatic adjustment of zero after installation with a simple touch of the magnetic pen (supplied).

Description

  • Ranges: from: 0…1000 to 0…5000 bar
  • Output signal 4…20mA 2 wires / 0,1…5,1Vdc / 0.1…10.1Vdc / 0…5Vdc / 0…10Vdc / 1…5Vdc / 1…6Vdc / 1…10Vdc
  • Protection: IP65/IP67
  • Wetted parts: 15-5PH / 17-4PH stainless steel
  • Measurement diaphragm with monolithic stainless steel structure
  • Digital Auto-Zero & Span function
  • Suitable for measuring static and dynamic pressure

Certifications

EU Conformity Declaration - TPHADA

UK Conformity Declaration - TPHADA
