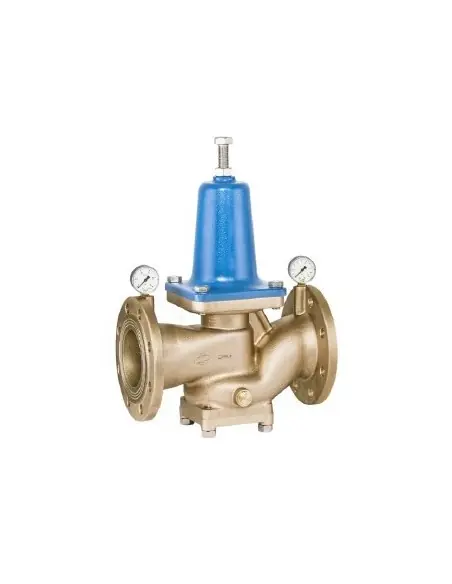

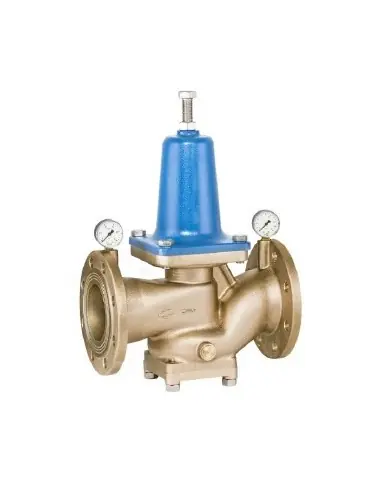

The Berluto DRV 624 is a direct-acting, piston-operated, spring-loaded pressure reducer with inlet pressure compensation. The downstream pressure is mechanically adjustable within the range of 4–12 bar, requiring no external energy or impulse line. It is designed for large DN and relatively high outlet pressure.
The body is made of red bronze CC499K and the spring cap of cast iron. Wetted parts in the basic version are brass and stainless steel V4A. Seals are NBR, with a temperature limit up to 100°C. A special version for seawater is available, with wetted parts made from materials resistant to the specific medium.
Used in water and neutral, non-sticky liquids. It can also be applied to air and neutral gases when larger flow rates are required. It should not be selected for steam without confirmation from the manufacturer.
Typical applications include industrial water, neutral process liquids, air lines, neutral gas networks, machine supplies, and local pressure reduction before consumers requiring 4–12 bar.
Sizing requires p1, p2, flow rate, DN, flange PN, Kvs, medium, temperature, and seawater version requirement. Installation can be in any position, with a preference for vertical. Dual G 1/4” gauge connections are provided for outlet pressure indication.
DRV 624
Pressure reducing valves of the series are piston-controlled, spring-loaded pressure reducing valves and have an inlet pressure compensation. All sizes are available with flanges according to DIN, ANSI or JIS.
Nominal size DN 65 up to DN 150
Inlet pressure up to 25 bar
Outlet pressure from 4 up to 12 bar
Temperature range -15°C to 100°C
Technical data
CE-certification according to the European Pressure Equipment Directive is mandatory for numerous products and delivery areas. Other certificates, however, are certificates of individual quality, such as DVGW and DIN EN ISO 9001, which stands for the internal quality management system with its extensive functional and performance checks. The particularly strict regulations of the national rules and regulations guarantee the highest possible safety - especially when it comes to the reliability in your plant.
