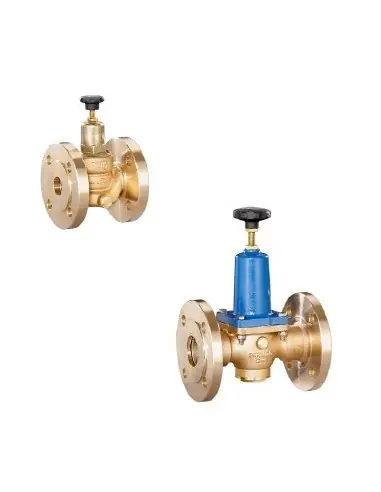

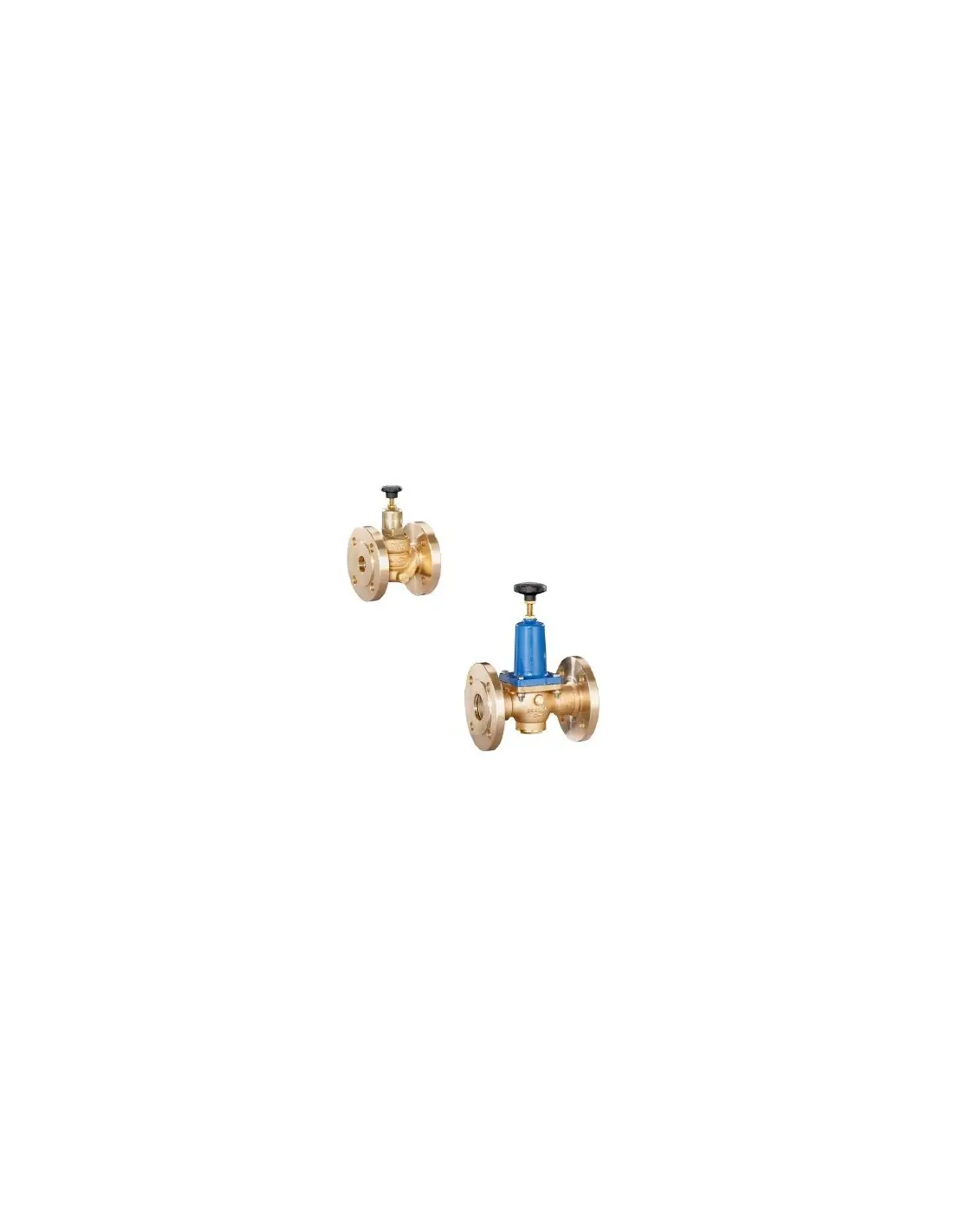

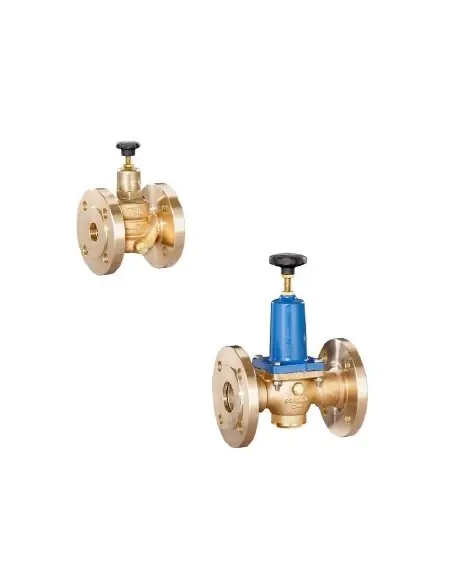

The Berluto DRV 502-6 is a flanged direct-acting pressure reducer designed for potable water networks. Its operation is based on a diaphragm, adjustment spring, and inlet pressure compensation. Internal components are cartridge-type, allowing replacement during maintenance without changing the body.
The body is made of red brass CC499K. The spring cap is brass up to DN32 and cast iron from DN40. Wetted parts are Hostaform C and brass up to DN32, and brass from DN40. Diaphragms and seals are EPDM with ELL and W270 approvals for potable water.
Used in building and industrial potable water networks, distribution zones, equipment supply lines, thermal subsystems, and points requiring downstream pressure limitation before consumption.
Installation position can be any, with a preference for vertical. Selection requires p1, desired p2, peak flow, DN, Kvs, water temperature, available differential pressure, and potable water certification requirement. The technical datasheet mentions PED 2014/68/EU, DVGW, ISO 9001, and classification society options DNV GL, ABS, LR, CCS, and BV.
DRV 502-6
Pressure reducing valves of the series are diaphragm-controlled, spring-loaded pressure reducing valves and have inlet pressure compensation. The cartridge design allows easy replacement of the internal parts.
Nominal size DN 15 up to DN 80
Inlet pressure up to 16 bar
Outlet pressure from 1.5 up to 6 bar
Temperature range -15°C to 100°C
Technical data
CE-certification according to the European Pressure Equipment Directive is mandatory for numerous products and delivery areas. Other certificates, however, are certificates of individual quality, such as DVGW and DIN EN ISO 9001, which stands for the internal quality management system with its extensive functional and performance checks. The particularly strict regulations of the national rules and regulations guarantee the highest possible safety - especially when it comes to the reliability in your plant.
