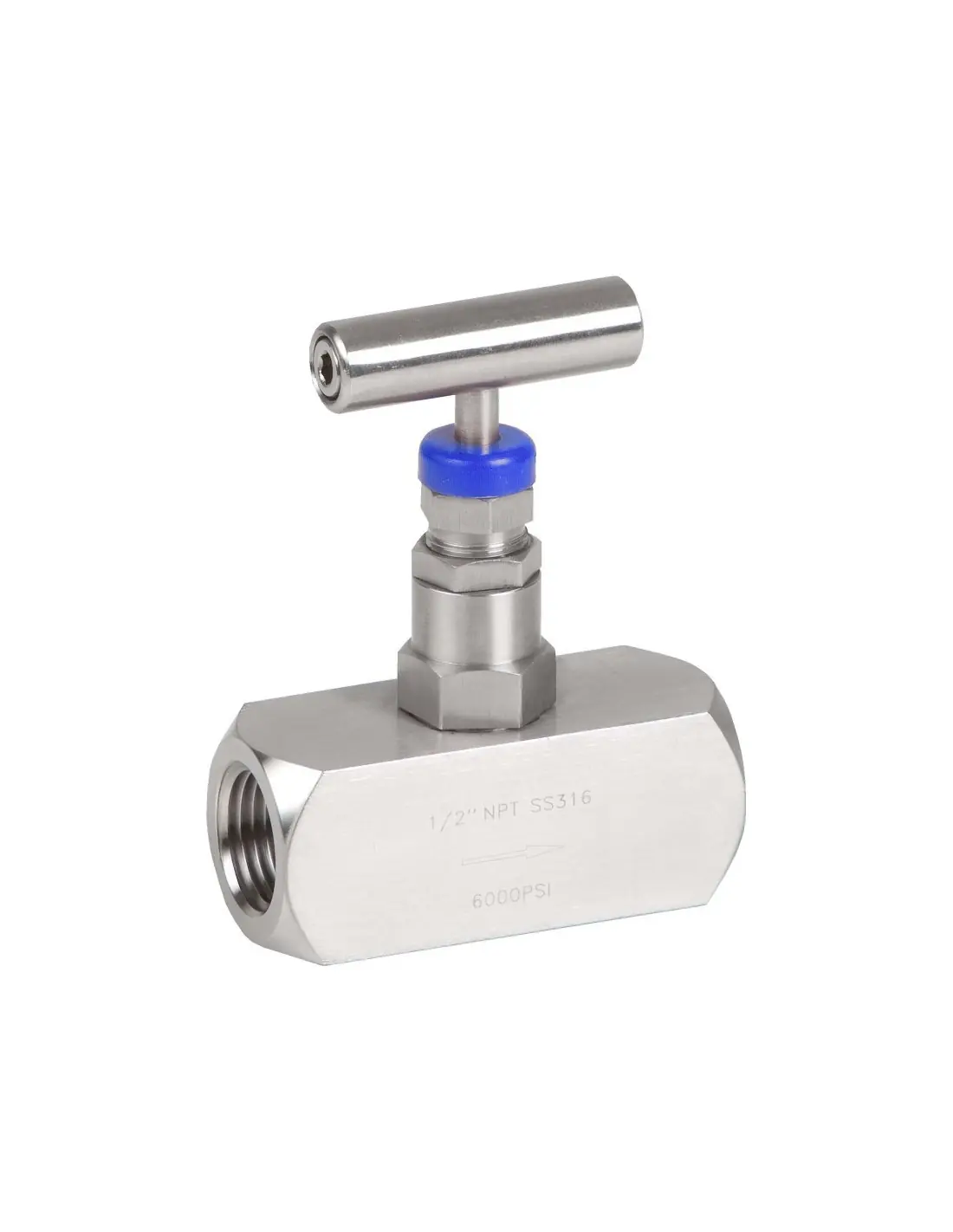

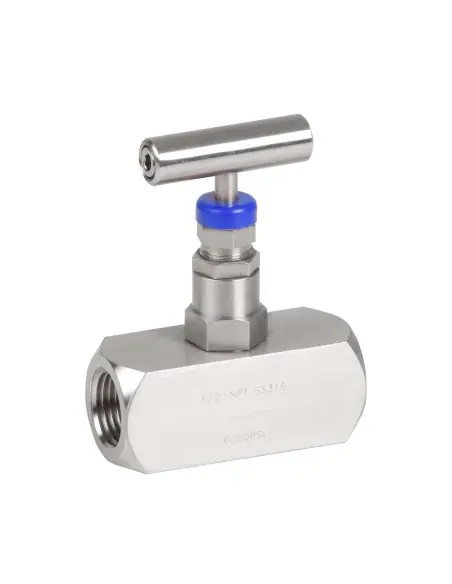

Genebre 2225N Needle Valve – 6000 psi, NPT F/F

Manual needle valve for throttling small flow rates in high-pressure lines. The 2225N features female NPT threads per ASME B1.20.1, stainless steel body ASTM A479 Grade 316, and a maximum working pressure of 6000 psi at 38°C, approximately 410 bar.

Technical Specifications

• Sizes: 1/4”, 3/8”, 1/2”, 3/4”, 1”
• Connection: NPT female/female
• Body Material: ASTM A479 Gr.316
• Stem Shaft: ASTM A479 Gr.316 with nitrogen treatment
• Packing: PTFE + graphite
• O-ring: FKM
• Operating Temperature: -54°C to +232°C
• Kv: 0.30 to 1.40 m³/h, depending on size

Operational Use

The 2225N is used for manual throttling in clean liquids or gases, not as an automatic control valve. Actual flow depends on ΔP, Kv, viscosity, temperature, and piping losses. The pressure-temperature curve must be considered, as the nominal pressure of 6000 psi is not constant across the temperature range.

Typical Applications

• High-pressure instrumentation lines
• Hydraulic test benches
• Small bypass and balancing lines
• Air, nitrogen, water, or compatible clean chemicals
• Installations with NPT piping standard

Not the first choice for slurries, suspended solids, or viscous media due to limited seat cross-section and potential seat leakage.

Difference from 2225

The 2225N is the NPT version. The 2225 pertains to ISO 228/1 connection. Replacement between the two should not occur without checking thread standard, thread sealing medium, pressure, temperature, and available Kv.

FAQ

What does the back seating design offer?
Protects the packing when the valve is fully open.

What should be checked before selection?
NPT size, pressure/temperature, Kv, compatibility 316–FKM–PTFE/graphite, and shaft/seat sealing requirement.
