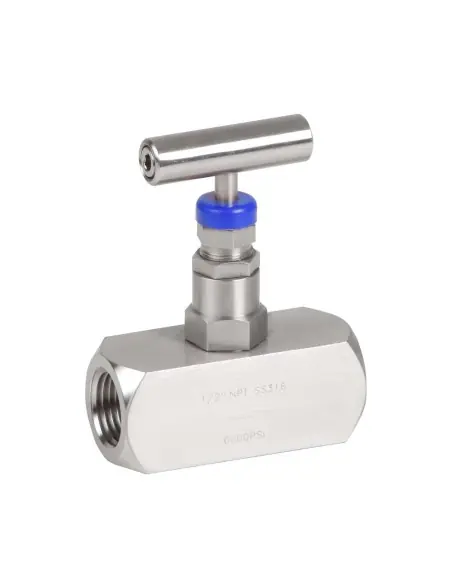

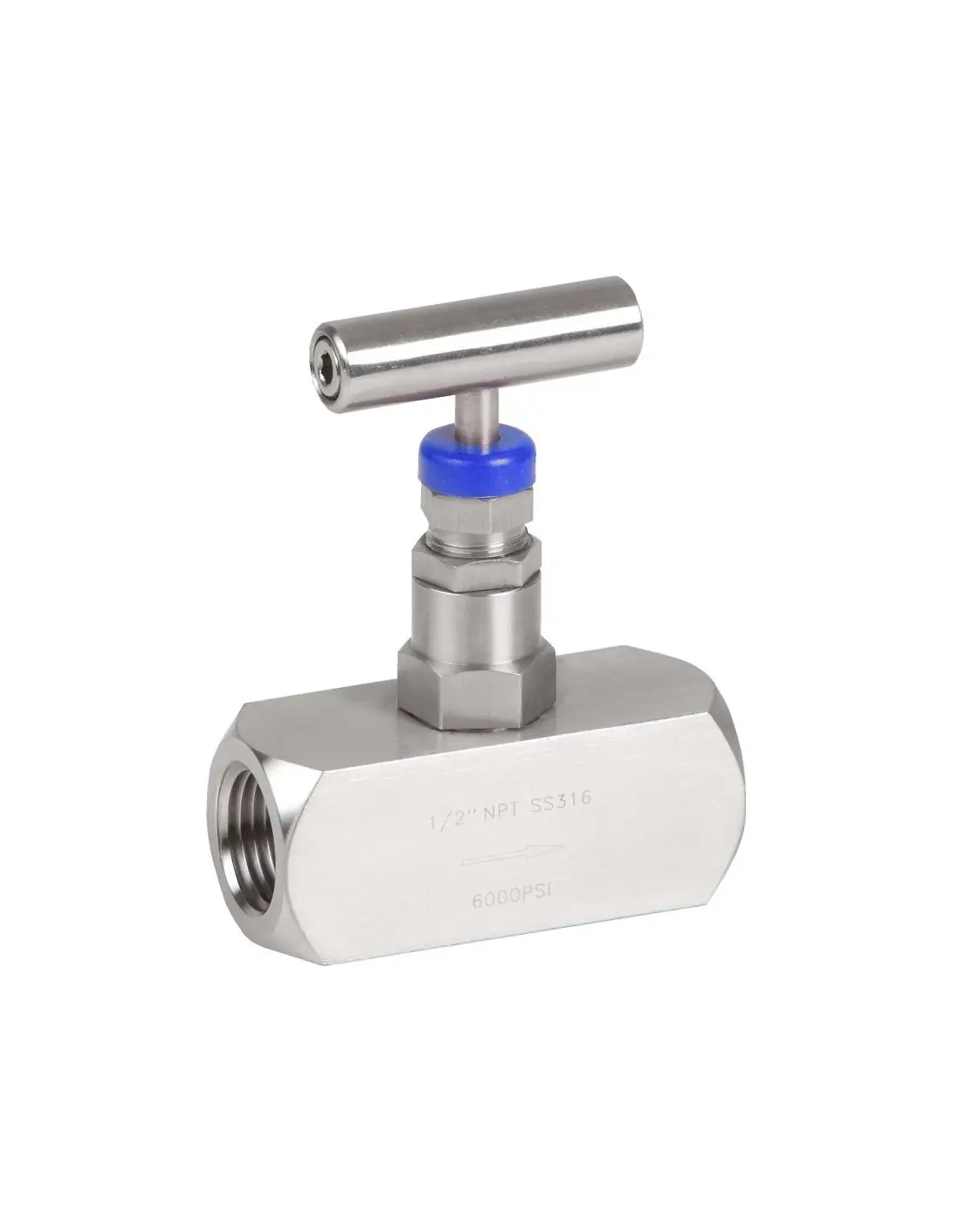

Needle valve 6000 Lbs - 2225 | Genebre

Name: Needle valve 6000 Lbs - 2225 | Genebre
Brand: Genebre
SKU: Needle valve 6000 Lbs - 2225 | Genebre

Needle Valve Genebre 2225 – 6000 psi, ISO 228/1 F/F

Manual needle valve for throttling small flow rates in high-pressure lines. Series 2225 features female threads ISO 228/1, stainless steel construction ASTM A479 Grade 316, and a maximum working pressure of 6000 psi at 38°C, approximately 410 bar.

Technical Specifications

Sizes: 1/4”, 3/8”, 1/2”, 3/4”, 1”
Connection: ISO 228/1 female/female
Body: ASTM A479 Gr.316
Stem shaft: ASTM A479 Gr.316 with nitrogen treatment
Packing: PTFE + graphite
O-ring: FKM
Operating temperature: -54°C to +232°C
Kv: 0.30 to 1.40 m³/h, depending on size

Operational Use

The 2225 is selected for manual throttling at higher pressures than the 3000 psi series. It is not a control valve with a characterized control curve and does not replace an actuated valve in a control loop. Actual flow depends on ΔP, Kv, viscosity, temperature, and media cleanliness.

The technical sheet mentions a safety bonnet lock to prevent accidental loosening and a back seating design to protect the packing when the valve is fully open.

Typical Applications

High-pressure instrumentation lines
Hydraulic circuits and test benches
Low-flow bypass
Clean gases, nitrogen, air, or water
Chemical media compatible with 316, PTFE/graphite, and FKM

Not the primary choice for slurries, suspended solids, or viscous products due to limited seat cross-section and potential seat leakage.

Difference from 2223 / 2224

The 2225 is a stainless steel series rated at 6000 psi with ISO 228/1 threading. The 2223 and 2224 are stainless steel series rated at 3000 psi, with ISO 228/1 and NPT respectively. Check thread standard, pressure-temperature rating, and Kv before replacement.

FAQ

Is the 6000 psi pressure rating valid across the entire temperature range?
No. The rating is given at 38°C and decreases with increasing temperature, according to the pressure-temperature curve.

What should be checked before selection?
Size ISO 228/1, pressure, temperature, Kv, chemical compatibility, and packing/seat sealing requirements.

Standard (Options)

Connection (Options)

ISO 228-1

Material (Options)

ASTM A479 Type 316

Pressure Rating (Options)

PN 413

Datasheet and documents

Technical Sheet

Description

Construction: Stainless steel A182 F316 / Needle stailess steel A182 F316 + Heat treatment. Thread ISO 228-1.Stem packing PTFE. Max. working pressure 410 bar. Working temperature -54ºC to 250ºC.

Reference: 2225

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2225 02	NEEDLE VALVE 6000 BSP F-F 1/4"	1	0.38	20/60
2225 03	NEEDLE VALVE 6000 LBS F-F 3/8"	1	0.36	20/60
2225 04	NEEDLE VALVE 6000LBS F-F 1/2"	1	0.422	15/45
2225 05	NEEDLE VALVE 6000 LBS F-F 3/4"	1	0.786	8/24
2225 06	NEEDLE VALVE 6000LBS F-F 1"	1	1.124	6/18
