The ARI CODI®S and CODI®B are advanced condensate collectors and distributors designed for vertical installation, featuring a bellow seal for maintenance-free operation. The CODI®S model operates at PN40 with gland packing, while the CODI®B model is available at PN40/PN63 with a bellows seal. Both models offer a modular design with options for 2 to 18 integrated stop valves, providing flexibility for various industrial applications. Primary connections include flanges, screwed sockets, socket weld ends, and butt weld ends, with customizable secondary connections. The stop valves support open-close and throttling functions, and a safety back seat prevents leakage when fully opened. The CODI®S can handle pressures up to 32 barg and temperatures up to 250°C (or 400°C for some models), while the CODI®B can manage pressures up to 45 barg and temperatures up to 350°C. Available in forged steel and stainless steel, these units are ideal for condensate collection and steam distribution in industries like chemical processing, HVAC, and water treatment. Installation is versatile, with options for vertical or horizontal mounting, and additional features like insulating jackets and immersion tubes are available for enhanced performance.
Standard (Options)
  • DIN
Connection (Options)
  • BSP
  • NPT
  • Flanged
  • Socket Weld
  • Butt Weld
Material (Options)
  • 1.0460
  • 1.4541
Pressure Rating (Options)
  • PN 40
  • PN 63

Datasheet and documents

Description

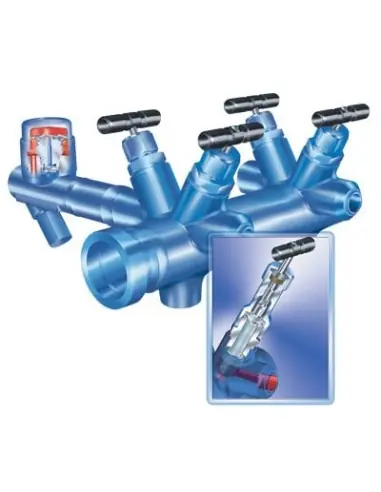

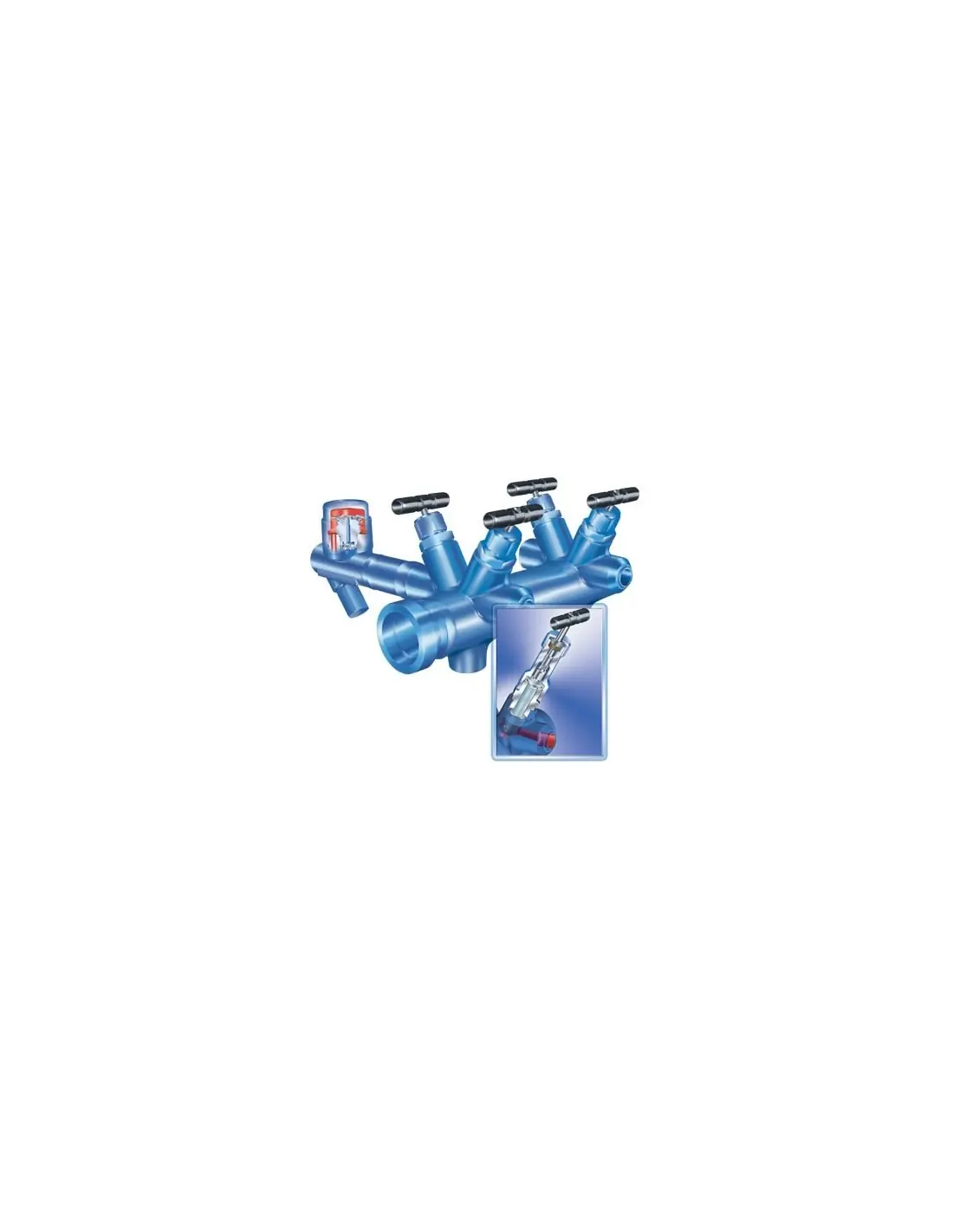

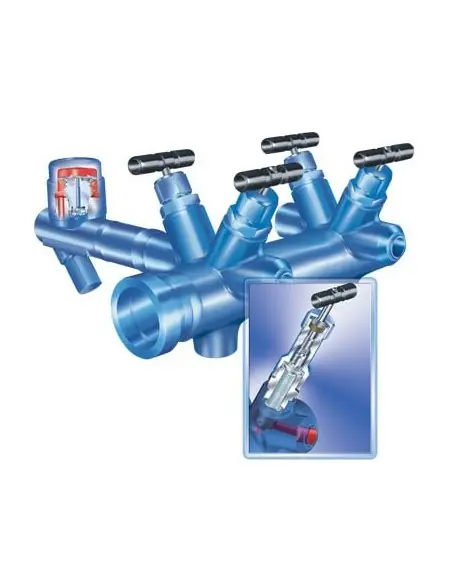

Key Features of CODI®S and CODI®B:

  • CODI®S (PN40) with gland packing and CODI®B (PN40 / PN63) with bellows seal for maintenance-free operation.
  • Modular design for flexibility, available with 2, 4, 6, 8, 10, 12, 14, 16, or 18 integrated stop valves.
  • Primary connections available in flanges, screwed sockets, socket weld ends, and butt weld ends.
  • Secondary connections with options for various pipe sizes and ANSI versions.
  • Stop valves with open-close or throttling functions.
  • Safety back seat when the valve is fully opened to prevent leakage.


Pressure and Temperature Ratings:

  • CODI®S (PN40): Operating pressure up to 32 barg and inlet temperature up to 250°C (or 400°C for some models).
  • CODI®B (PN40 / PN63): Operating pressure up to 45 barg and inlet temperature up to 350°C (for PN63).


Models & Materials
:

  • CODI®S (PN40): Available in Forged Steel (P250GH, 1.0460) and Stainless Steel (1.4541).
  • CODI®B (PN40 / PN63): Available in Forged Steel (P250GH, 1.0460) and Stainless Steel (1.4541).


Types of Connections
:

  • Primary connections: Flanges, socket weld ends, butt weld ends, screwed sockets (Rp or NPT).
  • Secondary connections: Customizable as per the required installation.


Applications
:

  • Condensate collection and steam distribution for industrial systems such as chemical processing, HVAC, and water treatment systems.
  • The steam inlet is at the top flange, with the condensate outlet generally at the bottom flange.


Installation and Options
:

  • The valves can be mounted vertically (preferred) or horizontally.
  • Optional insulating jackets for energy saving and protection against heat loss.
  • Additional options include immersion tubes, fastening parts, and mounting wrenches.

Tests and Certificates

DGRL 2014/68/EU (PED Pressure Equipment Directive)
TRB 801 Annex II No. 45
TRD 201 (Welding of components made of steel, manufacturing - inspection)
AD 2000
DIN 3230 T1/T2/T3 (Technical conditions of delivery for valves)
VDI 2440
DIN EN 729-3 (Quality requirements of weldings)
TA - Luft TÜV-Test-No. 002-02-AWH
