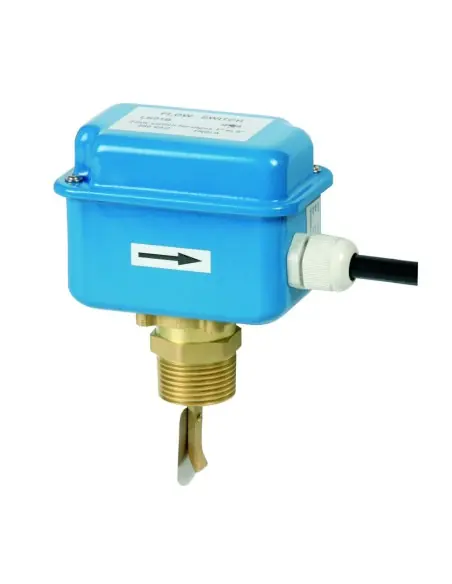

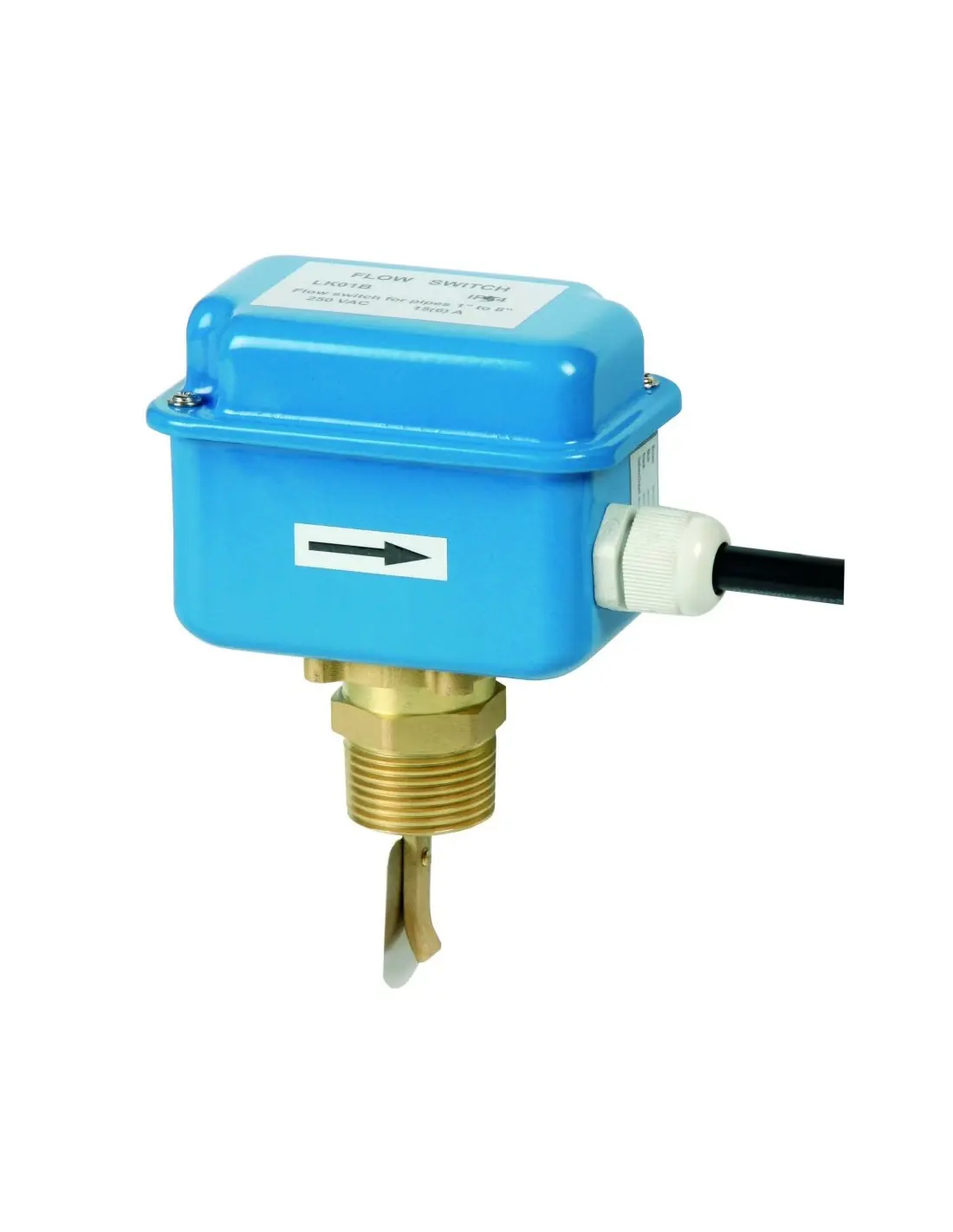

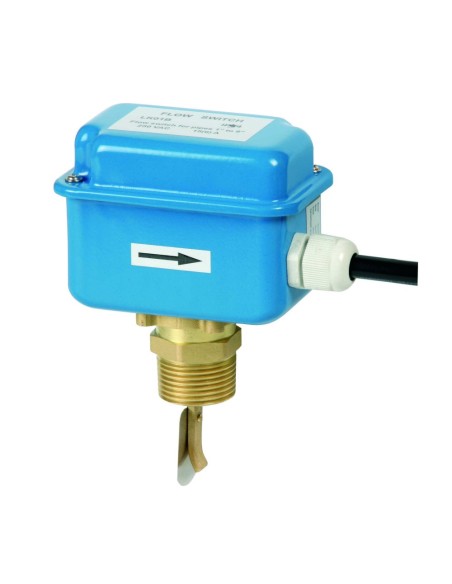

The Genebre 2850 is a mechanical paddle-type flow switch designed for monitoring low or zero flow in non-corrosive liquids such as water and oil. It is typically used for process protection, interlock, or signaling in heating, cooling, and industrial circulation systems.
Flow displaces the paddle, actuating a microswitch. Setpoint is mechanically adjusted via a spring screw. Activation and reset points vary with paddle length and pipe diameter. For 1” pipe, activation range is 1.1–2.0 m³/h; for 8” pipe, 47–94 m³/h.
Documentation specifies installation on horizontal return lines. Avoid upstream flow disturbances from pumps, elbows, valves, or fittings. Recommended straight pipe length is at least 5x pipe diameter upstream.
Brown wire: common (COM). Blue: normally open (N.O.). Black: normally closed (N.C.). Yellow-green: earth/ground.
Is it suitable for gases?
The 2850 is specified for liquid flow detection only.
Can it measure flow rate?
No. It provides a discrete flow/no-flow contact, not an analog measurement signal.
When is the 2850 preferred?
When mechanical flow monitoring is required for non-corrosive liquids, with 1” body and paddle adaptation for pipes up to 8”.
Coated steel box. Brass connector. Including stainless steel blades in different sizes for pipes from 1" to 8". Threaded connection 1” ISO 7/1 (EN 10226-1). Max. temp. 110ºC. Max. pressure 10 bar. 250V - 10A. Protection IP-54.
Reference: 2850
| Reference | Size | Minimum purchase unit | Weight (Kg) | Box / carton |
| 2850 06 | LIQUID FLOW SWITCH 1" | 1 | 0.658 | 1/10 |
