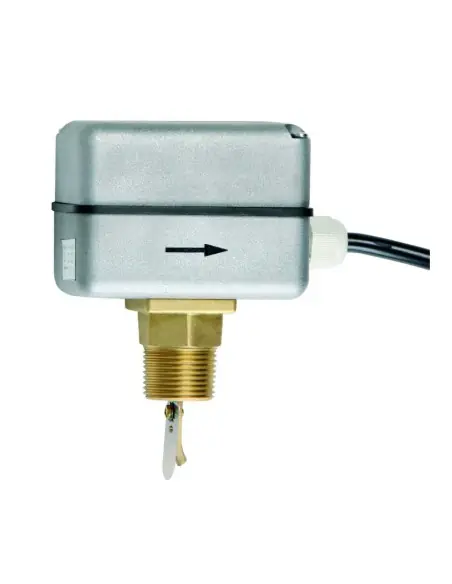

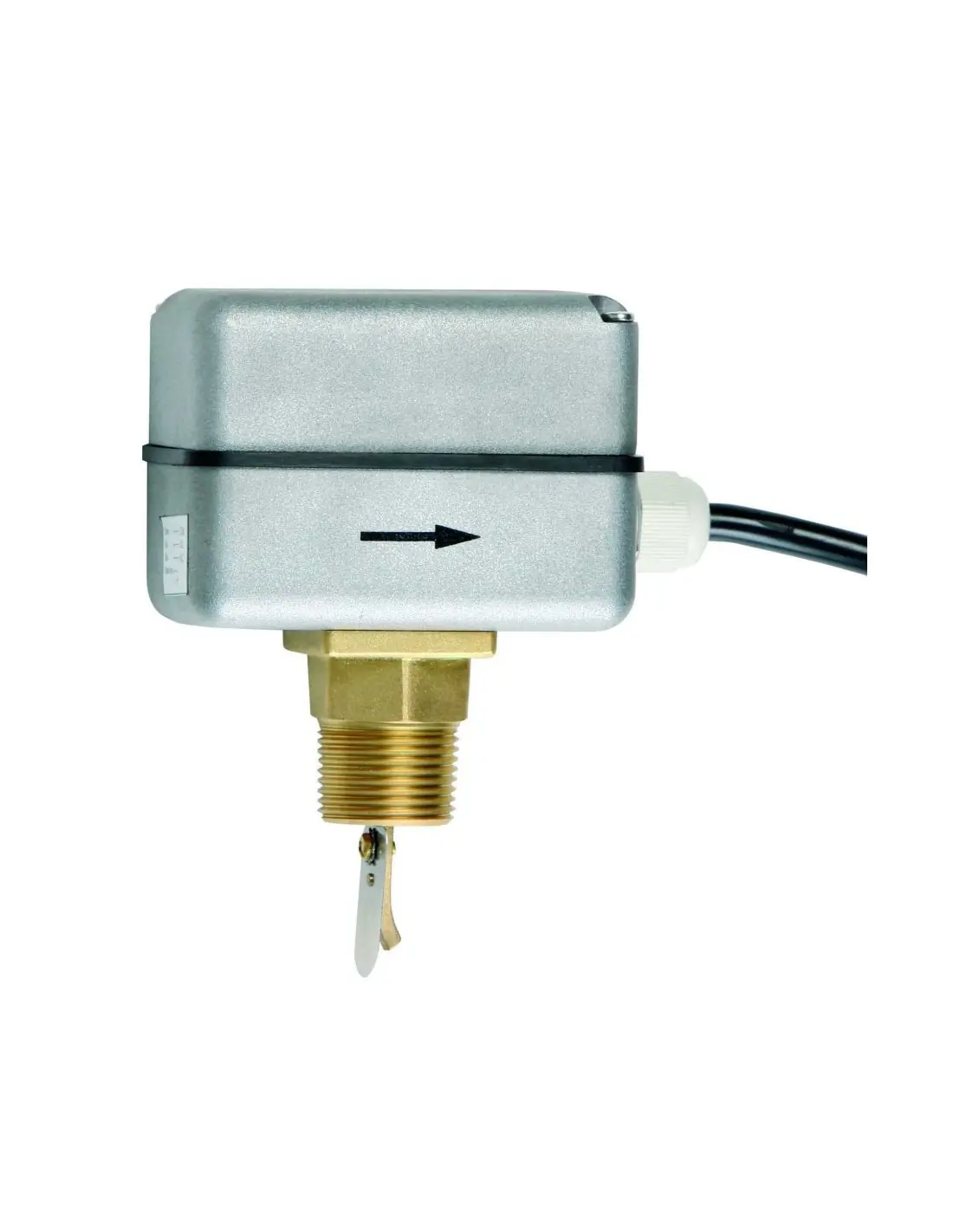

Genebre 2848 Liquid Flow Switch

The Genebre 2848 is a mechanical paddle-type flow switch designed for monitoring reduction or absence of flow in non-corrosive liquids, such as water and oil. It is typically used for process protection or interlock functions in heating, cooling, and industrial liquid circulation systems.

Technical Specifications

Connection: 1” male thread, ISO 7/1, EN 10226-1
Pipe size compatibility: 1” to 8”
Max operating pressure: 10 bar
Max liquid temperature: 110 °C
Electrical contact: 250 VAC / 10 A
Protection rating: IP64
Enclosure: galvanized aluminium alloy
Union: brass
Paddles: stainless steel

Operation and Adjustment

Flow actuates the stainless steel paddle, triggering the electrical contact. Adjustment is via a spring screw, with actuation and reset points depending on pipe diameter and paddle length. For 1” pipe, actuation range is 1.1–2.0 m³/h; for 8” pipe, 47–94 m³/h.

Installation

Recommended installation is on a horizontal return line. Avoid locations with high turbulence, such as near bends, pumps, or valves. Minimum straight pipe length before and after the switch should be 5 times the pipe diameter.

Electrical Contacts

Wiring: brown = common (COM), blue = N.O. contact, black = N.C. contact, yellow-green = earth.

Typical Applications

Pump protection against low or zero flow
Pump sequencing control
Auxiliary pump or machine start-up
Alarm signaling on loss of circulation
Shutdown of water cooling equipment on flow loss

FAQ

Is it suitable for corrosive liquids?
No. The datasheet specifies use with non-corrosive liquids only.

Can it be used as a flowmeter?
No. It is a flow limit switch, not an analog flowmeter.

Are there versions for different pipe sizes?
The base switch is 1”, with different paddles for 1” to 8” pipes.

Datasheet and documents

Description

Aluminium alloyed box. Brass connector. Including stainless steel blades in different sizes for pipes from 1" to 8". Threaded connection 1” ISO 7/1 (EN 10226-1). Max. temp. 110ºC. Max. pressure 10 bar. 250V - 10A. Protection IP-64.

Reference: 2848

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2848 06	LIQUID FLOW SWITCH 1"	1	0.629	1/20
