Technical specifications
| SIZE | BOX | MASTER BOX | CODE | I | ØP | Ch | ØH | L | h | M | Kv | PN | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4" | 6 | 24 | 6520050001 | 16,3 | 20 | 32 | 39 | 98,5 | 63 | 57 | 14 | 64 | 0,53 |
Applications

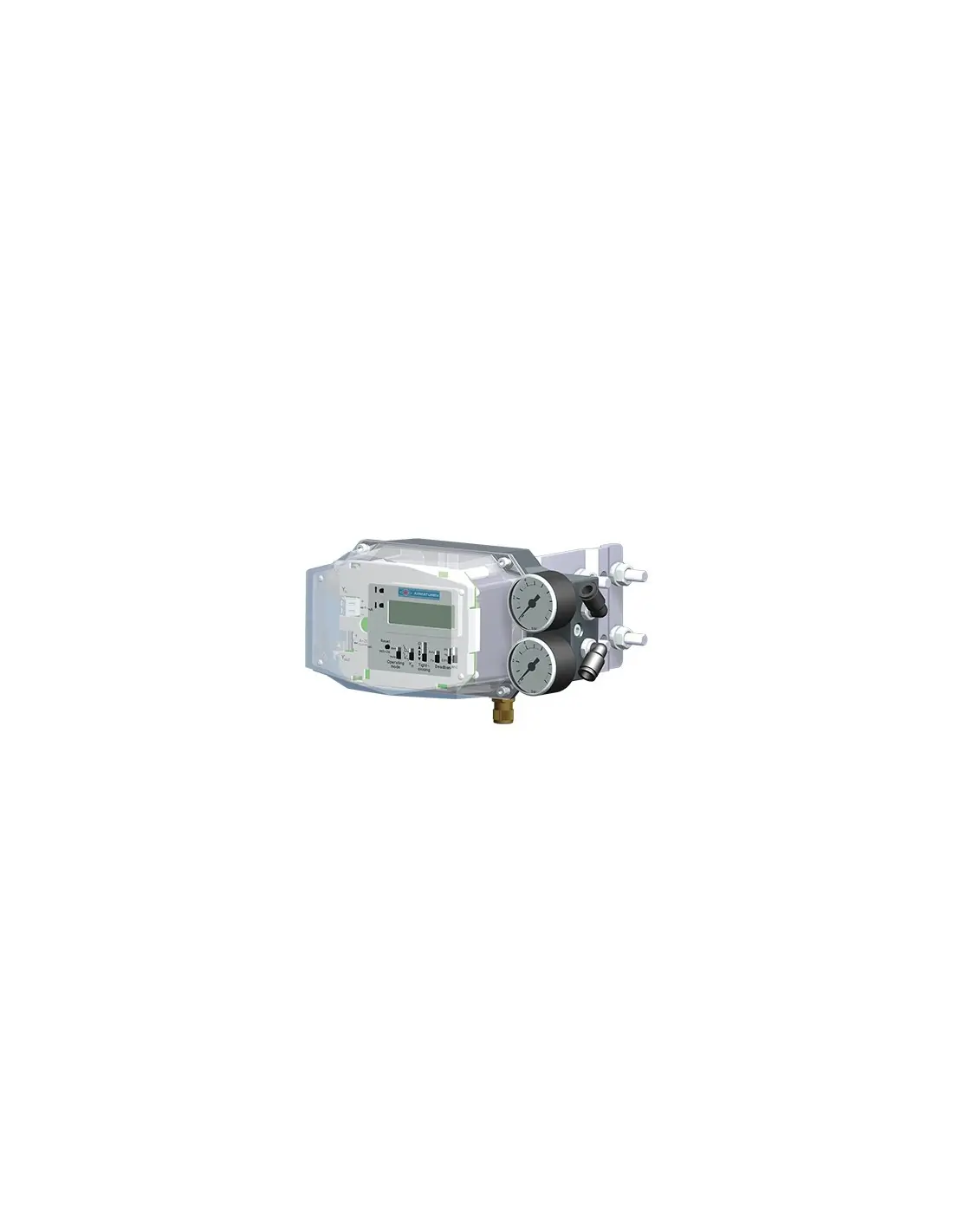

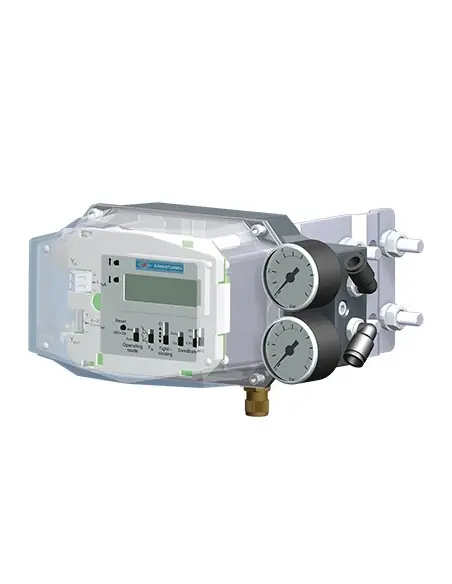

Linear Digital electro-pneumatic smart positioner STEVI-POS P20
STEVI-POS P20 – Digital Electro-Pneumatic Positioner
The ARI-STEVI-POS P20 is an I/P positioner for single-acting pneumatic linear or rotary actuators. It converts a 4–20 mA control signal into valve position, regulating actuator pressure via a pneumatic module. Actual position is detected by a non-contact Hall effect sensor, minimizing mechanical feedback wear.
Operating Range
- Linear actuator stroke: 10–120 mm
- Rotary actuator angle: 25°–100°
- Instrument air pressure: 1.4–7 bar
- Air connection: G1/4, optional 1/4-18 NPT
- Ambient temperature: -20 to +80 °C
- Enclosure protection: IP66 (EN 60529)
- Instrument air quality: ISO 8573-1, Class 4
- Air consumption (steady state): ≤0.024 m³/h at 25 °C
Applications
Used for control valves in:
- steam, condensate, and thermal circuits
- cooling water, hot water, HVAC
- chemical and industrial utility processes
- modulation in heat exchangers, vessels, bypass lines, and control loops
Control Functions
Deadband can be set automatically or manually to 0.5%, 1%, or 3%. The tight-closing function fully vents the actuator when the setpoint exceeds limits, increasing closing force. Final shutoff depends on valve, actuator, and Δp conditions.
Variants and Options
- Basic: 2-wire 4–20 mA
- With position feedback: passive 4–20 mA output, 9–32 V
- Optional gauge set 0–10 bar for supply and working pressure
- Plastic or stainless steel silencer
- Connections M20x1.5 / G1/4 or NPT adapters
FAQ
What happens on signal or air loss?
The valve is vented, following the fail-safe action of the single-acting actuator.
Mounting orientation?
Any orientation is permitted, except air connections and silencers must not face upward.
