Fival R01 – Reflex Borosilicate Gauge Glass, Ribbed Type

The Fival R01 is a ribbed borosilicate glass spare part for Reflex-type level gauges. It is not a complete sight glass assembly; it serves as the optical element installed in the gauge chamber, enabling direct visual indication of liquid and vapor phases.

Operating Principle

The Reflex surface features prismatic grooves. In the vapor/gas zone, incident light is reflected, resulting in a bright appearance, while in the liquid zone, refraction changes and the area appears darker. This configuration allows for direct level indication without electrical signal or mechanical float.

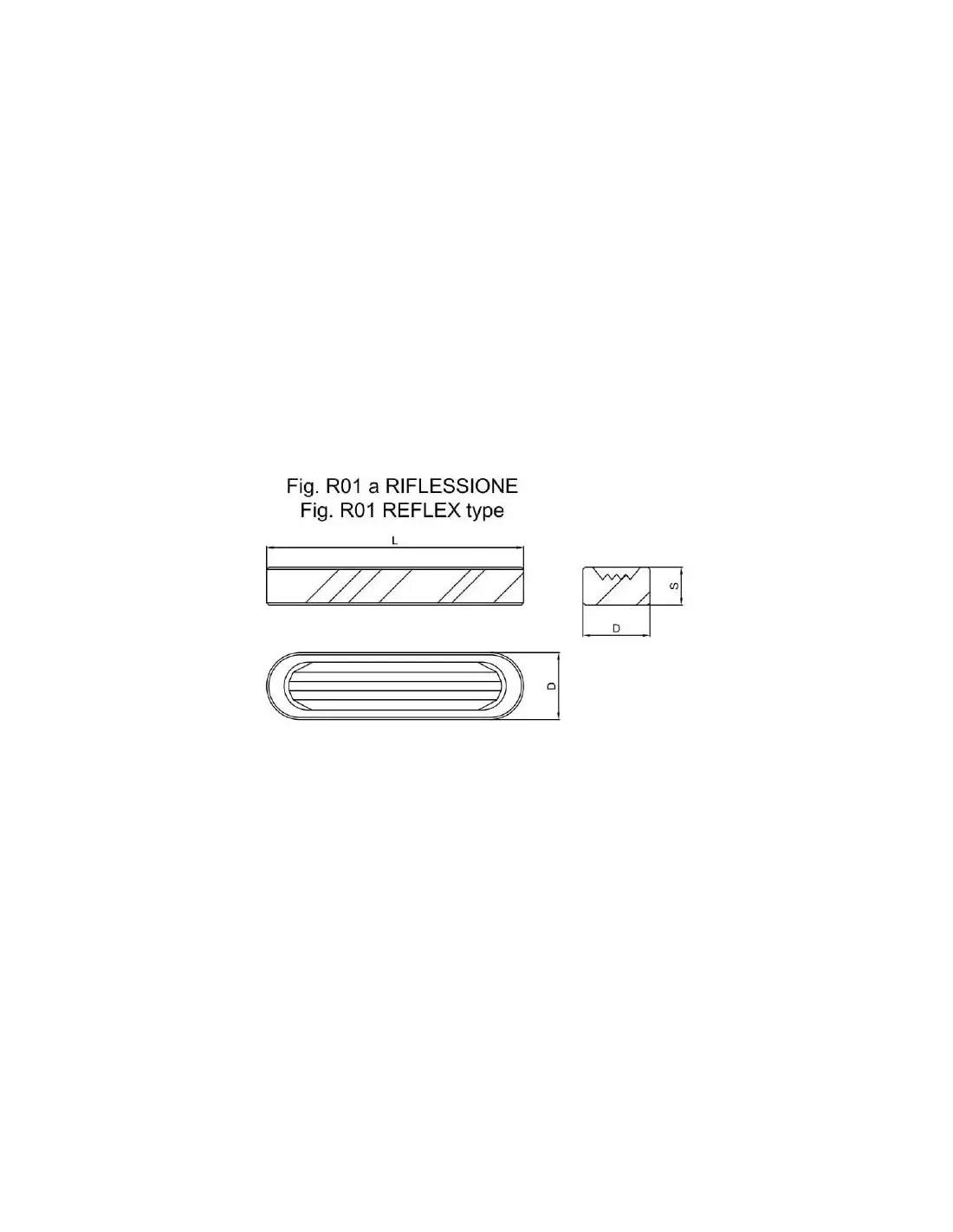

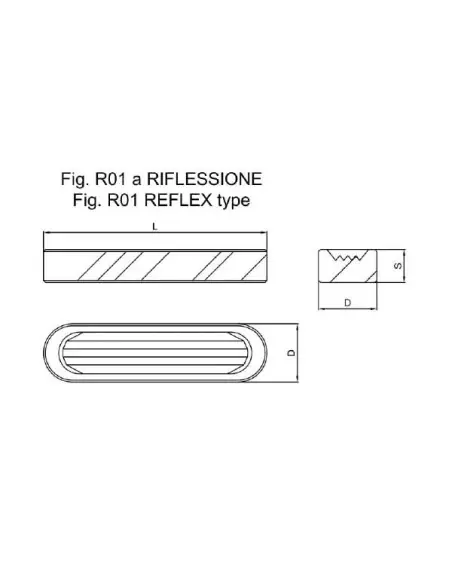

Dimensions and Variants

R01 is available as:

• Type A: width D 30 mm, thickness S 17 mm
• Type B: width D 34 mm, thickness S 17 mm
• Lengths L from 115 to 340 mm, for sizes 11 to 19

Selection is based on the existing gauge type, glass length, seat width, gasket type, and pressure class.

Operating Conditions

Technical documentation specifies maximum pressure resistance of 200 bar and maximum temperature of 300°C. Typical applications include saturated steam, hot water, industrial liquids, and aggressive media, subject to compatibility verification per process.

Reference Standards

Relevant standards: DIN 7081, TGL 7210, BS 3463. Expansion coefficient per DIN 52328, thermal shock resistance per DIN ISO 718, hydrolytic resistance per DIN ISO 719 / ISO 1776, and alkali resistance per DIN ISO 695.

Maintenance Considerations

During replacement, check seat flatness, gaskets, tightening torque, and cover condition. For high temperature or aggressive media, technical drawings recommend a MICA shield between glass and process fluid.
