Fival S.r.l. – Technical profile of a level gauge, sight glass and visual indication equipment manufacturer

Fival S.r.l. is an Italian manufacturer of industrial valves, level indicators, sight glasses, filters and piping accessories. In the product range represented through Philippopoulos S.A., the main technical focus is on level gauges and visual level indication equipment for boilers, pressure vessels, tanks and condensate systems.

The product range includes:

• reflex level gauges,
• transparent level gauges,
• magnetic level gauges,
• level gauge cocks,

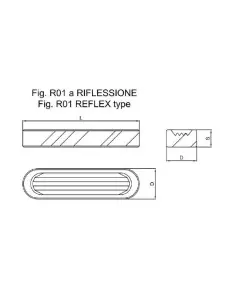

• borosilicate glass spare parts,

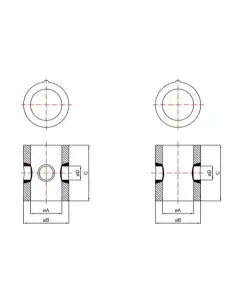

• packing sleeves,

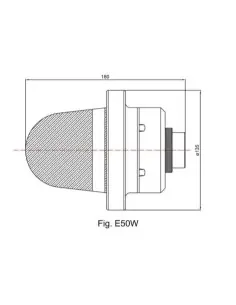

• illumination lamps for transparent gauges.

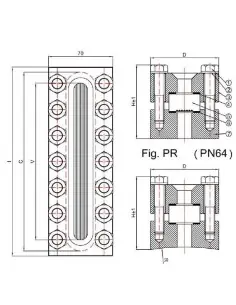

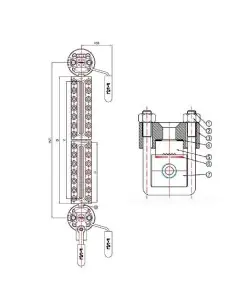

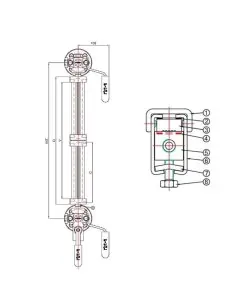

Reflex level gauges provide local visual indication by differentiating liquid and vapour phases through optical refraction on a prismatic glass surface. They are commonly used on steam boilers, pressure vessels and process tanks where clear local indication of liquid level is required.

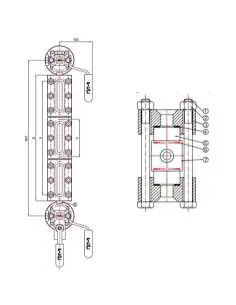

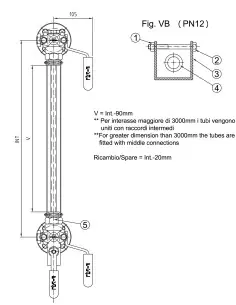

Transparent level gauges allow direct observation of the liquid column. They are suitable when the operator must see colour, turbidity, foaming or suspended solids, not only the level interface. In low-light areas, an illumination lamp may be required.

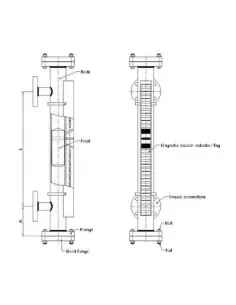

Magnetic level gauges use a float inside a chamber and an external magnetic indication system. They can be equipped with level switches or 4–20 mA transmitters, allowing the local level indication to be connected to PLC, BMS or alarm systems.

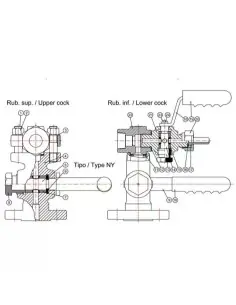

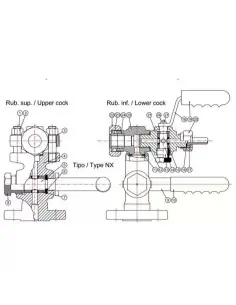

Level gauge cocks are safety-critical components. They allow isolation, draining and maintenance of the glass gauge without immediate intervention on the main vessel. Selection must consider PN rating, temperature, body material, packing material, drain arrangement and compatibility with the gauge type.

For boilers and pressure vessels, the level gauge is not a visual accessory only. It is part of the operating safety concept and must be selected, installed and maintained according to pressure, temperature, medium and inspection requirements.
