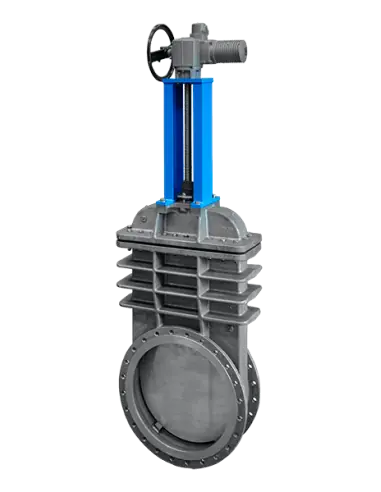

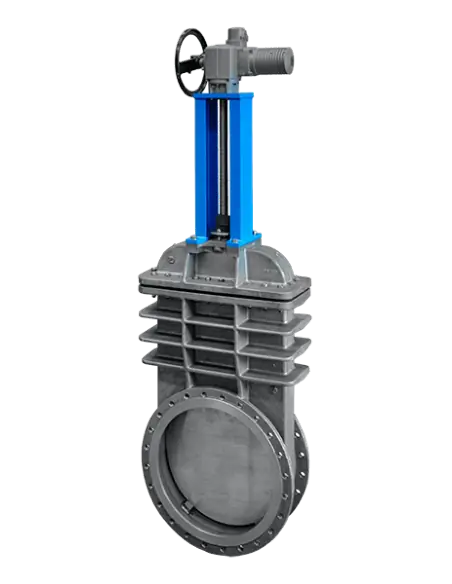

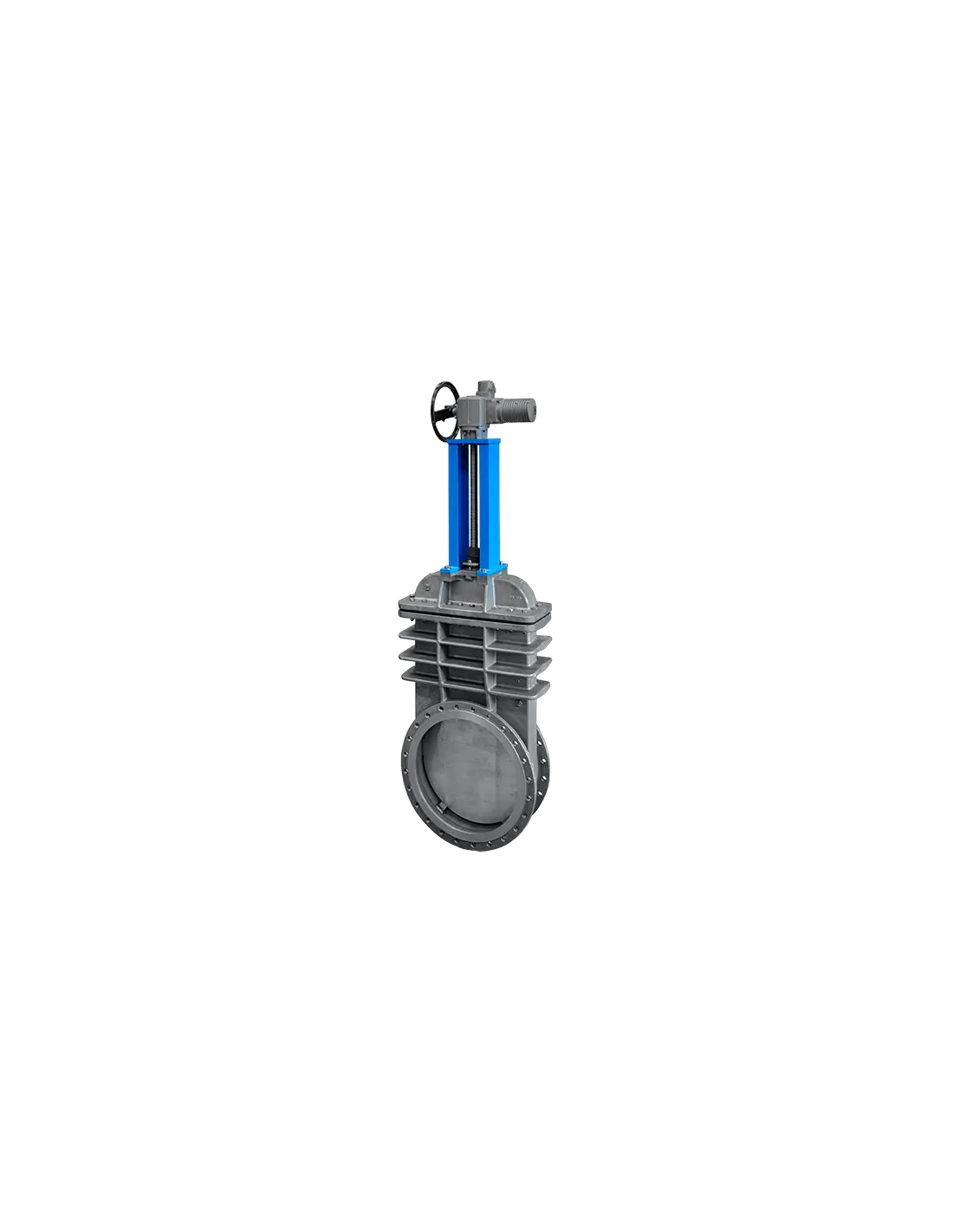

Knife Gate Valve Zubi T500 / T500Bi for High Pressure Applications

The Zubi T500 / T500Bi is a flanged knife gate valve designed for high-pressure services. The T500 model provides unidirectional sealing, while the T500Bi is used for bidirectional isolation. The body is monoblock with internal wedges and a bolted bonnet to minimize atmospheric leakage.

Operating Range

  • Sizes: DN150–DN1600
  • DN150–DN800: 25 bar
  • DN900–DN1600: 10 bar
  • Higher pressures: subject to manufacturer verification
  • Testing: UNE-EN 12266-1
  • Flanges: EN1092 PN10/16/25, ANSI B16.5 / ANSI150, other drillings on request.

Fluids and Applications

The valve is intended for clean or lightly loaded fluids with solids, in lines where operating pressure exceeds typical knife gate valve limits. Typical applications include water and wastewater treatment, chemical industry, power plants, mining, pulp, biomass, and bulk handling.

Materials and Sealing

Body: A216 WCB, CF8, CF8M, CF3M, 254SMO, 654SMO, 904L, Duplex SAF2205, Superduplex SAF2507, AISI316Ti.
Blade: AISI304L, AISI316L, 254SMO, Hardox, 904L, Duplex or Superduplex.
Seat: EPDM, NBR, Silicone, Viton/FKM, PTFE, RPTFE, Graphite or Flucast.
Packing: Synt+PTFE, PTFE, Graphite, Ceramic or greased cotton. Selection is based on pressure, chemical compatibility, temperature, and leakage requirements.

Actuation and Accessories

Available with handwheel, gearbox, chain wheel, pneumatic double-acting, hydraulic, or electric actuator. Pneumatic operation requires air 5–6 bar, dry, filtered, and lubricated. Optional: limit switches, proximity sensors, solenoid valves, positioner 4–20 mA, locking devices, flushing holes, stem extension, and regulation V-ports.

Maintenance

Main inspection points include packing, seat, and body/bonnet O-ring. After installation, the gland is tightened crosswise only as needed to stop leakage; excessive tightening increases operating force and reduces packing lifespan.

Datasheet and documents

Description

Main Features

  • Single piece monoblock body with internal wedges and Bolted bonneted giving full tightness to atmosphere.
  • Gate with rounded edges to prolong working life of the seat.
  • Internal reinforced parts to work under high pressure conditions.
  • Minimum packing area, reduced leak risk and maintenance.
  • Recommended for installations handling highly corrosive or hazardous fluids, or plants working with high pressures.

DIRECTIVAS

  • DIR 2006/42/CE (machinery)
  • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
  • DIR 2014/34/EU (ATEX) Area 2&22

Technical Data

FLANGE CONNECTION

  • PN6/PN10/PN16/PN25/PN40
  • ANSI125/150
  • BST E / BST D
  • JIS 5K JIS10K
  • AS-2129-D/E

SIZES & PRESSURES

  • DN150 to DN800: Up to 25 bar

(Higher design pressures on request)

TIGHTNESS

  • Metal/Metal
  • PTFE
  • Watertight

MATERIALS

BODY  GG25, GGG40, A216 WCB, CF8 (AISI304), CF8M (AISI316), CF3M (AISI316L), 254SMO, 654SMO, AISI310, AISI904, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti.

SEAT EPDM, NITRILE (NBR), SILICONE, VITON, GRAPHITE, FLUCAST, PTFE.

GATE AISI304L, AISI316L, 254SMO, HARDOX, AISI310, AISI904L, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti.

PACKING SYNT+PTFE, Pure PTFE, GRAPHITE, CERAMIC, Greased COTTON.

ACTUATORS

Manual, pneumatic, hydraulic, electric, gear box, hand lever, square end, chain-wheel, pneumatic with security hand wheel, pneumatic with security gear box.

ACCESSORIES AND OPTIONS

Limit switches, proximity sensors, solenoid valves, positioner 4/20mA, locking devices, extension, regulation v-ports, cleaning holes, etc.
