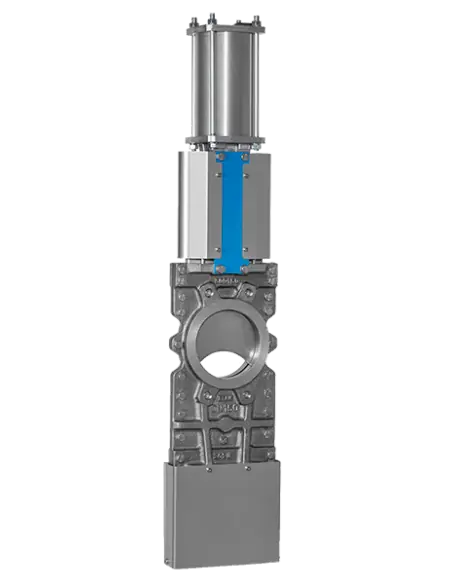

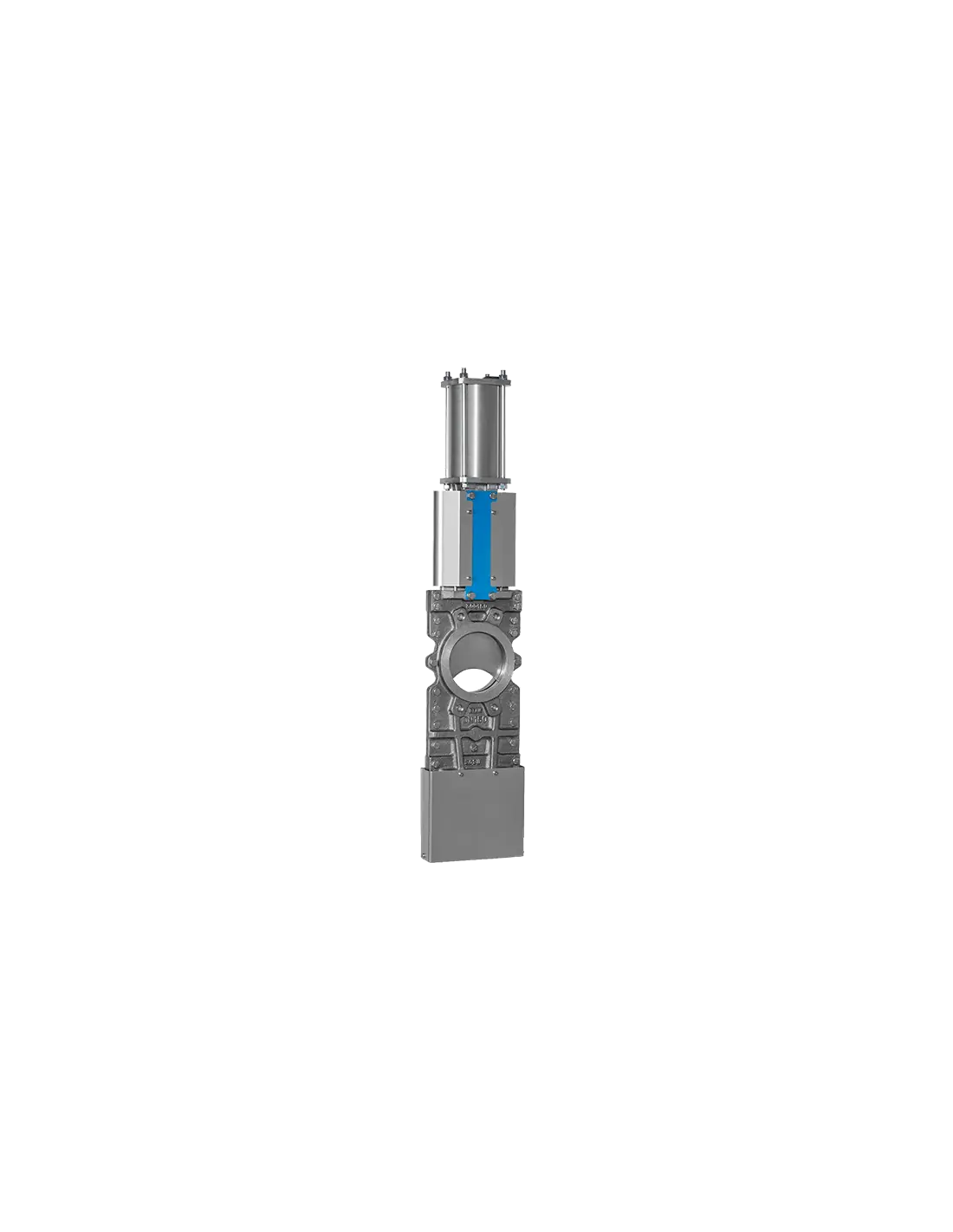

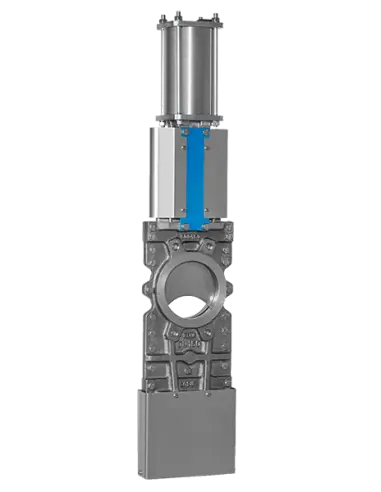

Zubi T300 Through Conduit Knife Gate Valve

The Zubi T300 Through Conduit is a wafer-type knife gate valve with a two-piece cast body, full bore flow, and double seat. The through-conduit design is intended for isolation in high-viscosity fluids where solid accumulation at the seat must be minimized. The double seat allows for tight isolation in both normal and reverse flow directions.

Applications

Suitable for:

  • high-consistency pulp,
  • slurry and liquor,
  • granular or solids-laden fluids,
  • wastewater, chemical circuits, and general industrial use.

Not selected as a standard throttling valve. For throttling applications, specialized control is required, e.g., with regulation V-ports where applicable.

Operating Limits and Connections

  • DN50–DN250: 10 bar
  • DN300–DN450: 6 bar
  • DN500–DN600: 4 bar
  • Higher pressures: subject to application review
  • Flanges: PN6/10/16/25/40, ANSI 125/150, BST D/E, JIS 5K/10K, AS-2129 D/E
  • Standards: 2006/42/CE, 2014/68/EU PED, 2014/34/EU ATEX Area 2 & 22

Materials and Sealing

Body: GG25, GGG40, A216 WCB, CF8, CF8M, CF3M, 254SMO, 654SMO, AISI310, 904L, Duplex SAF2205, Superduplex SAF2507, AISI316Ti.
Seats: EPDM, NBR, Silicone, Viton, Graphite, Flucast, PTFE.
Blade: AISI304L, AISI316L, 254SMO, Hardox, 904L, Duplex or Superduplex.
Packing: Synt+PTFE, pure PTFE, Graphite, Ceramic or greased cotton.

Actuation and Accessories

Available with handwheel, lever, gearbox, chain wheel, pneumatic, hydraulic, or electric actuator. For pneumatic cylinder, 5–6 bar air is recommended, dry, filtered, and lubricated. Optional: limit switches, proximity sensors, solenoid valves, positioner 4–20 mA, locking devices, bonnet, cleaning holes, and stem extension.

Maintenance

The valve can be installed in any position, but in horizontal or inclined installations, large actuators require support. After line pressure, the gland is checked; it is tightened crosswise only as needed to stop leakage, as over-tightening increases operating force and reduces packing life.

Datasheet and documents

Description

Main Features

  • Wafer style casted two part internally machined bolted body (Stainless Steel version includes internal polyethylene sliders as standard).
  • Full port design, with great flow capacity and minimal pressure drop.
  • Polished stainless steel gate in both sides and with rounded edges to ensure life of seat/packing elements.
  • Ideal for high concentrated pulp stock, slurry, liquor and granulates.

DIRECTIVAS

  • DIR 2006/42/CE (machinery)
  • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
  • DIR 2014/34/EU (ATEX) Area 2&22

Technical Data

FLANGE CONNECTION

  • PN6/PN10/PN16/PN25/PN40
  • ANSI125/150
  • BST E / BST D
  • JIS 5K JIS10K
  • AS-2129-D/E

SIZES & PRESSURES

  • DN50 to DN250: 10 bar
  • DN300 to DN450: 6 bar
  • DN500 to DN600: 4 bar

(Higher design pressures on request)

TIGHTNESS

  • Metal/Metal
  • PTFE
  • Watertight

MATERIALS

BODY  GG25, GGG40, A216 WCB, CF8 (AISI304), CF8M (AISI316), CF3M (AISI316L), 254SMO, 654SMO, AISI310, AISI904, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti.

SEAT EPDM, NITRILE (NBR), SILICONE, VITON, GRAPHITE, FLUCAST, PTFE.

GATE AISI304L, AISI316L, 254SMO, HARDOX, AISI310, AISI904L, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti.

PACKING SYNT+PTFE, Pure PTFE, GRAPHITE, CERAMIC, Greased COTTON.

ACTUATORS

Manual, pneumatic, hydraulic, electric, gear box, hand lever, square end, chain-wheel, pneumatic with security hand wheel, pneumatic with security gear box.

ACCESSORIES AND OPTIONS

Limit switches, proximity sensors, solenoid valves, positioner 4/20mA, sleeves, locking devices, extension, regulation v-ports, cleaning holes, bonnet, etc.
