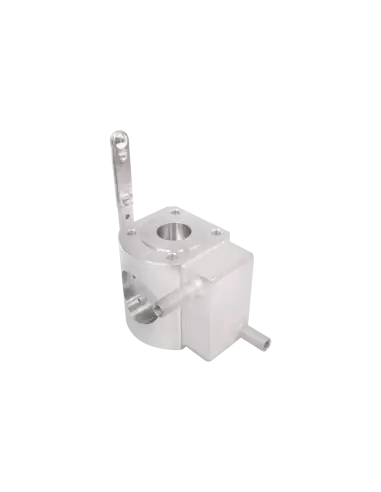

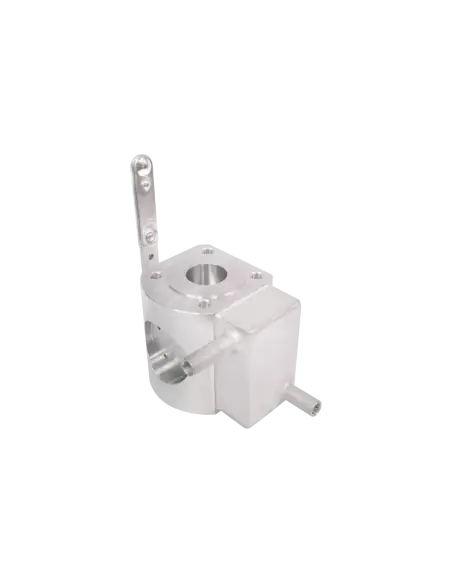

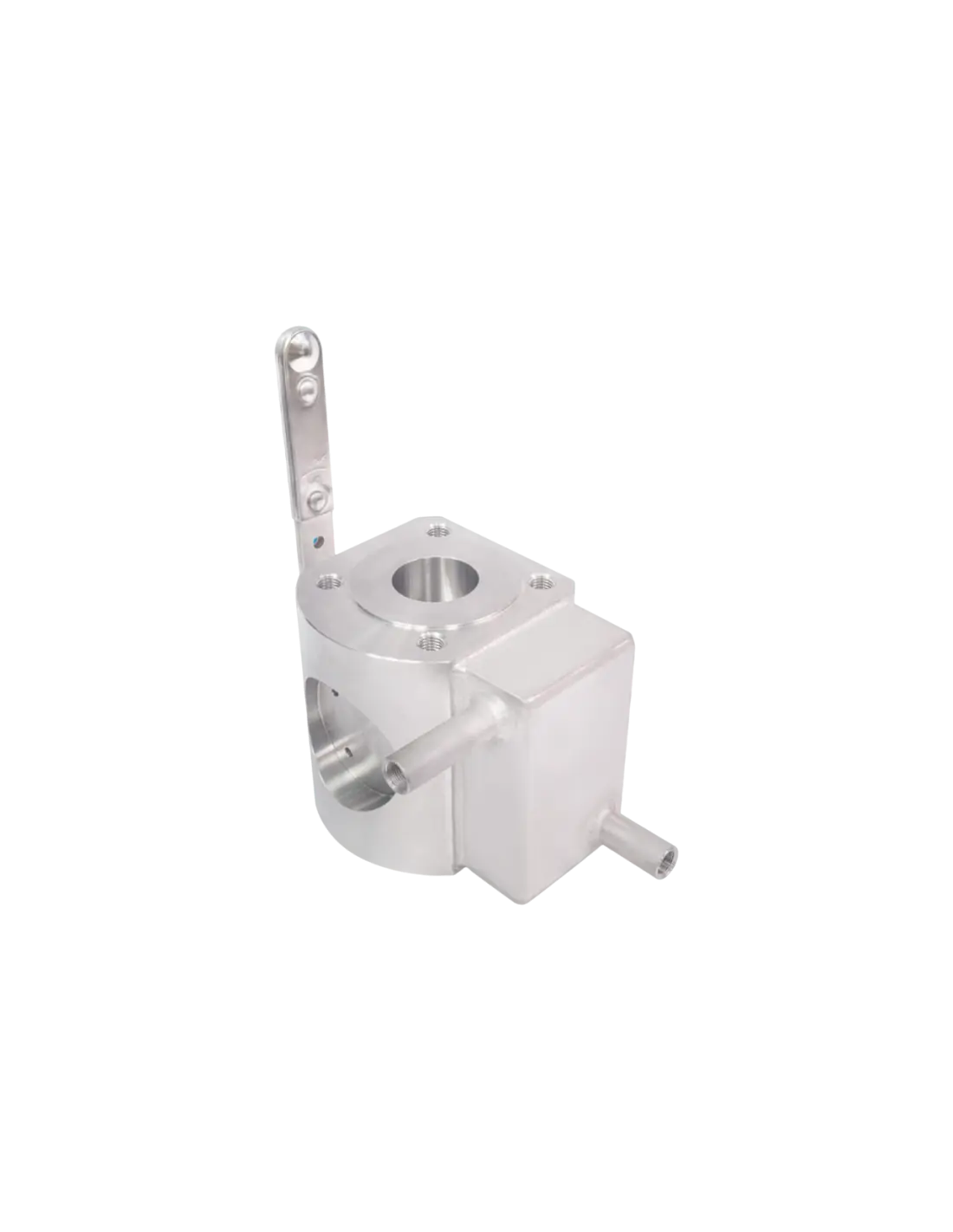

Adler FT4 Three-Way Ball Valve with Heating Jacket

The Adler FT4 is a full bore, wafer-type, three-way ball valve with 90° rotation and integrated heating jacket. Designed for heated process lines requiring flow diversion or selection between three branches, the heating jacket prevents product solidification or viscosity increase within the valve body.

Technical Data

  • Pressure rating: PN10–PN40 or ANSI 150–300
  • Flanges: EN 1092-1 or ANSI B16.5
  • Construction: ANSI B16.34 / BS EN 12516-2
  • Full bore per ISO 14313
  • Body materials: ASTM A105, ASTM A479 304/304L, ASTM A479 316/316L
  • Ball: ASTM A479 304/304L, ASTM A351 CF8, ASTM A479 316/316L, or ASTM A351 CF8M
  • Seats: PTFE, optional RPTFE
  • Stem sealing: PTFE / graphite chevron rings
  • O-ring: FKM / Viton
  • Top flange: ISO 5211
  • Max jacket pressure: 10 bar

Operation and Applications

FT4 is selected for three-way flow arrangements where face-to-face length is limited. The heating jacket is used for resins, waxes, oils, bitumen, polymers, and chemicals prone to increased viscosity or crystallization at lower temperatures.

Certifications and Options

Complies with PED 2014/68/EU, ATEX 2014/34/EU, ISO 15848, fire-safe ISO 10497, antistatic design, and SIL 3 capable for automated valves. Available with stem extension, pneumatic or electric actuator, manual gearbox, and positioner.

FAQ

When is FT4 preferred over a two-way jacketed valve?
When process requires flow diversion or selection between three branches.

What should be checked in the specification?
DN, PN/Class, flow arrangement, body material, PTFE/RPTFE seat, product temperature, jacket pressure 10 bar, and actuator torque.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105
  • ASTM A479 Type 304
  • ASTM A479 Type 304L
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE

Datasheet and documents

Description

Ball valve three way with heating jacket made in carbon steel or stainless steel

Flanged, threaded or welding ends

Made from FT4 ball valve type

Standard productions

maximum pressure of heating jacket 10 bar

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

pneumatic actuator double/single acting

electric  actuator

manual gear box

pneumatic / electro-pneumatic positioner

Certificates

ISO 9001:2015 by L.R.

PED DIR. 2014/68/UE by L.R.

ATEX DIR. 2014/34/UE by B.V.

FIRE SAFE EXECUTION by L.R.

ISO 15848 by TÜV

ANTISTATIC DEVICE by L.R.

FIRE SAFE TESTED ISO 10497 by L.R.

EAC CERTIFICATION by B.V.
