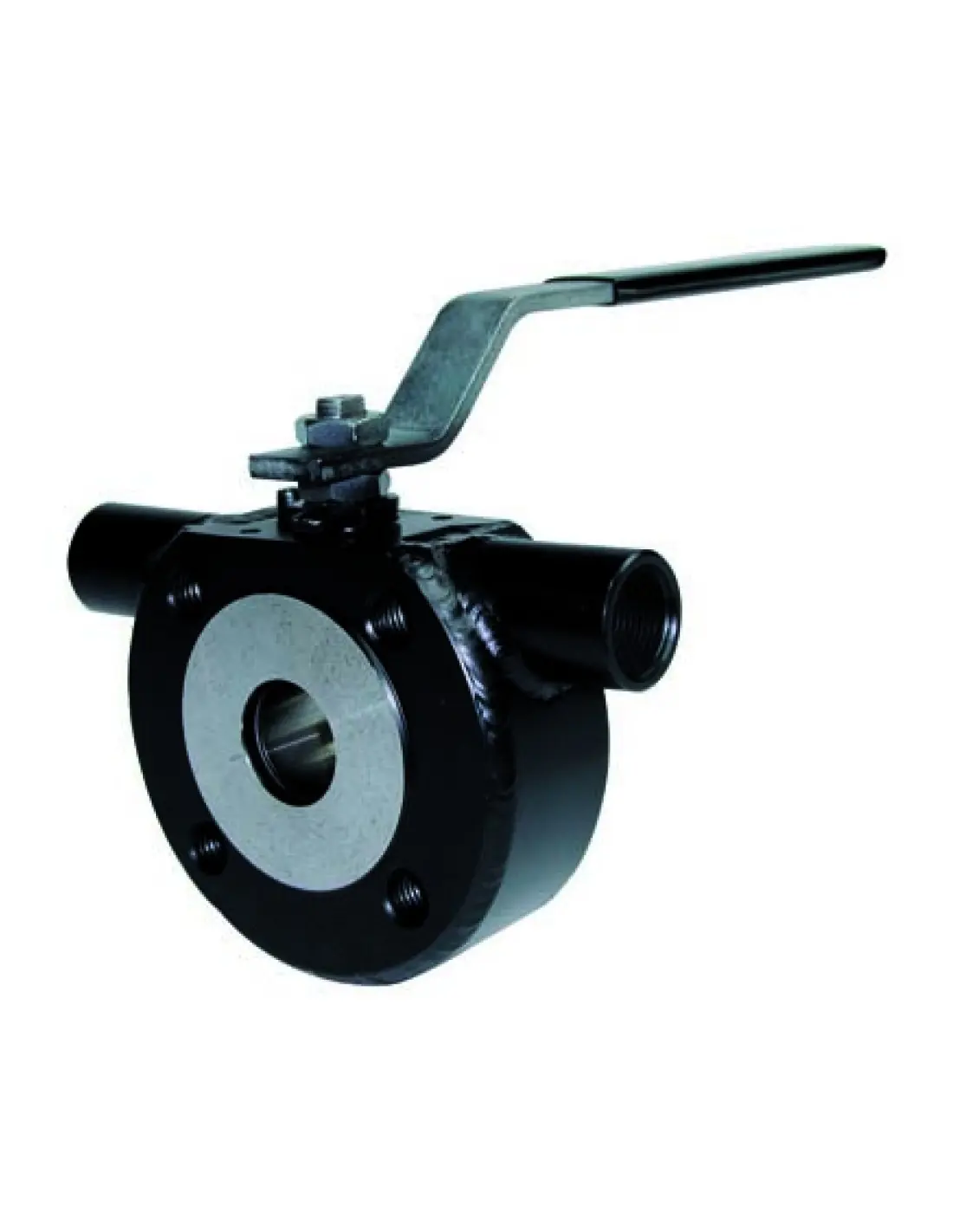

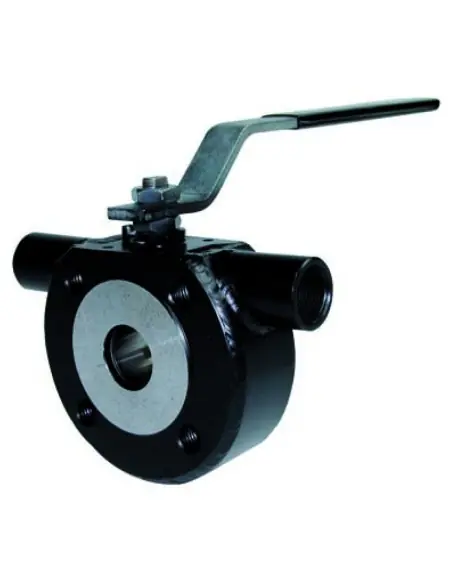

Genebre 2115 Ball Valve with Heating Jacket

The Genebre 2115 is a full bore ball valve, wafer type, designed for installation between DIN PN16 flanges. The body is manufactured from forged carbon steel ASTM A105, with ball, stem, and cover in AISI 304. The heating jacket is intended to maintain temperature in the valve zone, primarily for media that increase in viscosity, crystallize, or solidify at lower temperatures.

Technical Data

Type: full bore ball valve, wafer pattern
Installation: between DIN PN16 flanges
Sizes: 1" to 4"
Max operating pressure: 16 bar
Operating temperature: -20°C to +180°C
Seats and seals: PTFE
O-ring: FKM
Operation: manual lever
Heating jacket connection: G 3/4" ISO 228

Operational Use

The 2115 series is specified for heated lines conveying oils, resins, waxes, bituminous products, fats, or chemicals that must not cool within the ball cavity. The heating jacket does not replace thermal design of the pipeline; product temperature, heating medium, insulation, and residence time must be evaluated.

Installation and Maintenance

The valve is bidirectional and can be installed in any orientation, preferably horizontal with stem upwards. Flanges must be aligned; piping loads should not be transferred to the valve body. Manufacturer recommends uniform cross-tightening and leakage testing after installation.

FAQ

Is it suitable for flow regulation?
Not as a primary function. Prolonged partially open positions may reduce seat service life.

What should be checked before selection?
DN, PN16 flanges, product temperature, compatibility with ASTM A105/AISI 304/PTFE/FKM, and heating requirement via G 3/4" connection.

Standard (Options)

Connection (Options)

Flanged (Wafer)

Material (Options)

ASTM A105

Pressure Rating (Options)

PN 16

Seat (Options)

PTFE

Datasheet and documents

Description

Body: forged carbon steel A-105. Ball stem and cover: stainless steel AISI 304. Seats and seals: PTFE Temp. -20ºC +180ºC. Manually operated by handle.

Reference: 2115

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2115 06	1PC FULL BORE BALL VALVE HEATING CHAMBER FLANGES PN16 1"	1	2.95	1/7
2115 07	MOUNTING BETWEEN FLANGES PN16	1	5	1/1
2115 08	MOUNTING BETWEEN FLANGES PN16	1	6.5	1/2
2115 09	MOUNTING BETWEEN FLANGES PN16"	1	8	1/2
2115 10	1PC FULL BORE BALL VALVE HEATING CHAMBER FLANGES PN16 2 1/2"	1	16	1/1
2115 11	MOUNTING BETWEEN FLANGES PN16	1	19.76	1/1
2115 12	MOUNTING BETWEEN FLANGES PN16	1	30	1/1
