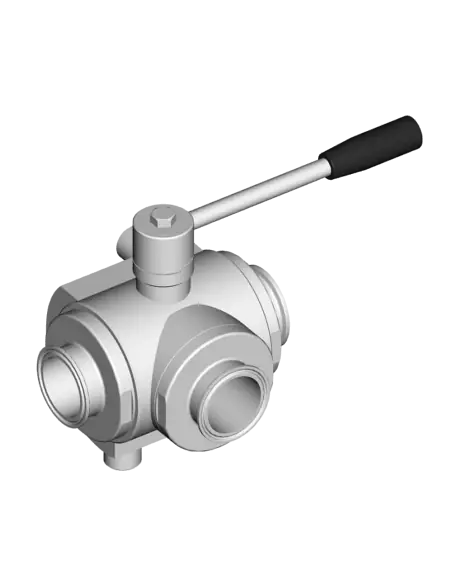

3-Way Ball Valve with Heating Jacket 4G Ghidini 300130C

The 300130C is a manually operated 3-way T-port ball valve with 4 seats, heating jacket, and DIN 32676 clamp connections. Designed for flow diversion, mixing, or bypass in process lines where product temperature must be maintained within the valve body. Technical datasheets reference code 300130C, though some pages may display 310130C in the title.

Technical Data

  • Operation: Stainless steel lever
  • Bore: Full or reduced
  • Materials: AISI 304L / 1.4307 or AISI 316L / 1.4404 (per tube series)
  • Seats: modified virgin PTFE
  • Temperature range: -20°C to +170°C
  • Finish: Polished
  • Pressure: up to PN100 (small sizes), decreasing to PN16 at DN100 / 4"
  • Jacket connections: 3/8" or 1/2" (per size)

Clamp Series Selection

Available in three clamp executions:

  • DIN 32676 Tab.4 Reihe C for BS/OD ASTM A270 tube
  • DIN 32676 Tab.2 Reihe A for DIN 11850 tube
  • DIN 32676 Tab.3 Reihe B for ISO 1127 tube

Selection must be based on actual tube OD, not just DN, as clamp and gasket dimensions vary.

Sealing and Application

Features 4 PTFE ball seats, 3 PTFE sleeve seals, double PTFE stem seal, and FKM stem O-ring. Heating jacket is specified for syrups, fats, waxes, resins, chocolate, or chemicals with high viscosity or crystallization risk at low temperature.

Options

On request: antistatic design ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T135°C Db, M.O.C.A. CE 1935/2004 compliance, seat materials PTFE glass, PTFE carbographite, PTFE inox (up to +200°C), or UHMW-PE (up to +80°C).

FAQ

When is this selected over 303030C?
When manual lever operation is required and ISO 5211 actuator mounting is not needed.

Is this a control valve?
Not primarily. It is an on/off valve for diversion, mixing, or bypass duties.

Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port with HEATING JACKET

Drive: Inox lever

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)
  • CLAMP normative DIN 32676 TAB.2 REIHE A For TUBE according to normative DIN 11850
  • CLAMP normative DIN 32676 TAB.3 REIHE B For TUBE according to normative ISO 1127

Flow: Full and reduced

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure:

  • from 1/2” to 4”
  • from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
