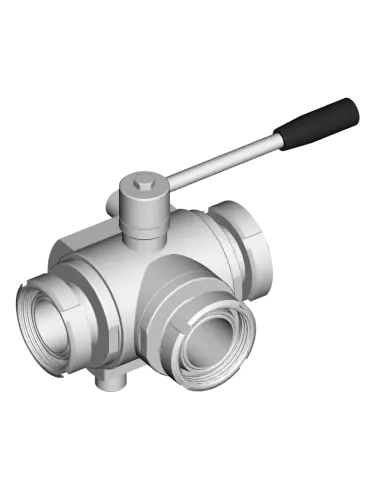

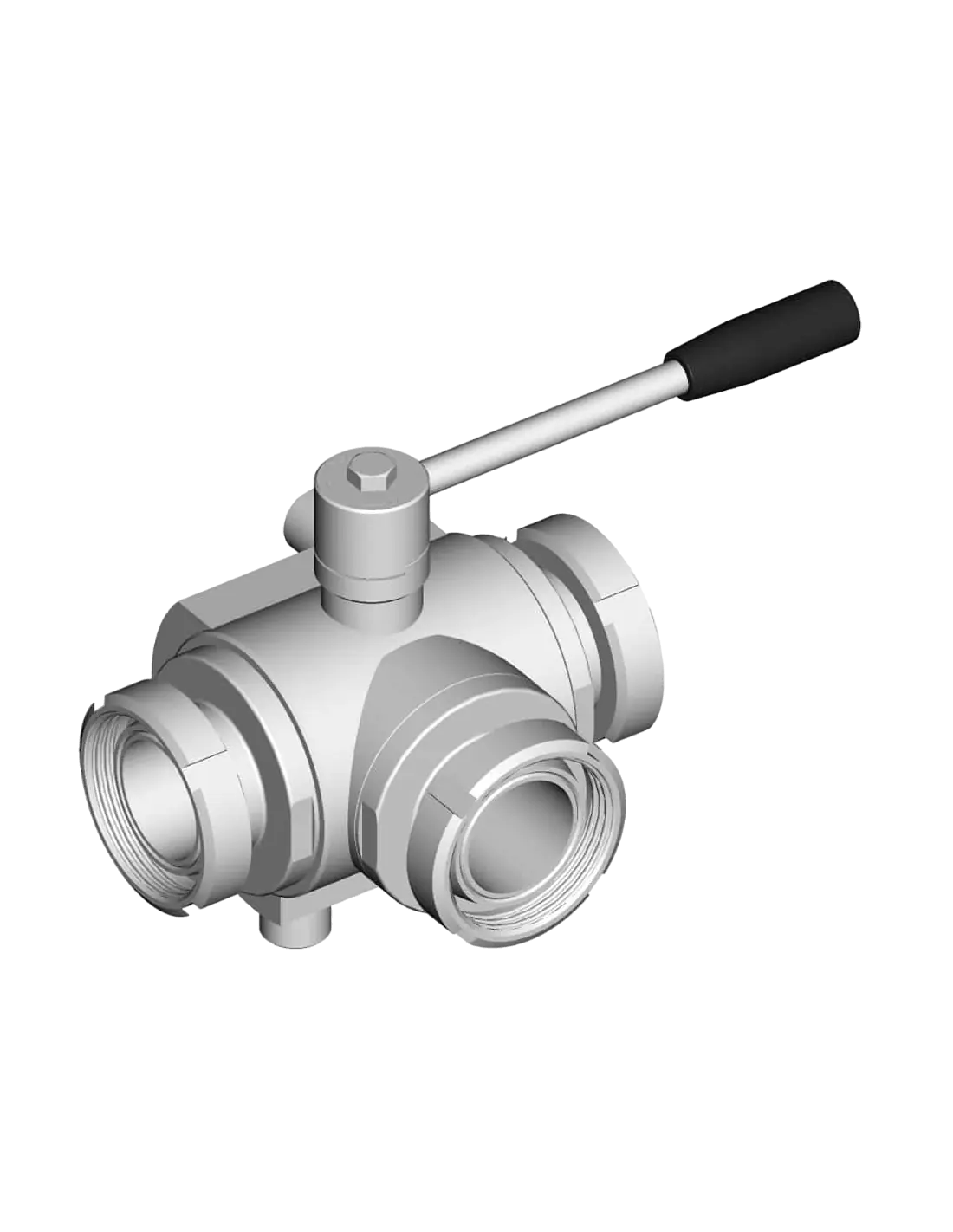

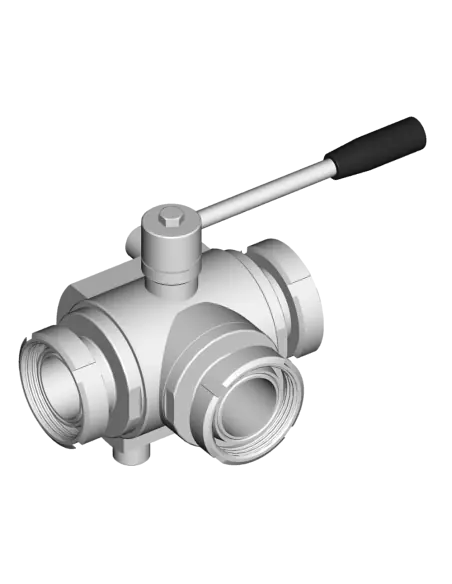

3-Way Ball Valve with Heating Jacket 4G Ghidini 300127C

Three-way T-port ball valve with 4 seats, integrated heating jacket, and DIN 11851 male/male/male connections. Designed for flow diversion, mixing, or bypass in process lines where thermal maintenance of the medium inside the valve body is required.

Technical Data

• Body materials: AISI 304L / 1.4307 or AISI 316L / 1.4404
• Sizes: DN10 to DN100
• Bore: full bore
• Seats: modified virgin PTFE
• Operating temperature: -20°C to +170°C
• Operation: stainless steel lever
• Finish: external polished
• Pressure rating: PN100 up to DN20, PN64 DN25–DN40, PN40 DN50–DN80, PN16 DN100
• Heating jacket connections: 3/8" up to DN25, 1/2" from DN32 to DN100

T-Port Operation

The T-pattern ball enables communication between three branches depending on lever position. In industrial process lines, it is used for bypass, recirculation, tank selection, or mixing two streams to a common outlet. Not recommended for continuous throttling without flow velocity, pressure drop, and seat wear assessment.

Sealing and Thermal Use

Configuration includes 4 PTFE ball seats, 3 PTFE sleeve seals, double PTFE stem seal, and FKM stem O-ring. The heating jacket is specified for syrups, fats, waxes, resins, chocolate, and chemicals prone to crystallization or viscosity increase at lower temperatures.

Options

On request: ATEX antistatic design II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T135°C Db, M.O.C.A. CE 1935/2004 compliance, alternative seats (PTFE glass, PTFE carbographite, PTFE inox up to +200°C, UHMW-PE up to +80°C).

FAQ

When is this selected over 300125C?
When the piping requires male DIN 11851 connections instead of female.

Is it suitable for CIP?
Can be used if drainage, dead legs, installation orientation, and PTFE/FKM compatibility with cleaning chemicals are verified.
