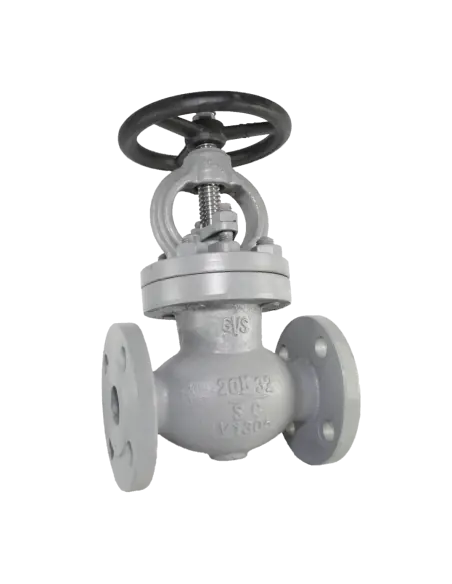

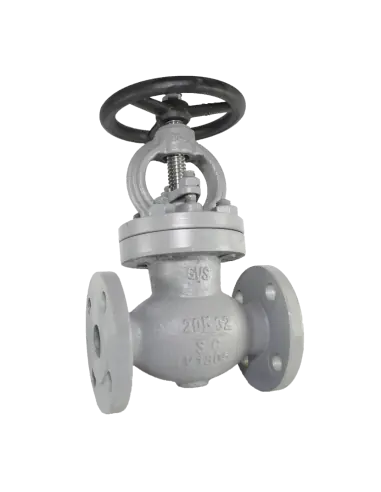

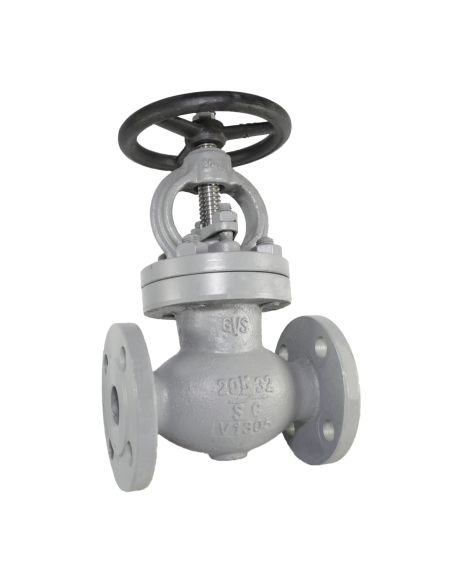

JIS 20K F7313 Cast Steel Globe Valve

The JIS F7313 is a straight-pattern globe valve constructed from cast steel, featuring flanged ends to JIS 20K standard. It is specified for marine piping systems requiring manual isolation or throttling at higher pressure classes. The valve is listed as a straight-flow, cast steel globe valve to JIS 20K.

Technical Specifications

  • Type: straight-pattern globe valve
  • Standard: JIS
  • Pressure rating: 20K
  • Connection: flanged
  • Body: cast steel SC49
  • Seat: stainless steel SCS2
  • Disc: stainless steel SCS2
  • Stem: stainless steel SUS403
  • Operation: handwheel
  • Available DN: 32 to 250

Test Pressure

Hydrostatic test values as per datasheet:

  • Body: 5.00 MPa
  • Seat: 3.67 MPa

Test pressures are not to be used as continuous operating pressures without verification of pressure-temperature rating, media temperature, duty cycle, and class society requirements.

Typical Applications

F7313 is selected for marine systems requiring steel body and JIS 20K flanges:

  • service steam lines
  • compressed air and auxiliary gases
  • fuel or lube oil lines
  • feed water and auxiliary liquids
  • flow regulation points upstream/downstream of equipment

Difference from F7319

F7319 refers to a lower pressure class steel globe valve compared to F7313. F7313 JIS 20K is specified where network, flanges, and design pressure require 20K drilling and corresponding test pressures. Not interchangeable without checking DN, face-to-face, drilling, and trim materials.

Selection Considerations

Prior to procurement, confirm DN, JIS 20K flanges, face-to-face length, seat/disc material, media, pressure, temperature, flow direction, and handwheel access. Standard execution is manual; no actuator is specified in the datasheet.

Standard (Options)
  • JIS
Connection (Options)
  • Flanged
Material (Options)
  • Cast Steel
Pressure Rating (Options)
  • 20K
Pattern (Options)
  • Straight Through

Description

Description

DESIGN STANDARDJIS F 7400
TEST
HYDRAULTC INSPECTION
TEST PRESSURE/MPA [kgf/cm2]BODY5.00 [51.0]
SEAT3.67 [37.4]

Specification

HANDWHEEL

Qingdao I-Flow Co., Ltd

GASKET
PACKING GLAND
STEMStainless Steel SUS403
VALVE SEATStainless Steel SCS2
DISCStainless Steel SCS2
BONNET
BODYCast Steel SC49
NO.NAME OF PART
MATERIAL

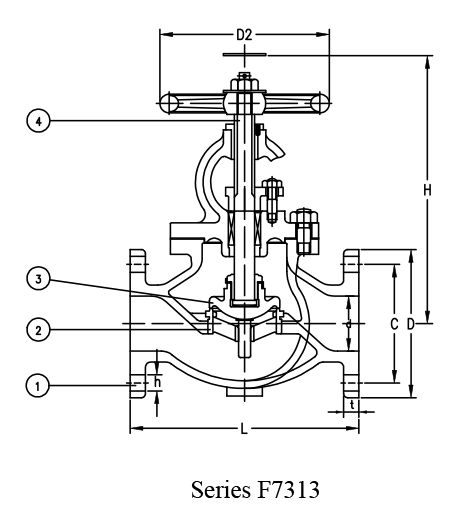

CAST STEEL GLOBE VALVE

Dimensions data(mm)

SizeLDCNo.htHD2Kg
0321901351004191827016014.4
0402001401054191819016016
0502301551208191830520021.6
0652701751408192034522430.4
0803002001608232238525043.5
1003502251858232444028062.3
1254302702258252650031594.8
150500305260122528550355132
200560350305122530630450204
250660430380122734725560336
