Globe Valve Angle Cast Steel JIS 20K - F7314

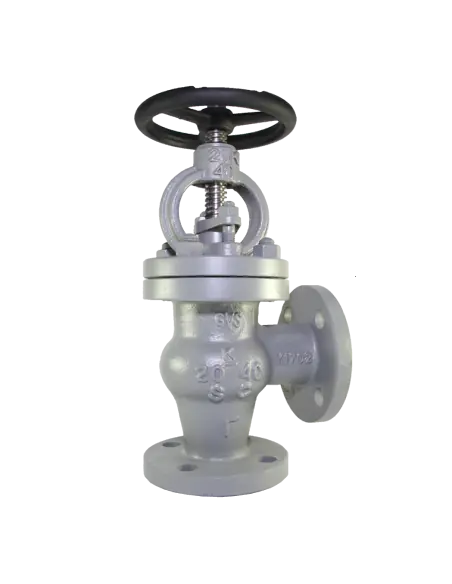

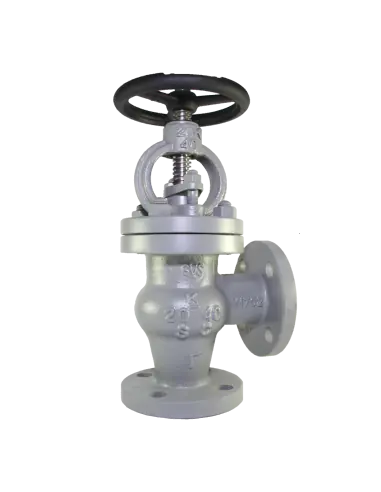

Angle Globe Valve Cast Steel JIS 20K F7314

The JIS F7314 is an angle-type globe valve constructed from cast steel, featuring JIS 20K flanged ends. It is designed for marine piping systems where a 90° change in flow direction is required, providing manual flow regulation or isolation. This model is specified as angle pattern, flanged, cast steel, with a nominal pressure rating of 20K.

Technical Specifications

  • Type: Angle globe valve
  • Standard: JIS
  • Pressure class: 20K
  • Connection: Flanged
  • Body: Cast steel SC49
  • Seat: Stainless steel SCS2
  • Disc: Stainless steel SCS2
  • Stem: Stainless steel SUS403
  • Operation: Handwheel
  • Sizes: DN32 to DN250

Test Pressures

Hydrostatic test values:

  • Body: 5.00 MPa
  • Seat: 3.67 MPa

These are factory test pressures. Continuous operating pressure must be verified against pressure-temperature ratings, media temperature, and classification society requirements.

Applications

F7314 is used in marine systems requiring steel body, stainless trim, and JIS 20K flanges:

  • Service steam lines
  • Compressed air
  • Fuel or lube oil lines
  • Feed water and auxiliary fluids
  • 90° flow direction changes upstream or downstream of equipment

F7314 vs F7313

F7313 is a straight pattern globe valve (JIS 20K). F7314 is the angle pattern version, selected for 90° piping transitions. Selection requires verification of face-to-face/height dimensions, flange drilling, flow direction, and handwheel clearance.

Selection Considerations

Before procurement, confirm DN, JIS 20K flanges, trim material, pressure, temperature, media, flow direction, weight, and certification requirements. Documentation covers manual operation only; no electric or pneumatic actuator options are specified.

Standard (Options)
  • JIS
Connection (Options)
  • Flanged
Material (Options)
  • Cast Steel
Pressure Rating (Options)
  • 20K
Pattern (Options)
  • Angle

Description

Description

DESIGN STANDARDJIS F 7400
TEST
HYDRAULTC INSPECTION
TEST PRESSURE/MPA [kgf/cm2]BODY5.00 [51.0]
SEAT3.67 [37.4]

Specification

HANDWHEEL

Qingdao I-Flow Co., Ltd

GASKET
PACKING GLAND
STEMStainless Steel SUS403
VALVE SEATStainless Steel SCS2
DISCStainless Steel SCS2
BONNET
BODYCast Steel SC49
NO.NAME OF PART
MATERIAL
CAST STEEL ANGLE VALVE

Dimensions data(mm)

SizeLDCNo.htHD2Kg
0321001351004191825016013
0401101401054191826516015.5
0501251551208191827520020
0651351751408192030522426.9
0801502001608232234925038.9
1001702251858232438528054.4
1252002702258252644031579.9
150225305260122528485355111
200280350305122530540450181
250310430380122734620560283
