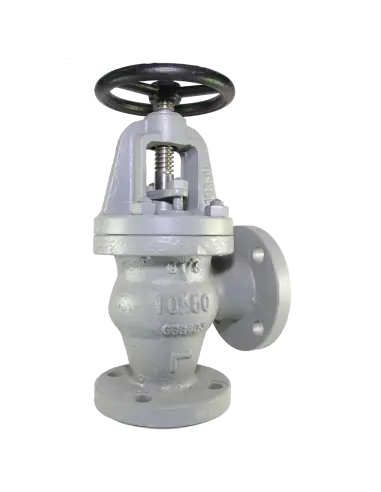

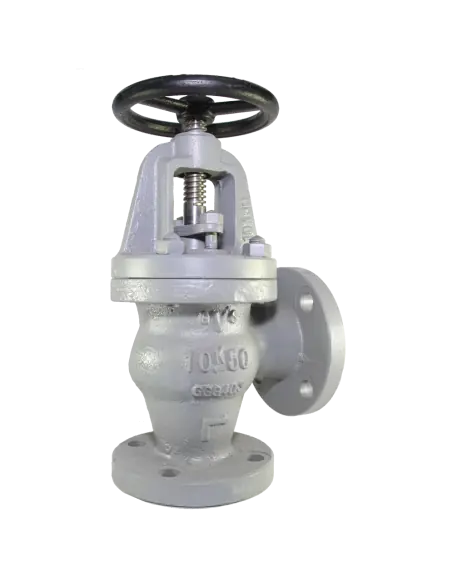

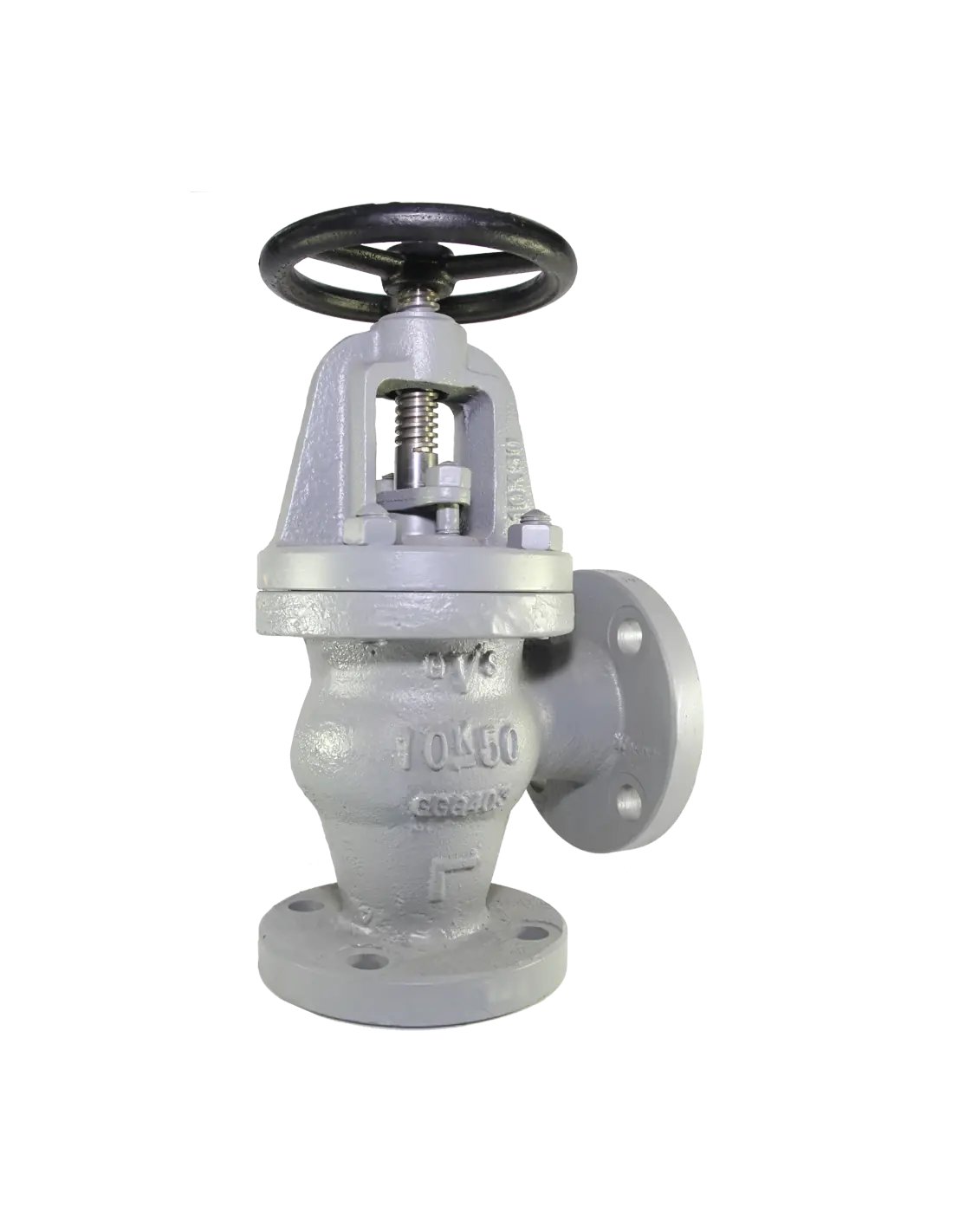

JIS F7320 Cast Steel Angle Globe Valve

The JIS F7320 is an angle globe valve constructed from cast steel SC480, designed for marine piping systems with flanged connections. Although some sources reference 20K, the product documentation specifies JIS 10K angle valve; pressure class must be verified prior to procurement or replacement.

Technical Specifications

  • Design standard: JIS F 7320-1996
  • Test standard: JIS F 7400-1996
  • Type: angle flow
  • Connection: flanged
  • Body material: cast steel SC480
  • Bonnet: SC480
  • Seat: BC6 or stainless steel 2Cr13 / SCS2
  • Disc: BC6 or stainless steel 2Cr13 / SCS2
  • Stem: C3771BD brass or SUS403
  • Packing gland: BC6 or stainless steel 2Cr13
  • Gasket: non-asbestos
  • Available DN: 50–300

Test Pressures

Hydrostatic test values for DN up to 300:

  • Body: 2.1 MPa
  • Seat: 1.54 MPa

These are test pressures, not continuous allowable working pressures. Selection requires verification of pressure-temperature rating, media compatibility, temperature, and class society requirements.

Typical Applications

  • service steam lines
  • compressed air and auxiliary gases
  • fuel or lubricating oil lines
  • service water or feed water, subject to material compatibility
  • 90° flow direction changes before/after equipment

F7320 vs F7319

F7319 is a straight pattern cast steel globe valve. F7320 is the angle pattern variant, used where 90° flow change is required. Throttling function is similar, but installation dimensions, flow direction, and handwheel access differ.

Selection Considerations

Prior to ordering, verify DN, JIS drilling, actual pressure class, L1, H dimension, trim material, media, temperature, flow direction, and certification requirements. Manual operation is standard; no electric or pneumatic actuator is specified in this documentation.

Standard (Options)
  • JIS
Connection (Options)
  • Flanged
Material (Options)
  • Cast Steel
Pressure Rating (Options)
  • 10K
Pattern (Options)
  • Angle

Description

Description

DESIGN STANDARDJIS F 7320-1996
TESTJIS F 7400-1996
HYDRAULTC INSPECTION
 TEST PRESSURE/MPABODY300 OR LESS2.1
SEAT300 OR LESS1.54

Specification

HANDWHEEL

Globe Valve Angle Cast Steel JIS 20K - F7320

GASKET non-asbestos
PACKING GLANDBronze (BC6) or Stainless Steel (2Cr13)
STEMC3771BD (Brass) or SUS403
VALVE SEATBronze BC6Stainless Steel (2Cr13, SCS2)
DISCBronze (BC6)Stainless Steel (2Cr13, SCS2)
BONNETCast Steel (SC480)
BODYCast Steel (SC480)
NO.NAME OF PART
MATERIAL
CAST STEEL10K ANGLE VALVE

Dimensions data(mm)

IMPA CODEDNL1DCNo of bolt holehtHD2Weight(kgs)
750421501201551204191624016016.3
750422651301751404191826020023
750423801401851508191826520025.3
7504241001602101758191830025037
7504251251802502108232035028057.1
7504261502052802408232240031577.2
750427200230330290122322480355116
750428250290400355122524535400188
750429300320445400162524610450256

Certifications
