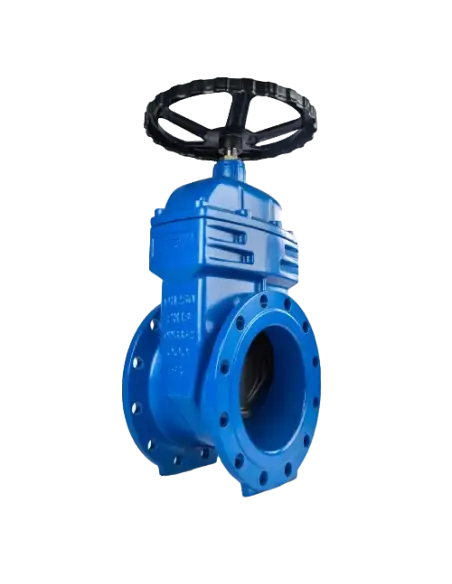

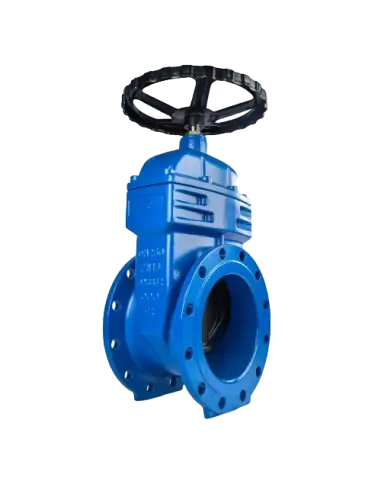

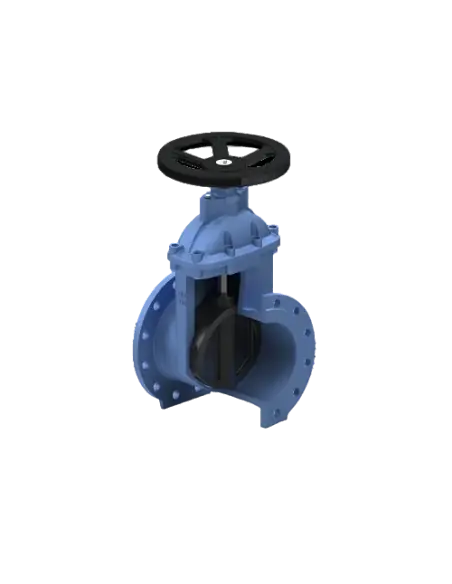

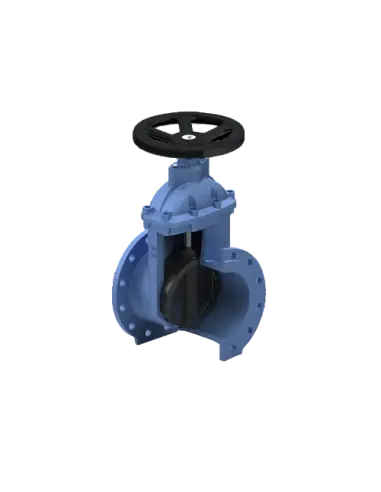

Gate valve - SHIGATE | TTV Valves: Reliable Flow Control for Industrial Needs

The Gate valve - SHIGATE | TTV Valves is designed to offer smooth, dependable flow control in demanding industrial environments. Built with top-grade materials, this gate valve guarantees strength and long-term durability, making it a trusted choice for those who need reliable performance every day.

Key Features & Benefits of the Gate valve - SHIGATE | TTV Valves

  • Precise On/Off Control: The SHIGATE valve delivers accurate shut-off capability, letting users easily stop and start fluid flow exactly when needed.
  • Leak-Resistant Seal: Advanced sealing mechanisms prevent leaks and keep operations safe, reducing maintenance and avoiding unwanted downtime.
  • Easy Operation: The user-friendly design means simple handle movements control large flows, so even less experienced staff can operate it confidently.
  • Durable Construction: Crafted with wear-resistant materials, the SHIGATE valve stands up to heavy use, high pressure, and a range of liquids, ensuring stability and reliability in harsh industrial settings.
  • Wide Compatibility: Suitable for a broad range of piping systems and industrial applications, making it a flexible choice for many businesses.
  • Minimal Pressure Drop: The valve’s straight-through design allows fluids to flow freely, maintaining system efficiency and reducing energy costs.

The Gate valve - SHIGATE | TTV Valves is engineered for industries that can't afford delays or failures, such as water treatment, power plants, mining, and chemical processing. With straightforward installation and little maintenance required, it helps keep your operations running smoothly and efficiently.

If you’re searching for a tough, high-performing valve that delivers every time, the SHIGATE gate valve from TTV Valves is your answer. Count on it for excellent flow control, peace of mind, and long service life.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • EN-GJS-400-15 (Nodular Cast Iron)
Pressure Rating (Options)
  • PN 10
  • PN 16

Description

Manufacturing range: DN50 - DN300

Distance between faces: DIN 3202 / F4 - F5

Mounting between flanges: PN10/16/ - ANSI150 Lbs.

Flanges: ISO 7005-1/2 - DIN 2501 PN10/16 - ANSI Class 150: ANSI B16.5

Evidence: ISO 5208, API598, EN 12266, ANSI/ASME B16.34, BS 1560, EN 593

Finish: Epoxy®

Work pressure: Up to 16 bar.

Characteristics

  • Body, cover and disc in GJS400-15 nodular cast iron.
  • Longer useful life
  • Complete tightness. Class VI - ISO 5208 (Rate A)
  • Self-sealing mechanism that guarantees a tight seal and low torque.
  • Vulcanized rubber butterfly
  • Body and lid coated with epoxy 250 microns thick both exterior and interior
  • High performance.
  • Working temperature up to 120 ºC.
  • Easy on-site maintenance.
  • Operation with steering wheel control.
  • PED 2014/68.
  • ATEX 2014/34/EU - ATEX II 2GDc.
  • SIL IFC 61508.
  • TA-LUFT VD 2440 ISO 15848 design.
  • WRAS approval.

General Applications

  • Sweet water
  • Seawater
  • Hot water
  • sewage water
  • Air
  • Compressed air
  • Refrigeration
  • Ozone
  • Metallurgy
  • Power plants
