Gate valve - Fig. 90 | Comeval

Enhance Industrial Flow Control with Gate valve - Fig. 90 | Comeval

The Gate valve - Fig. 90 | Comeval is designed to set a new standard in industrial flow management, delivering unmatched reliability and performance for your critical operations. Engineered for durability and seamless operation, this gate valve is the perfect choice for professionals seeking robust solutions in demanding industrial environments.

Features & Benefits of Gate valve - Fig. 90 | Comeval

  • Precision Control: The valve ensures precise shut-off and flow regulation. Its classic wedge design provides tight sealing, reducing the risk of leaks even under high pressure.
  • Built to Last: Manufactured from premium materials, this gate valve withstands corrosion and wear. It maintains strong performance over time, minimizing the need for replacements and reducing maintenance costs.
  • Simple Operation: Easy to use with a reliable handwheel mechanism, the valve opens and closes smoothly, making it convenient for any operator, regardless of experience level.
  • Versatile Application: Suitable for water, steam, gas, and a wide range of industrial fluids. The Gate valve - Fig. 90 | Comeval adapts effortlessly to different system requirements.
  • Leak Prevention: The advanced sealing technology prevents unwanted leaks, protecting your facility and reducing down time associated with repairs.
  • Easy Installation: Designed for straightforward integration into existing systems, it saves both time and effort during setup.

Whether managing high-pressure pipelines or optimizing daily process flows, the Gate valve - Fig. 90 | Comeval delivers reliability you can trust. Its robust design supports consistent, trouble-free operation even in challenging conditions. Improve your facility’s efficiency and safety with this dependable flow control solution.

Description

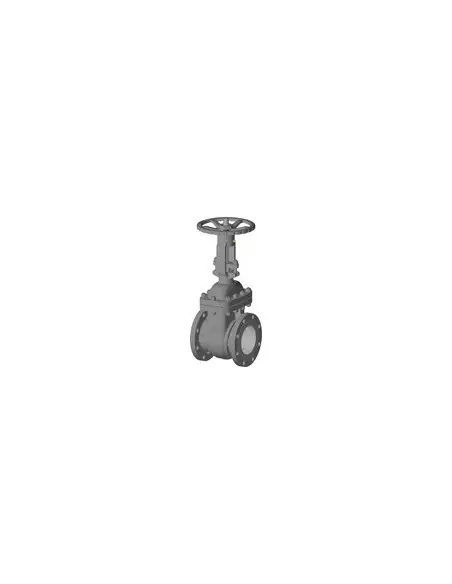

Metal seated gate valves, bidirectional, for stopping the flow in process, power and oil&gas applications. The atmospheric sealing is achieved by flexible graphite rings or by bellows. Operated by handwheel, gear or actuator.

Specification of the range:

Several design combinations by configuration, materials of construction and trims, end connections (flanged, BW, SW, threads), nominal size range (DN50-DN1200 / 2-48"), design pressure range (PN16-420 / ANSI Class 150-2500), as well as operation style and accessories.

Other typical denominations:

Applications: HVAC, lubrication, steam, gases, compressed air, process, HTF, etc.

Certifications: Comeval ped module h certificate of conformity, Eac certification 032, Eac declaration 010, Eac declaration 032, Gate valves declaration of conformity, Gate valves declaration of conformity atex

Certificates
