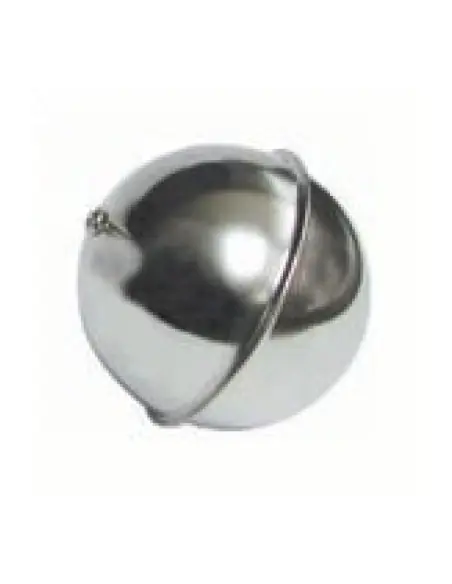

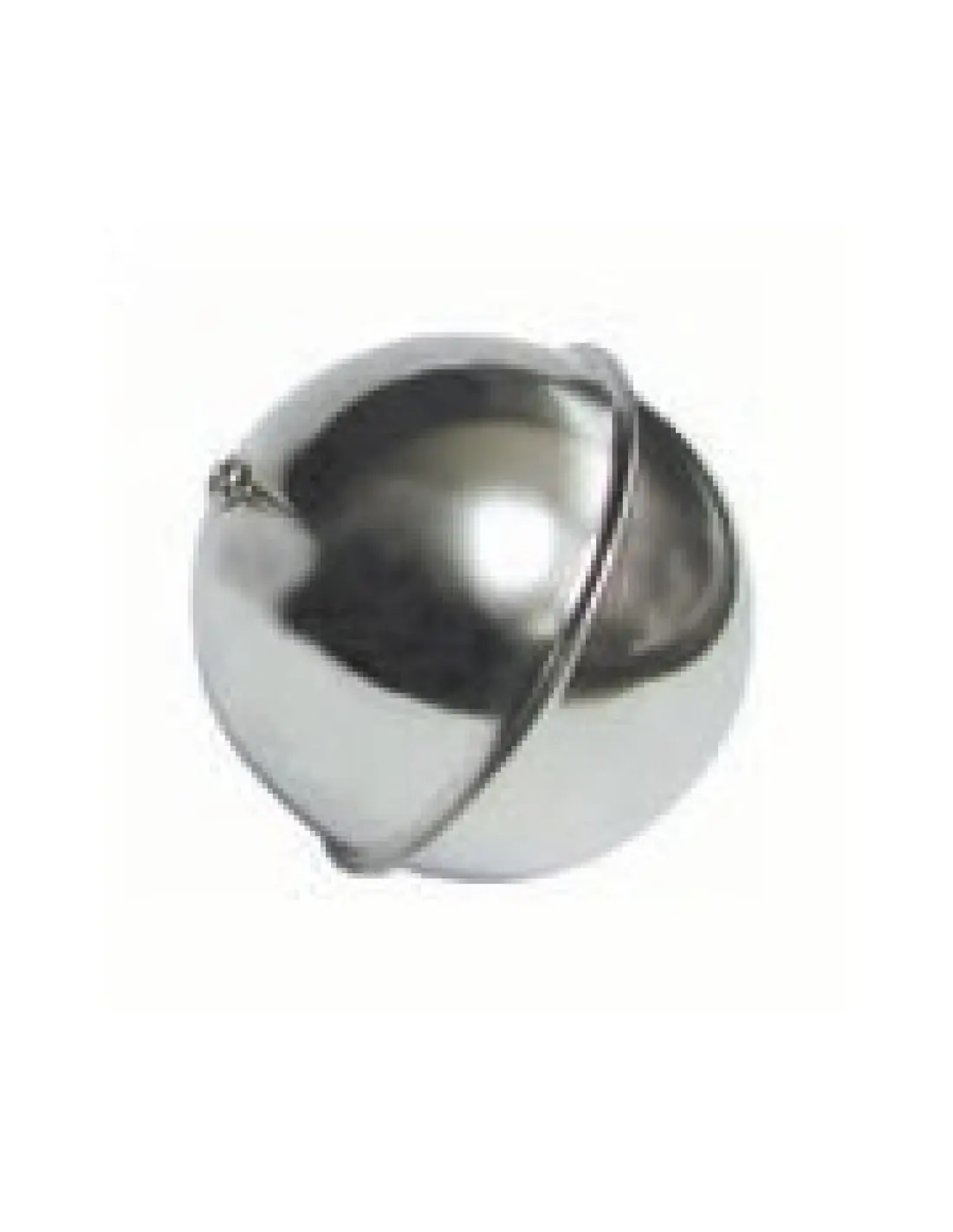

The Genebre 2852 is a float component designed for Genebre float valves 2856 and 2856N. It is not a standalone valve; it serves as the buoyancy element that transmits level changes to the float valve lever. The technical datasheet specifies AISI 316 polished stainless steel, suitable for continuous immersion in process liquids. This material selection ensures compatibility with potable water, process water, and various industrial fluids, subject to AISI 316 corrosion resistance.
Float diameter selection is determined by the valve type. According to the datasheet: 2856 03 uses Ø90 mm, 2856 05–07 use Ø160 mm, 2856 08–10 use Ø200 mm, 2856 11 uses Ø320 mm, and 2856 12 uses Ø400 mm. Float size affects available buoyancy and closing force at the silicone seat.
Prior to specification, verify:
Used in clean water tanks, potable water reservoirs, process water systems, and auxiliary industrial circuits where Genebre 2856/2856N float valves are specified for mechanical level control without electrical sensors.
Can this float be installed on any float valve?
No. Mechanical connection (M6–M16) and required buoyancy must match the valve type.
What is checked during maintenance?
Inspect for deformation, corrosion, thread loosening, and ensure free movement without tank wall interference.
Reference: 2852
| Reference | Size | Minimum purchase unit | Weight (Kg) | Box / carton |
| 2852 060 | BUOY FLOATING VALVE Ø60mm | 1 | 0.062 | 1/24 |
| 2852 090 | BUOY FLOATING VALVE Ã90mm | 1 | 0.15 | 1/30 |
| 2852 110 | BUOY FLOATING VALVE Ø110mm | 1 | 0.151 | 1/27 |
| 2852 160 | BUOY FLOATING VALVE Ø160mm | 1 | 0.394 | 1/12 |
| 2852 200 | BUOY FLOATING VALVE Ø200mm | 1 | 0.803 | 1/8 |
| 2852 320 | BUOY FLOATING VALVE 320mm M16 | 1 | 3.271 | 1/1 |
| 2852 400 | BUOY FOR FLOATING VALVE | 1 | 4.761 | 1/1 |
