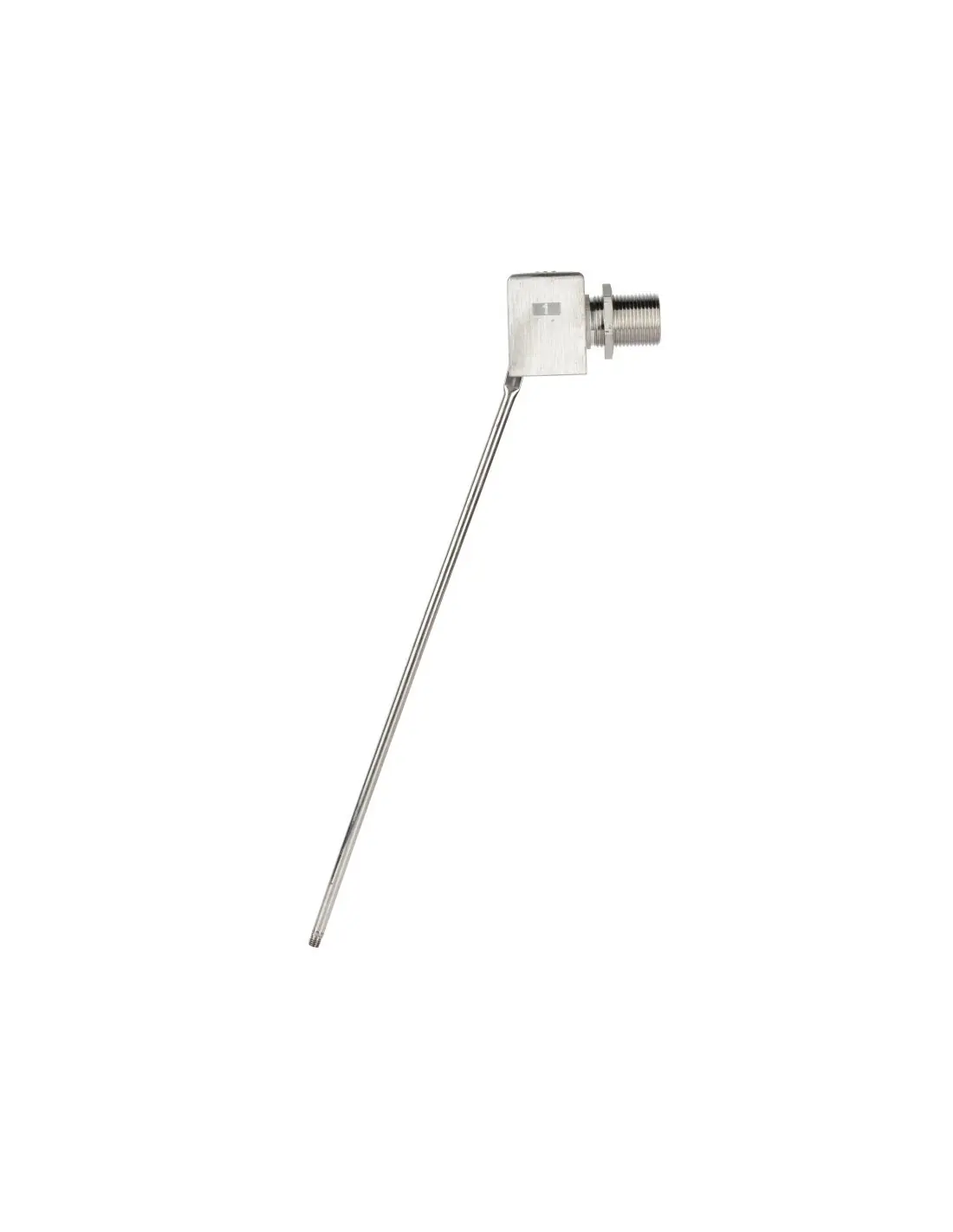

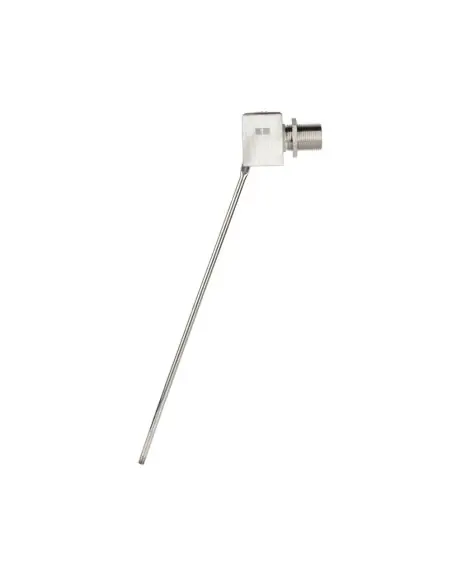

Genebre Float Valve Type 2856

The Genebre 2856 is a mechanical float valve constructed from AISI 316 stainless steel, designed for level control in water storage tanks. Flow is mechanically shut off via the float and lever arm, without the use of electrical sensors, PLCs, or actuators. The technical datasheet specifies WRAS approval for potable water applications.

Technical Specifications

Body material: AISI 316 stainless steel
Seat sealing: silicone
Max operating pressure: 10 bar
Max operating temperature: 150 °C
DN 10–DN 65: threaded connection ISO 228-1
DN 80–DN 100: flanged connection EN 1092 PN 10/16
Full port construction
Replaceable seat: JS2856

Dimensions and Flow Rates

Available sizes range from 3/8" to 4" (DN 10 to DN 100). Manufacturer flow tables specify l/h at 1–10 bar differential pressure. For reference, the 2856 04 1/2" delivers 2,829–8,938 l/h, while the 2856 12 4" delivers 92,231–291,714 l/h, depending on pressure differential.

Suitable Media and Applications

Primary use is for filling and level control in clean or potable water tanks. For process water or chemically affected liquids, compatibility with AISI 316 and silicone must be verified.

Typical applications:

potable water storage tanks
industrial auxiliary water tanks
tank filling without electrical automation
applications requiring stainless float valves over brass

Selection and Maintenance

Selection is based on DN, available pressure, required filling flow, float diameter, and available movement space. The silicone seat is critical for tightness and should be inspected in water with salts, suspended solids, or scaling risk.

FAQ

When to select threaded vs flanged version?
Threaded connections are used up to DN 65. For DN 80 and DN 100, the series uses EN 1092 PN 10/16 flanges.

Is the float always included?
The 2856 valve is combined with Genebre 2852 floats, with float diameters from 90 to 400 mm depending on DN.

Datasheet and documents

Description

Constr. stainless steel AISI 316. Silicone sealing. Max. pressure: 10 BAR.

Connection DN10 - DN65 gas ISO 228/1 thread

DN80 - DN100 flange DIN 2576 PN 10/16

Reference: 2856

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2856 03	V. FLOTADOR S/ BOYA	1	0.2	1/20
2856 04	FLOATING V. WITHOUT BUOY 1/2"	1	0.325	1/52
2856 05	FLOATING V. WITHOUT BUOY 3/4"	1	0.567	1/26
2856 06	FLOATING V. WITHOUT BUOY 1"	1	0.62	1/15
2856 07	FLOATING V.WITHOUT BUOY 1 1/4"	1	0.76	1/10
2856 08	FLOATING V.WITHOUT BUOY 1 1/2"	1	2.673	1/8
2856 09	FLOATING V. WITHOUT BUOY 2"	1	3.008	1/6
2856 10	FLOATING V.WITHOUT BUOY 2 1/2"	1	3.525	1/6
2856 11	FLOATING V. WITHOUT BUOY 3"	1	15.53	1/1
2856 12	FLOATING V. WITHOUT BUOY 4"	1	15.927	1/1
