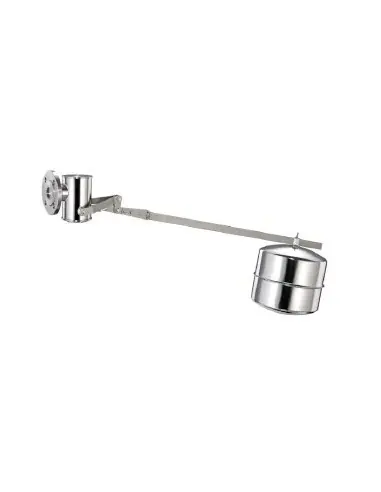

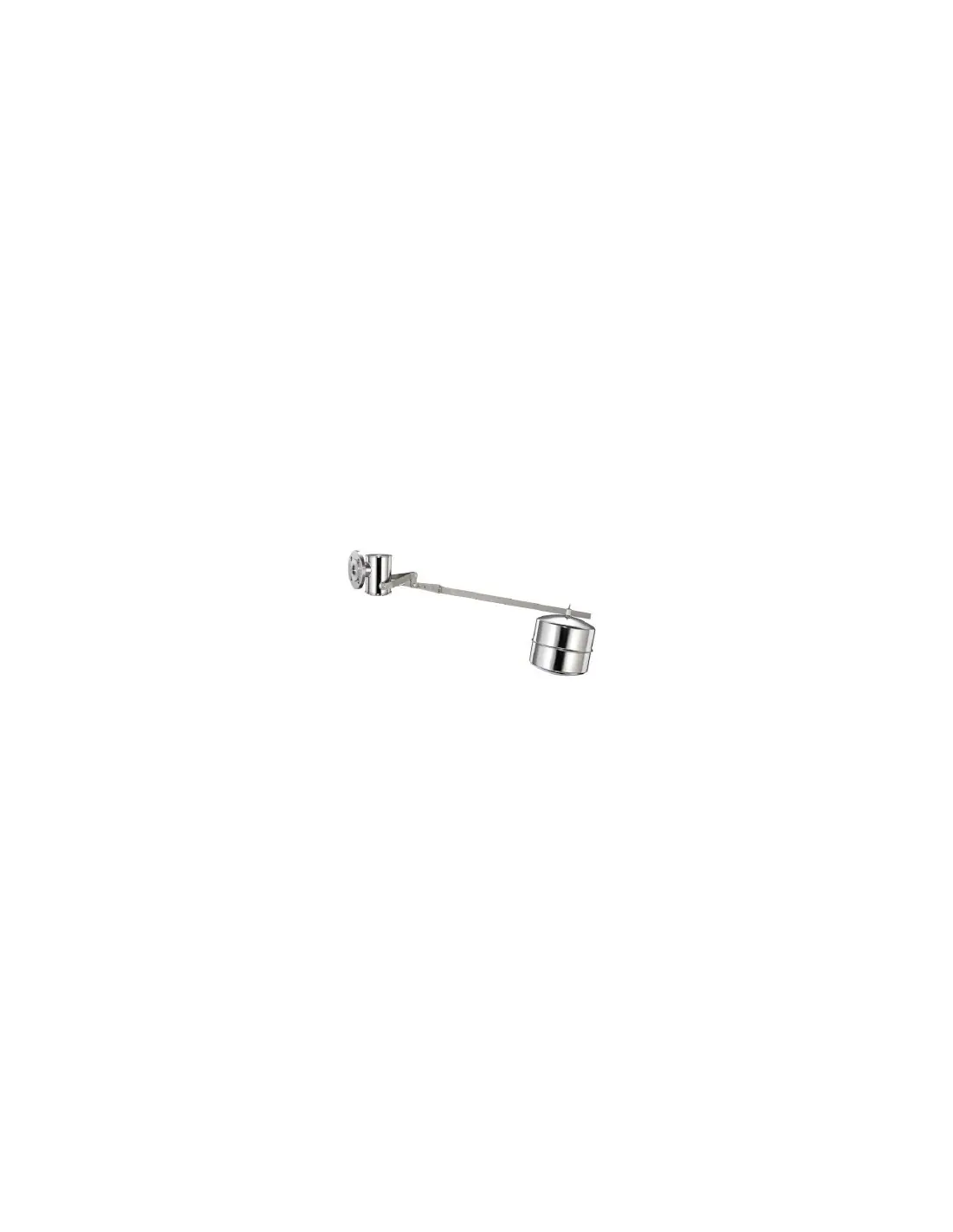

The ESV 80 F/G is a mechanical float-operated level control valve designed for tank filling and local level regulation in industrial fluid systems. Adjustment is achieved by repositioning the float on the lever arm or via a level adjustment mechanism. No electrical actuator is required. The F/G variant features a flanged inlet and a male threaded outlet.
Applicable for water, aggressive liquids, air, and gases. For chemical or treated water, compatibility with FPM and stainless steel 1.4404/1.4571 must be verified.
The F/G version is selected when the supply line requires a flanged connection, but the outlet to the tank or piping can be threaded. Compared to F/F, it offers reduced weight for the same diameters. Compared to G/G, it is limited to DN 40–DN 80 and retains a flanged inlet.
The seat can be replaced without valve disassembly. Selection should consider available pressure, required flow, pipe diameter, media density, float movement clearance, and potential for seat fouling.
Is electrical signal required?
No. Operation is mechanical via float movement.
Manufacturer certification?
Berluto is ISO 9001:2015 certified for development, production, and distribution. CE/PED or other certifications must be confirmed per part number and application.

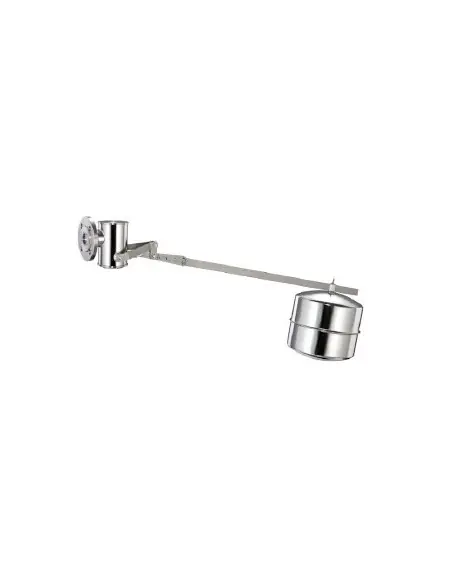

ESV F/G
Float valves of this series are ideal for filling medium to large storage tanks or for level control. A desired liquid level can be precisely adjusted by moving the float. The valves have a high flow rate and are particularly suitable for aggressive waters and other aggressive liquids. ESV valves are also suitable for use as pipeline valves.
Nominal size DN 40 up to DN 80
Inlet pressure up to 12 bar
Kvs value 13.6 - 47 m³/h
Temperature range up to 190°C
Technical data
CE-certification according to the European Pressure Equipment Directive is mandatory for numerous products and delivery areas. Other certificates, however, are certificates of individual quality, such as DVGW and DIN EN ISO 9001, which stands for the internal quality management system with its extensive functional and performance checks. The particularly strict regulations of the national rules and regulations guarantee the highest possible safety - especially when it comes to the reliability in your plant.
