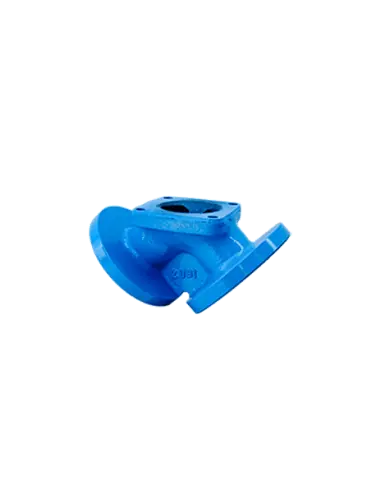

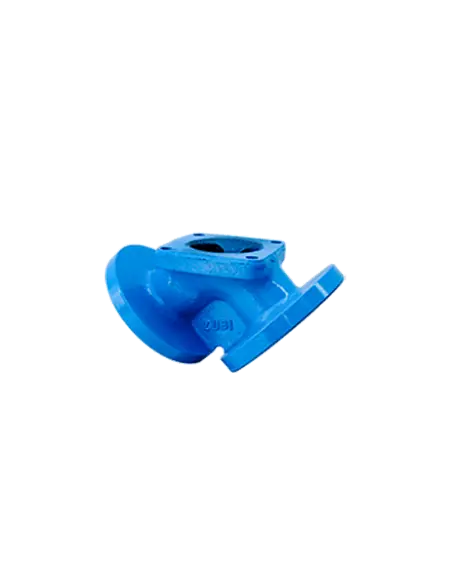

Diaphragm valve - T100E | Zubi

Reliable Control for Industry: Discover the Diaphragm valve - T100E | Zubi

Ensure smooth operation and unmatched reliability in your pipeline systems with the Diaphragm valve - T100E | Zubi. Designed specifically for industrial use, this valve offers precision, durability, and adaptability for various applications. With its advanced engineering, it’s the smart choice for anyone seeking dependable flow control, even in demanding environments.

Features & Benefits of the Diaphragm valve - T100E | Zubi

  • Accurate Flow Regulation: The T100E lets you manage fluids with ease, providing excellent flow control. This means more efficient processes and less downtime.
  • Leak-Proof Design: Its diaphragm mechanism ensures tight sealing, greatly reducing the risk of leaks and contamination. This feature protects your system and the environment.
  • Maintenance-Friendly: Cleaning and servicing the valve is simple, thanks to its accessible design. Less time spent on repairs translates to higher productivity for your business.
  • Built for Tough Conditions: Constructed from robust materials, the T100E withstands corrosive and abrasive media, giving it a long operational life and reliable performance, even under pressure.
  • Versatile Application: Suitable for various industries, from chemical processing to water treatment, the T100E adapts to your needs whether you’re handling liquids or gases.
  • Safe and Hygienic: The valve’s internal components are designed to minimize dead zones, making it ideal where cleanliness is essential.

The Diaphragm valve - T100E | Zubi stands out thanks to its smart construction and user-friendly operation. By using a flexible diaphragm, the valve opens and closes flow passages smoothly, avoiding blockages or build-up inside the valve body. This keeps your system running cleanly and efficiently over time.

Its ergonomic handwheel allows for comfortable manual operation, so you can make adjustments quickly and accurately. Installation is straightforward, fitting seamlessly into most industrial pipelines without complicated setup.

For those who value safety, reliability, and longevity in industrial flow control, the Diaphragm valve - T100E | Zubi is a trusted solution. It’s engineered to help you maintain control over your processes, maximize your investment, and reduce long-term operating costs—all with simplicity in mind.

Description

Main Features

  • Monoblock body, one piece cast.
  • 100% leak tightness performance guaranteed.
  • The valve can be installed in any position.
  • High strength woven Diaphragm reinforced design.
  • Bolted bonnet design.
  • Internal rubber and PTFE based lined and unlined options.
  • Easy maintenance: Three part design (Body, diaphragm and actuator) allows maintenance and actuator retrofitting without removing the valve body from the pipeline.
  • Bidirectional shut off design.

DIRECTIVAS

  • DIR 2006/42/CE (machinery)
  • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
  • DIR 2014/34/EU (ATEX) Area 2&22

Technical Data

FLANGE CONNECTION

  • PN6/PN10/PN16/PN25/PN40
  • ANSI125/150
  • BST E / BST D
  • JIS 5K JIS10K
  • AS-2129-D/E

SIZES & PRESSURES

  • Manual valves:
  • DN15 to DN150: 10 bar

For actuated valves, please refer to the appropriate datasheets.

TIGHTNESS

  • Watertight

MATERIALS

BODY  GG25, GGG50, A216 WCB, CF8 (AISI304), CF8M (AISI316), CF3M (AISI316L), CN7M (CARPENTER20),RG7 (BRONZE), 254SMO, 654SMO, AISI310, AISI904, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti.

LINING HARD RUBBER/EBONITE, ANTIABRASIVE NATURAL RUBBER, NEOPRENE, BUTYL, NITRILE (NBR), HYPALON, HALAR (ECTFE), RILSAN (POLIAMIDE).

DIAPHRAGM

  • Butyl (BU) Blue
  • Aliment butyl (BUA)
  • Reinforced butyl (BUR)
  • Natural rubber (BL) White
  • Natural aliment rubber (BLA)
  • EPDM (EP)
  • Hypalon (HY) Green
  • Neoprene (NE) Red
  • Nitrile (NI) Yellow
  • Silicone (SI)
  • PTFE (TE)
  • Viton (VI) Orange

*The abbreviations or the identification colours are in the flap of the diaphragm. *The pneumatic actuator diaphragm made in Natural rubber (BL).

BONNET GG25 Others on request.

ACTUATORS

Manual, air open actuator, air to close actuator, double acting actuator, electric, gear box.

ACCESSORIES AND OPTIONS

Position indicators, switches, solenoid valves, padlocks, mechanical limit switches, positioner 4/20mA.
