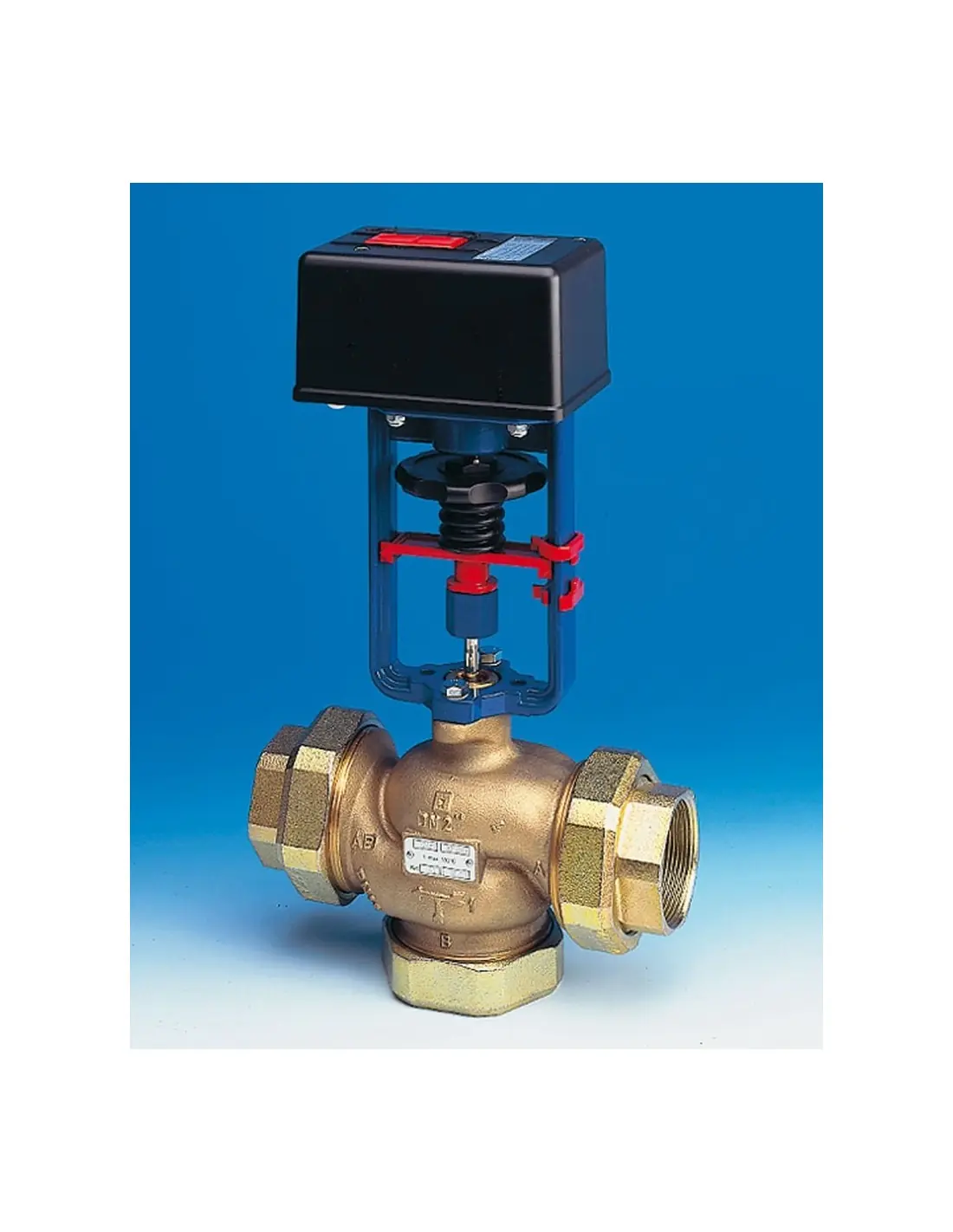

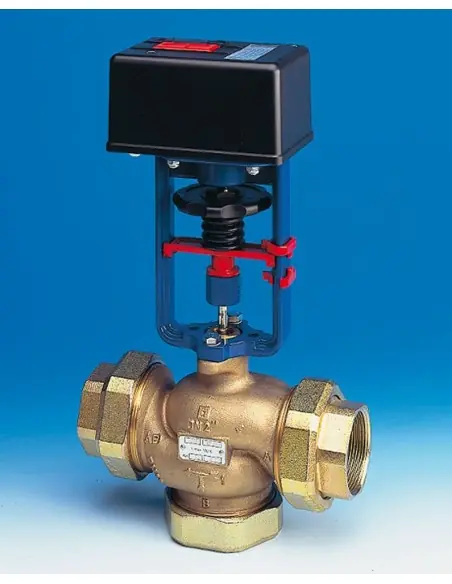

Type : 72.492
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
  • Threaded Joint
Material (Options)
  • CC499K
Pressure Rating (Options)
  • PN 16
Flow (Options)
  • Straight Way
  • Mixing
Actuator (Options)
  • Electric

Datasheet and documents

Description

✅ Available in three-way and straight-through configurations
✅ Compact design for HVAC applications
✅ Electric actuators with manual override and additional control options
✅ Multiple plug designs for optimized flow control
✅ Leakage class compliance per DIN EN 60534-4 and ANSI standards
✅ Various material options for enhanced durability


Technical Specifications

Valve Types & Configurations

  1. ARI-STEVI® H 491 / 492 – Compact control valves for heating, ventilation, and air conditioning (HVAC)

    • Fig. 491 – Three-way valve (mixing function)
    • Fig. 492 – Straight-through valve

  2. ARI-STEVI® H 485 / 486 / 487 / 488 – High-performance control valves for larger HVAC systems

    • Fig. 485 – Three-way valve with flanged connections
    • Fig. 486 – Straight-through valve with flanged connections
    • Fig. 487 – Three-way valve with threaded connections
    • Fig. 488 – Straight-through valve with threaded connections


Material Options & Pressure Ratings

Figure Nominal Pressure Material Nominal Diameter (DN) Temperature Range
H 491 / H 492 PN16 CC499K (CuSn5Zn5Pb5-C) DN15-50 0°C to +120°C
H 487 / H 488 PN16 CC499K (CuSn5Zn5Pb5-C) DN15-50 0°C to +130°C
H 485 / H 486 PN16 EN-JL1040 DN15-100 0°C to +130°C
H 485 / H 486 PN16 EN-JL1040 DN125-150 0°C to +130°C
H 485 PN16 EN-JL1040 DN200-250 0°C to +130°C

Other materials and custom versions are available upon request.


Plug Designs & Flow Performance

  • Parabolic plug with metal seat (standard) – Leakage Class IV (DIN EN 60534-4)
  • V-port plug with metal seat – Improved flow characteristics
  • EPDM-sealed plug (optional) – For applications requiring soft sealing
  • Flow characteristic: Equal percentage (DN15-32) / Linear (DN40-50)
DN (Size) Kvs Value (m³/h)
DN15 2.5
DN20 6.3
DN25 10
DN32 16
DN40 25
DN50 35
DN65 63
DN80 100
DN100 160
DN125 220
DN150 320
DN200 630
DN250 1000

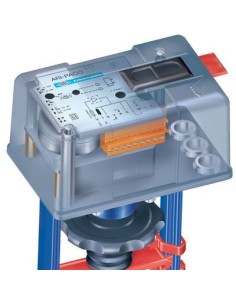

Electric Actuators

The ARI-STEVI® H series control valves are equipped with electric actuators to allow precise modulation.

Actuator Options

  1. ARI-PACO 0.85kN / 1.6kN

    • Supply voltage: 24V/50Hz, 24/230V AC
    • Input signal: 0-10V, 3-step control
    • Handwheel & travel indicator included
    • Additional devices available (e.g., potentiometer)

  2. ARI-PREMIO 2.2-15kN / PREMIO-Plus 2G

    • Enclosure: IP65
    • Supply voltage: 24V AC/DC, 90-264V AC
    • Optional input signal:
      • 3-point control (12-250V AC/DC)
      • 0-10V
      • 4-20mA
    • Torque switches and manual override included


Closing Pressures & Operating Limits

Actuator Max Differential Pressure (bar) Closing Pressure (bar) Operating Speed (mm/s)
ARI-PACO 0.85kN 1.0 - 1.5 12.1 - 0.7 0.045
ARI-PACO 2G 1.6kN 1.5 - 2.0 16 - 2.6 0.11
ARI-PREMIO 2.2kN 3.3 - 2.1 3.3 - 0.7 0.38
ARI-PREMIO 5kN 4.2 - 2.7 3.3 - 2.2 0.38

Tests and Certification

DGRL 2014/68/EU (PED Pressure Equipment Directive)
